56
HCD-GN800

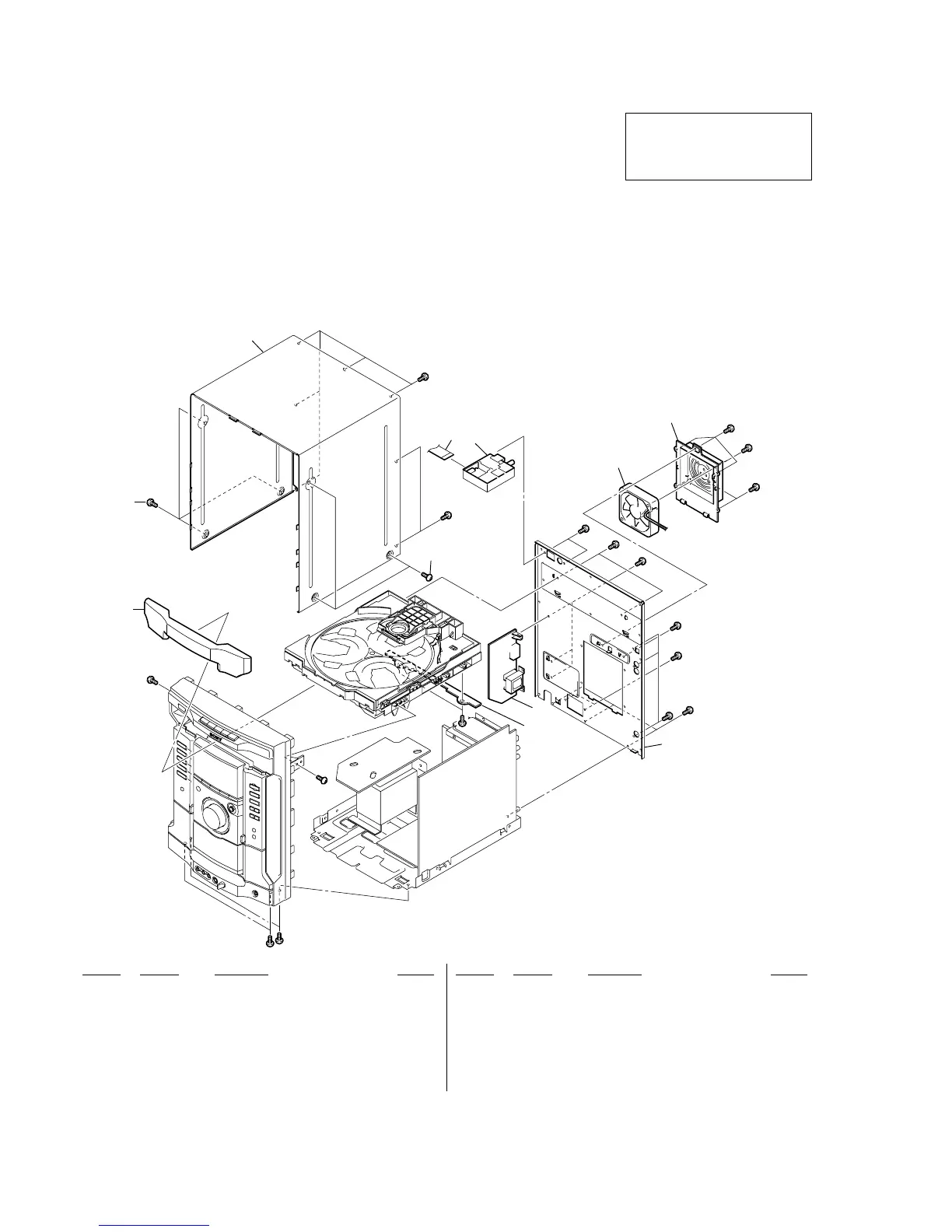

8-1. CASE, REAR PANEL SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
• Abbreviation
AR : Argentine model
E2 : 120 V AC Area in E model
E3 : 240 V AC Area in E model
MX : Mexican model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-244-102-21 LOADING (PANEL)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-231-828-31 CASE
4 A-4731-346-A SUB TRANS BOARD, COMPLETE (E2,E3,E51)
4 A-4734-905-A SUB TRANS BOARD, COMPLETE (MX)
4 A-4747-608-A SUB TRANS BOARD, COMPLETE (AR)
5 1-920-838-32 WIRE (FLAT TYPE) (11 CORE)
6 1-693-603-11 TUNER (FM/AM)
M891 1-763-072-11 FAN, DC
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-871-09 SCREW +BVTT 3X6 (S)
1
M891
not
supplied
not
supplied
not
supplied
2
3
4
5
6
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#2
#
To Next Page
