Sony HCD-GN800 - CD Board and CD Block Assy Removal

14
HCD-GN800

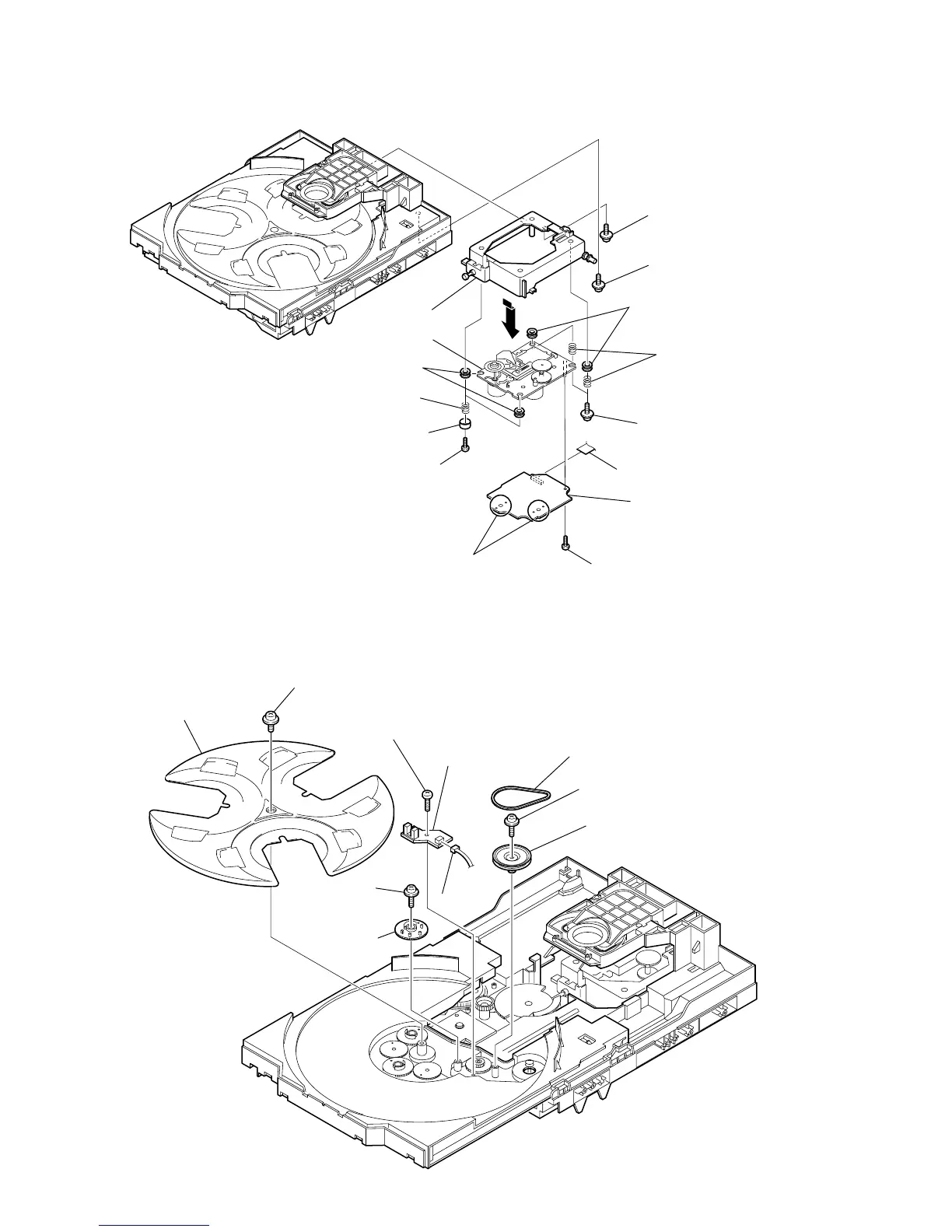

3-13. CD BOARD, CD BLOCK ASSY
3-14. SENSOR BOARD
qa
5
Two coil springs
(insulator)
9 Two coil springs
(insulator)
6 Two insulators
0 Two insulators
qs Screw (+BTP 2.6x 8)
7 Two screws
(BVTT M2.6)
2 Holder (213) ASSY
8 Two stoppers (BU)
qd Remove the four solderings of motor.
qf CN708 (flat type)
qg CD board
qh CD block ASSY
3 Floating screw
(+PTPWH M2.6)
1 Floating screw
(+PTPWH M2.6)
4 Two floating screws
(+PTPWH M2.6)
2 Tray
3 Belt (table)
5 Pulley (table)
8 Screw
(+BTTP (M2.6))
9 SENSOR board
7 Gear (geneva)
0 CN731
1 Floating screw
(+PTPWH M2.6)
6 Floating screw
(+PTPWH M2.6)
4 Foating screw
(+PTPWH M2.6)
