Sony HCD-GN800 - Chassis Section

58
HCD-GN800

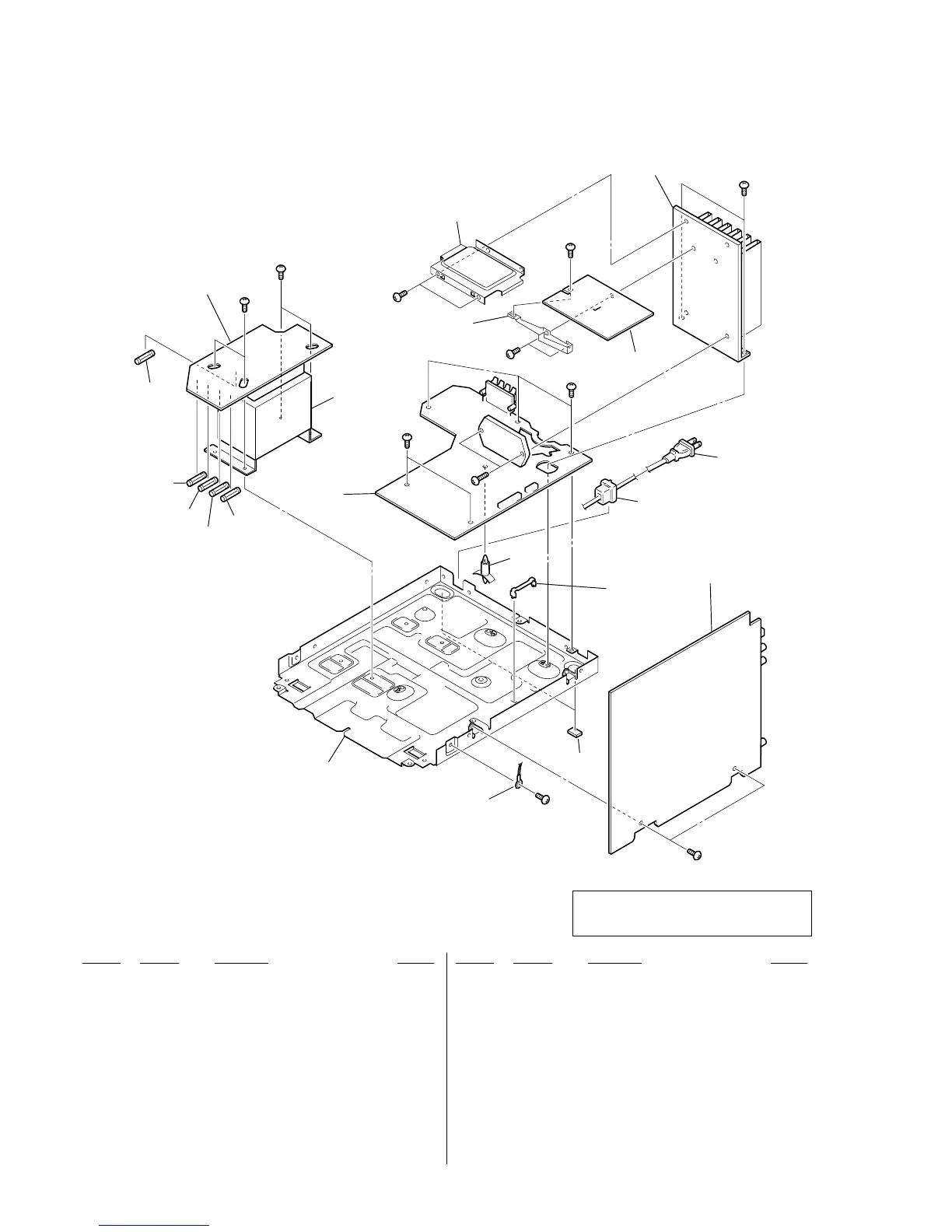

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101 1-686-930-11 TRANS BOARD
102 A-4731-367-A SUBWOOFER BOARD, COMPLETE
0 103 1-777-071-53 CORD, POWER (E51)
0 103 1-783-941-12 CORD, POWER (AR)
0 103 1-791-901-12 CORD, POWER (E2,E3,MX)
* 104 3-703-244-00 BUSHING (2104), CORD (AR,E5)
104 3-703-571-11 BUSHING (S) (4516), CORD (E2,E3,MX)
105 A-4731-334-A MAIN BOARD, COMPLETE (AR,E2,E51,MX)
105 A-4733-075-A MAIN BOARD, COMPLETE (E3)
107 A-4731-364-A POWER AMP BOARD, COMPLETE
108 4-943-687-01 HOLDER, PC BOARD
* 109 4-988-533-01 HOLDER, PWB
0 F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V)
0 F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V)
0 F976 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V)
0 F977 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V)
0 F978 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (T4AL 250V)
0 T910 1-439-557-11 POWER TRANSFORMER
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
102
107
108
103
104
105
109
106
101
not
supplied
not
supplied
not
supplied
not
supplied
F976
T910
F977
F975
F978
F974
not
supplied
#5
#5
#1
#1
#3
#1
#1
#1
#3
#1
#1
