Sony HCD-GN88D - Disassembly Steps: Boards (Back Panel, Main)

12
HCD-GN88D

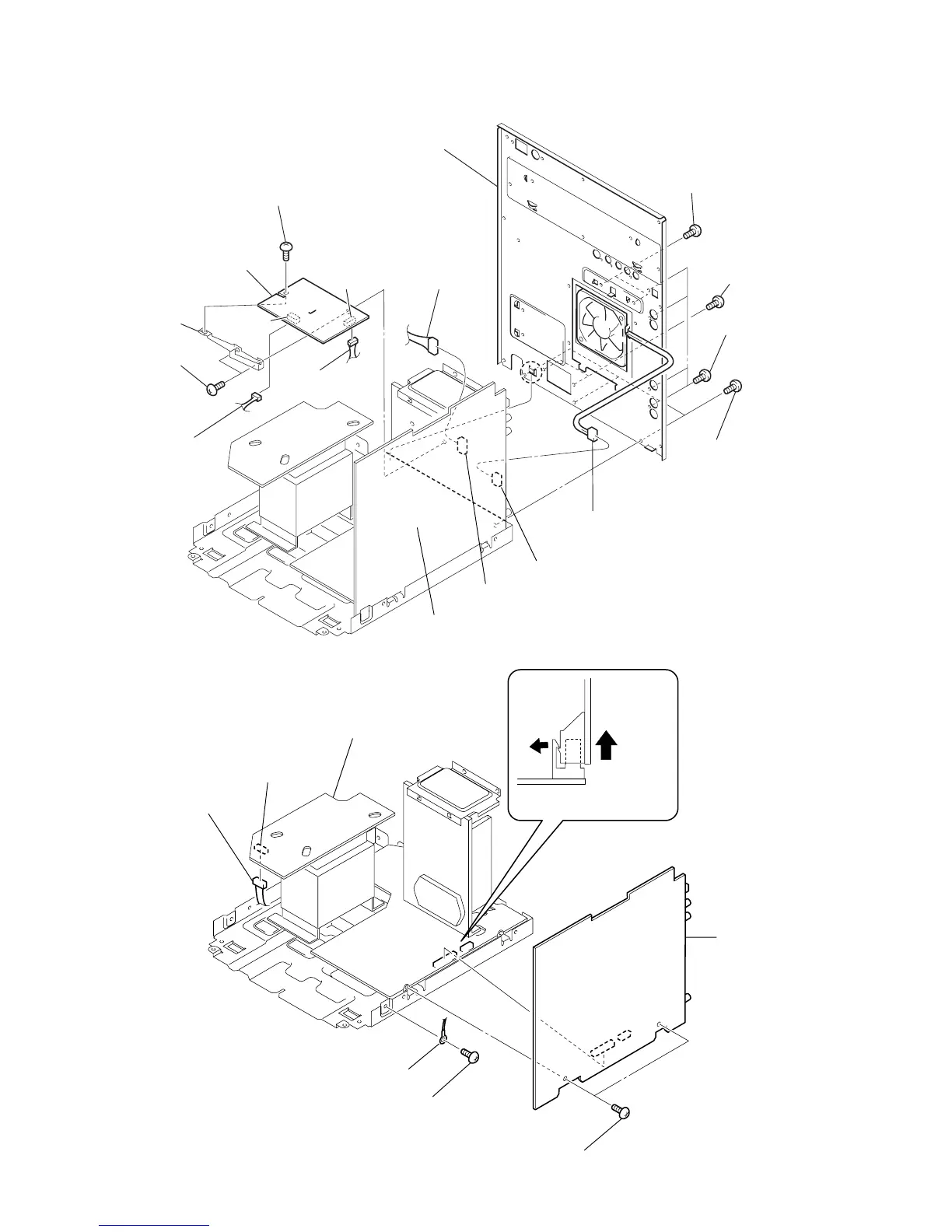

3-9. BACK PANEL, SUBWOOFER BOARD
3-10. MAIN BOARD
3 Four screws
(+BVTP3 x 10)
2 Two screws
(+BVTP3 x 10)
1 Two screws
(+BVTT3 x 6)
4 Three screws
(+BVTP3 x 10)
5 Connector
CN851
MAIN board
6 Back panel
with fan
qa Screw
(+BVTP3 x 10)
7 Connector
9 Connector
CN303
CN304
8 Connector
qd SURROUND board
qs Bracket (IC)
q; Two screws
(+BVTP3 x 16)
CN205
3 Tw o screws
(+BVTP3 x 10)
2 Screw
(+BVTP3 x 10)
1 Connector
6 MAIN board
MAIN board
(CN901, 902)
POWER AMP board
(CN503, 504)
Lug
5
4
CN998
TRAN board
