Sony HCD-GN88D - Printed Wiring Board - RF Board

HCD-GN88D
3232

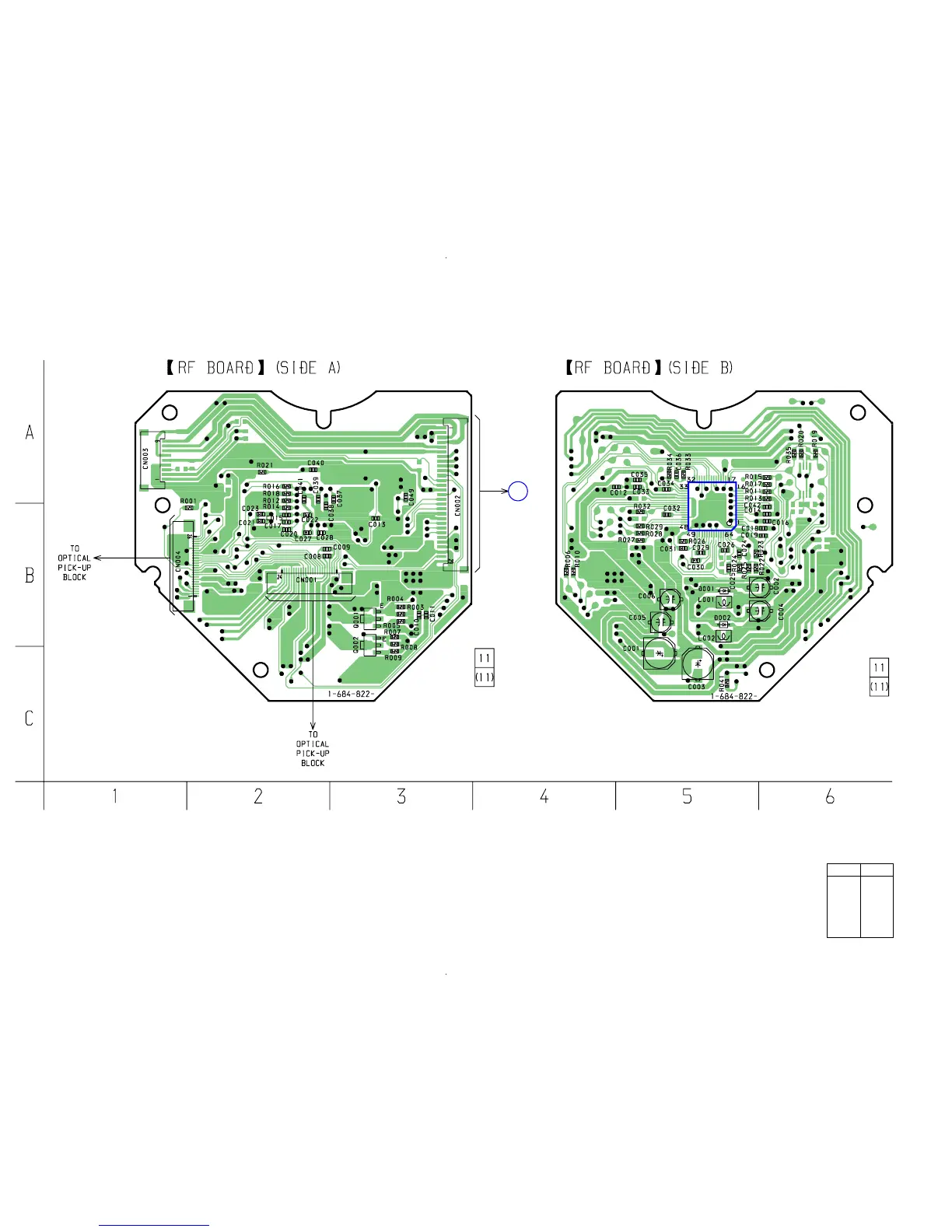

7-3. PRINTED WIRING BOARD – RF Board – • See page 24 for Circuit Boards Location.
• Semiconductor
Location
D001 B-5
D002 B-5
IC001 A-5
Q001 B-3
Q002 C-3
Ref. No. Location
IC001
(Page 36)
A
TO
DMB03 BOARD
(TDP022W)
(TDP022W)
