Sony HCD-GN88D - Power Amp Board; Video Board, DMB03 Board, Regulator Board

13
HCD-GN88D

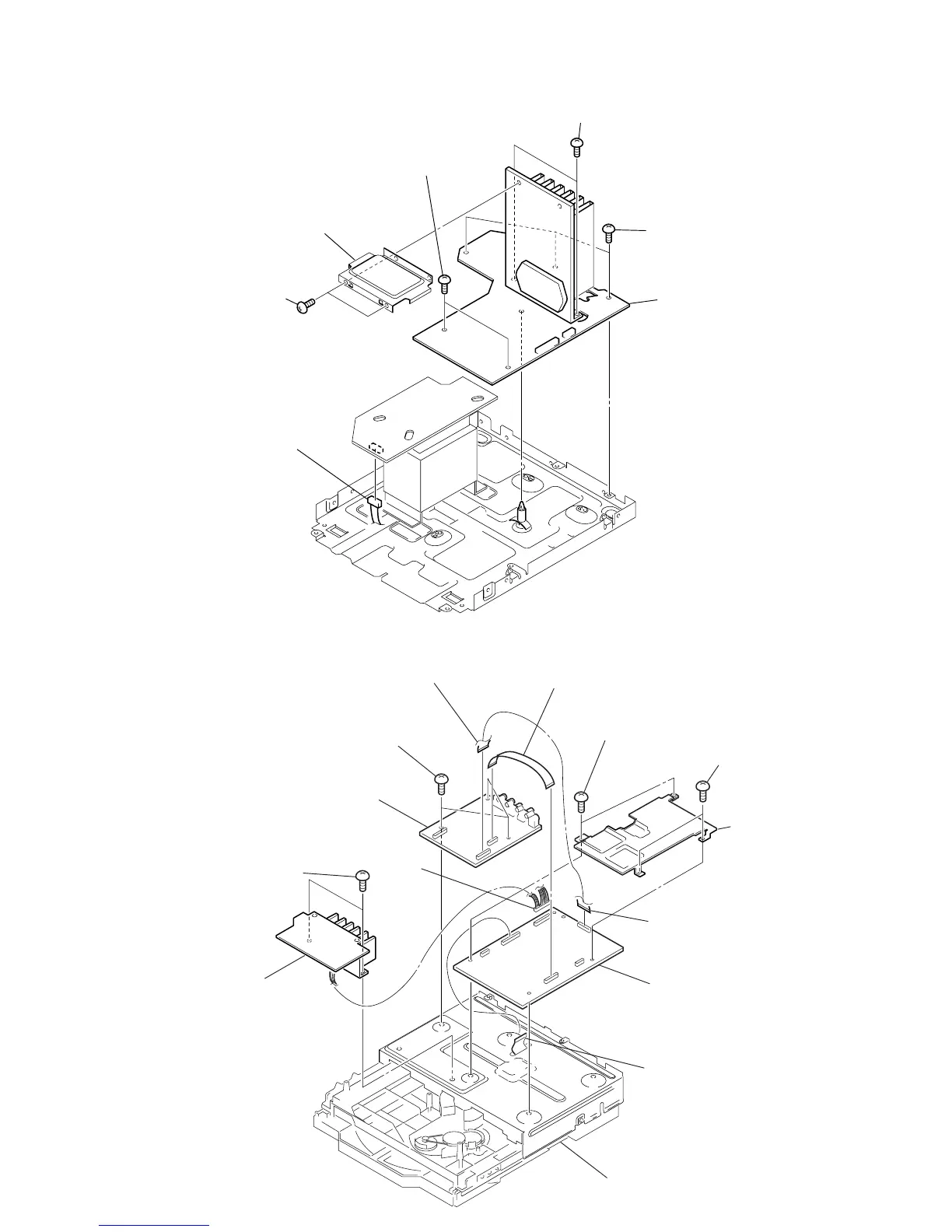

3-11. POWER AMP BOARD
2 Tw o screws
(+BVTP3 x 10)
3 Bracket (HS)
6 Tw o screws
(+BVTP3 x 10)
4 Tw o screws
(+BVTP3 x 10)
5 Three screws
(+BVTP3 x 10)
7 POWER AMP board
1 Connector
from CN997
3-12. VIDEO BOARD, DMB03 BOARD, REGULATOR BOARD
1 Flat type wire (CN208)
6 Flat type wire (CN501)
DVD mechanism deck
(bottom view)
2 Flat type wire
(CN712, CN105)
8 Two screws
(BVTP 3
× 8)
qs Two screws
(BVTT 3
× 6)
qd REGULATOR
board
7 Flat type wire (CN107)
3 Three screws
(BVTP 3
× 8)
4 VIDEO board
5 Connector
(CN102)
0 Heat sin
k
(DVD)
qa DMB03 board
9 Two screws
(BVTP 3
× 8)
