Sony HCD-GN88D - SECTION 8 EXPLODED VIEWS; Exploded Views: Case and Panel Assemblies

79
HCD-GN88D

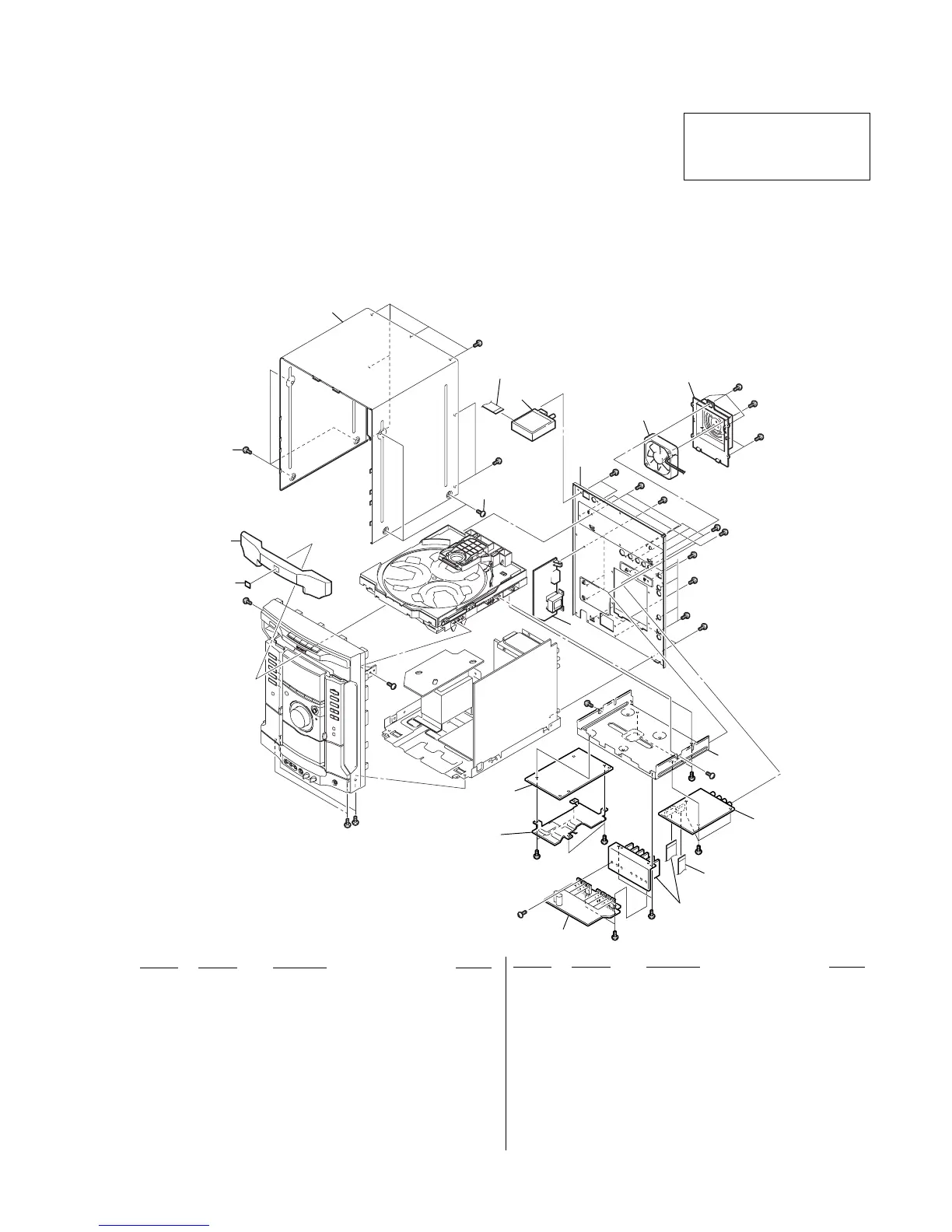

8-1. CASE, BACK PANEL, DMB03 BOARD SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1
M891
not
supplied
not
supplied
not
supplied
7
2
3
4
10
9
8
11
6
#1
#1
#1
#1
#1
#1
#1
#1
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#2
#2
#2
#2
#2
#1
#1
2
not
supplied
not
supplied
not
supplied
• Abbreviation
AUS : Australian model
E3 : 240 V AC Area in E model
EA : Saudi Arabia model
E15 : Iran model
E51 : Chilean and Peruvian model
MX : Mexican model
PH : Philippines model
SP : Singapore model
MY : Malaysia model
TH : Thai model
1 4-244-102-61 LOADING PANEL
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-231-828-51 CASE
4 A-4731-346-A SUB-TRANS BOARD, COMPLETE
(E15,E3,E51,PH,SP,MY)
4 A-4734-889-A SUB-TRANS BOARD, COMPLETE (MX)
4 A-4734-967-A SUB-TRANS BOARD, COMPLETE (AUS)
4 A-4747-641-A SUB TRANS BOARD, COMPLETE (EA)
4 A-4749-091-A SUB TRANS BOARD, COMPLETE (TH)
6 1-693-603-31 TUNER (FM/AM)
7 3-067-237-11 EMBLEM (V), DVD
8 A-4732-884-A REGULATOR BOARD, COMPLETE (EXCEPT TH)
8 A-4734-506-A REGULATOR BOARD, COMPLETE (TH)
9 A-4732-903-A DMB03 BOARD, COMPLETE
10 A-4732-883-A VIDEO BOARD, COMPLETE (EXCEPT TH)
10 A-4734-505-A VIDEO BOARD, COMPLETE (TH)
11 1-775-165-11 WIRE (FLAT TYPE) (17 CORE) (220mm)
M891 1-763-072-11 FAN, DC
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
