18
HCD-M10

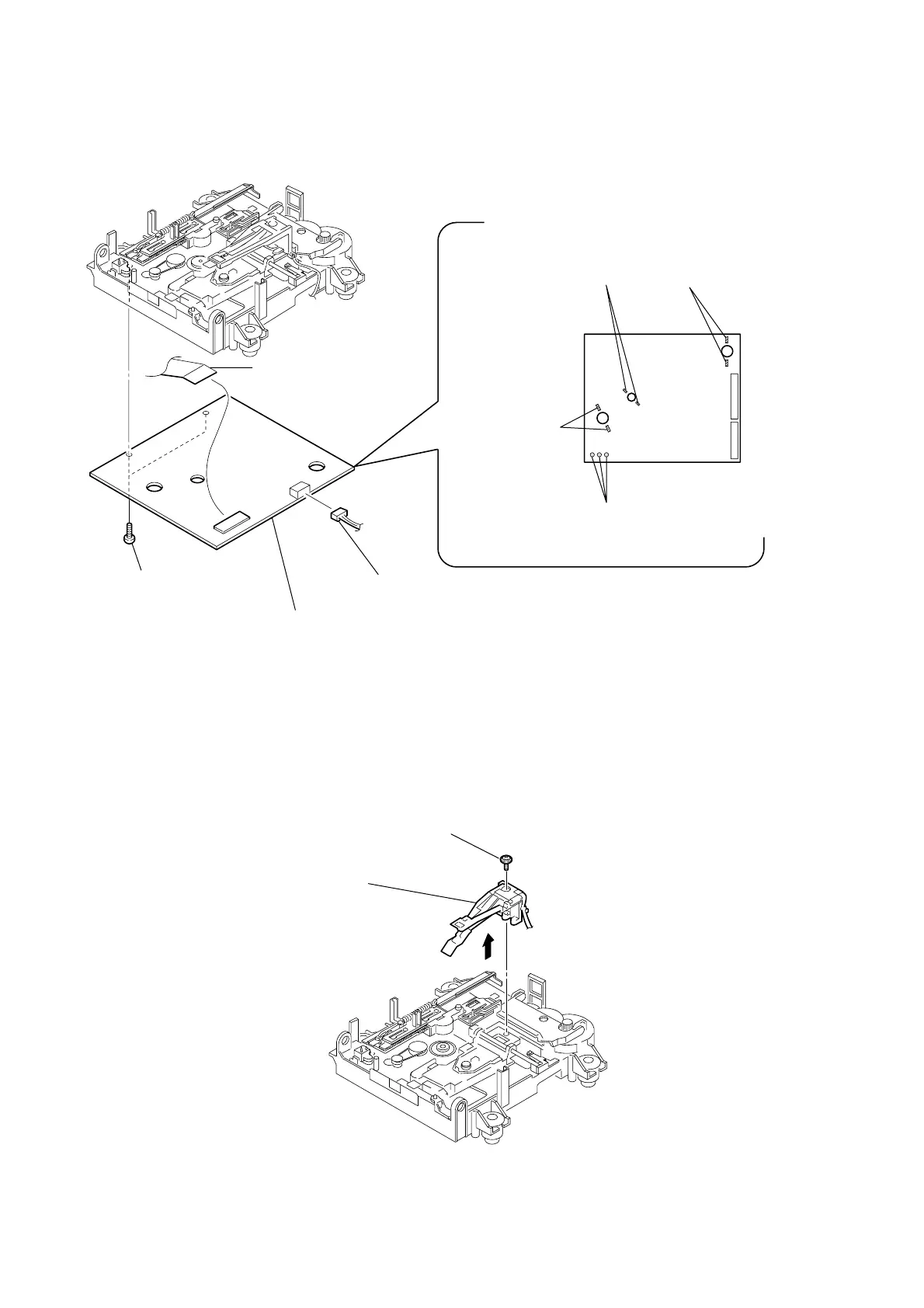

3-11. BD BOARD
3-12. OVER WRITE HEAD (HR901)
M702
M701
M703
S102
1
Remove two solderings
(sled motor)
2
Remove two solderings
(spindle motor)
3
Remove two
solderings
(loading motor)
4
Remove three solderings
(switch)
5
Two screws (+BP TRI 2X6 CZN)
8
BD board
7
Connector (CN104)
6
Flexible board (CN101)
1
Screw (P1.7X6)
2
Over write head
(HR901)
