Sony HCD-M10 - Page 19

19
HCD-M10

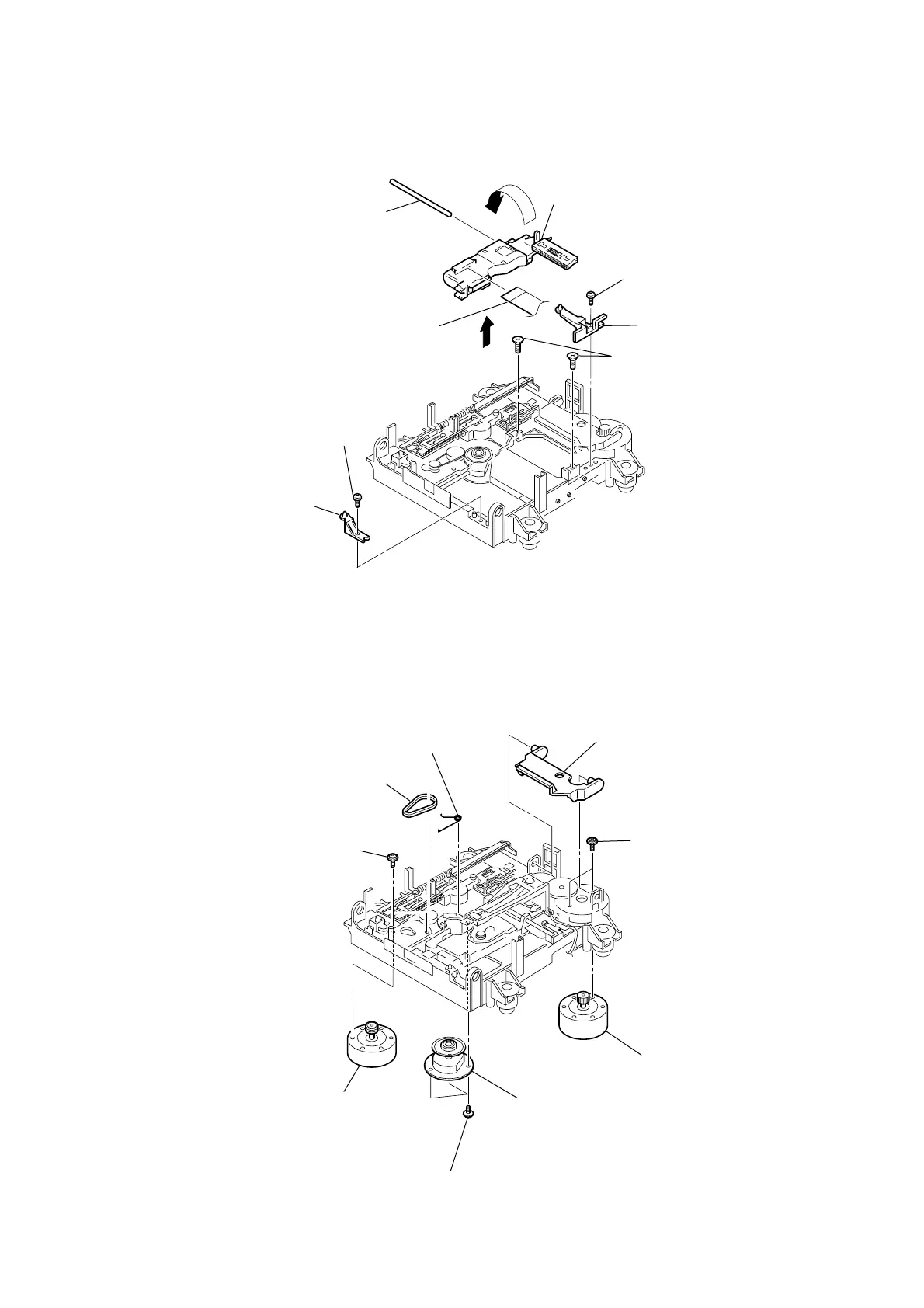

3-14. LOADING MOTOR ASSEMBLY, SPINDLE MOTOR ASSEMBLY, SLED MOTOR ASSEMBLY
3-13. OP SUB SECTION
3 Screw (+BP TRI 2X6 CZN
)
5 Base (BU-A)
1 Screw (+BP TRI 2X6 CZN)
6 Main shaft
2 Base (BU-D)
4 Base (BU-A)
8 Flexible board
9 OP sub section
7
7 Spindle motor assembly (M101)
5 Loading motor assembly (M103)
9 Sled motor assembly (M102)
1 Lever (head)
3 Torsion spring (CLV)
2 Belt (loading)
4 Two screws (+PWH1.7X3.5)
6 Three tapping screws (M1.7)
8 Two screws (+PWH1.7X3.5)
