– 11 –

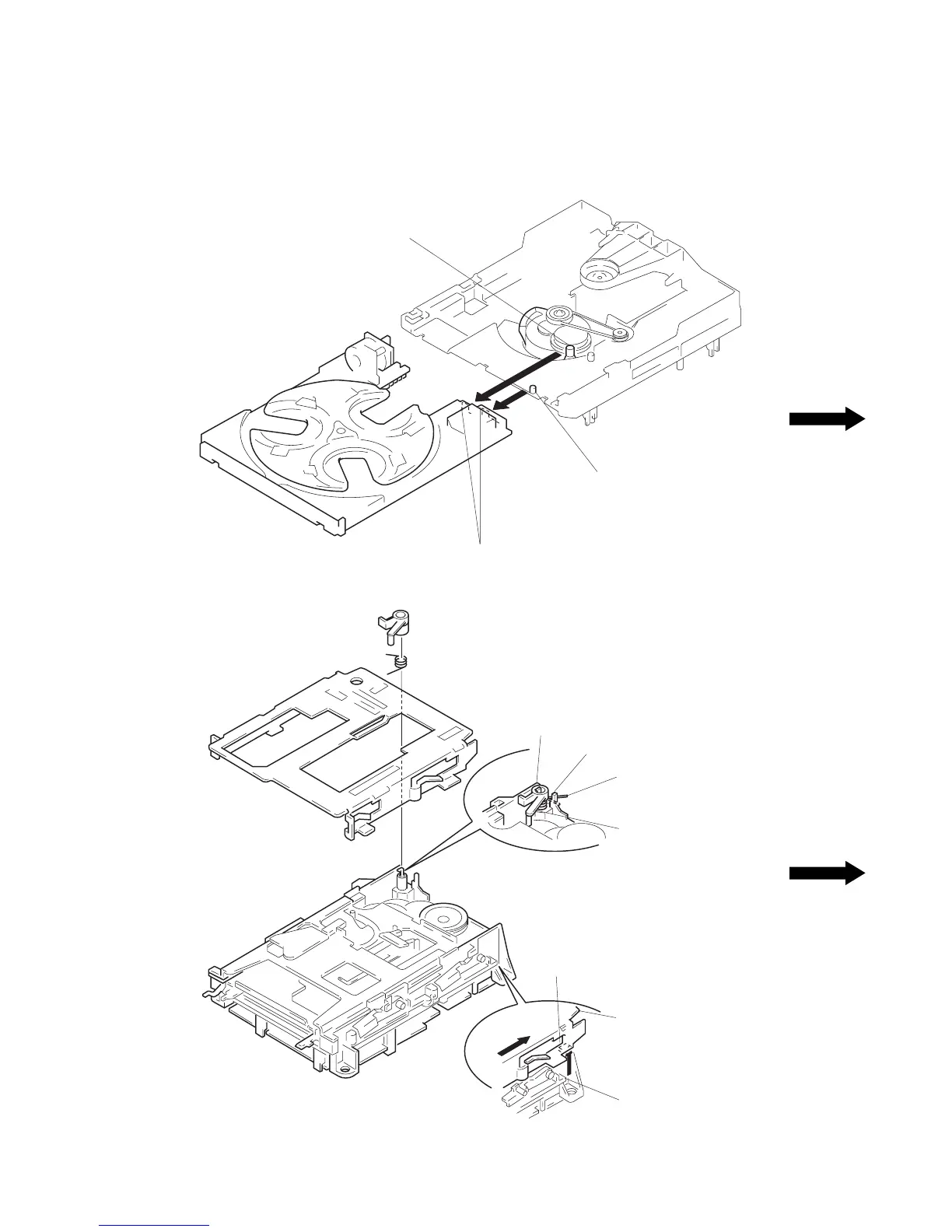

INSTALLATION DISC TRAY
Note: When mounting the disc tray, the collars
A and B must be engaged in the grooves
respectively.
SLIDER (M) ASS’Y
claw B
claw A
1 Remove a torsion coil
spling from the claw
A .
2 Disengaging the claw B ,
raise the lever (SLM) upward
to remove.
3 Slide the claw C of the slider
(M) assembly up the base
groove in direction
A , and
raise the slider (M) assembly
in direction
B to remove.
base groove
A
claw C
callar A
ditch
callar B
B
