Sony HCD-MD5 - Page 12

– 12 –

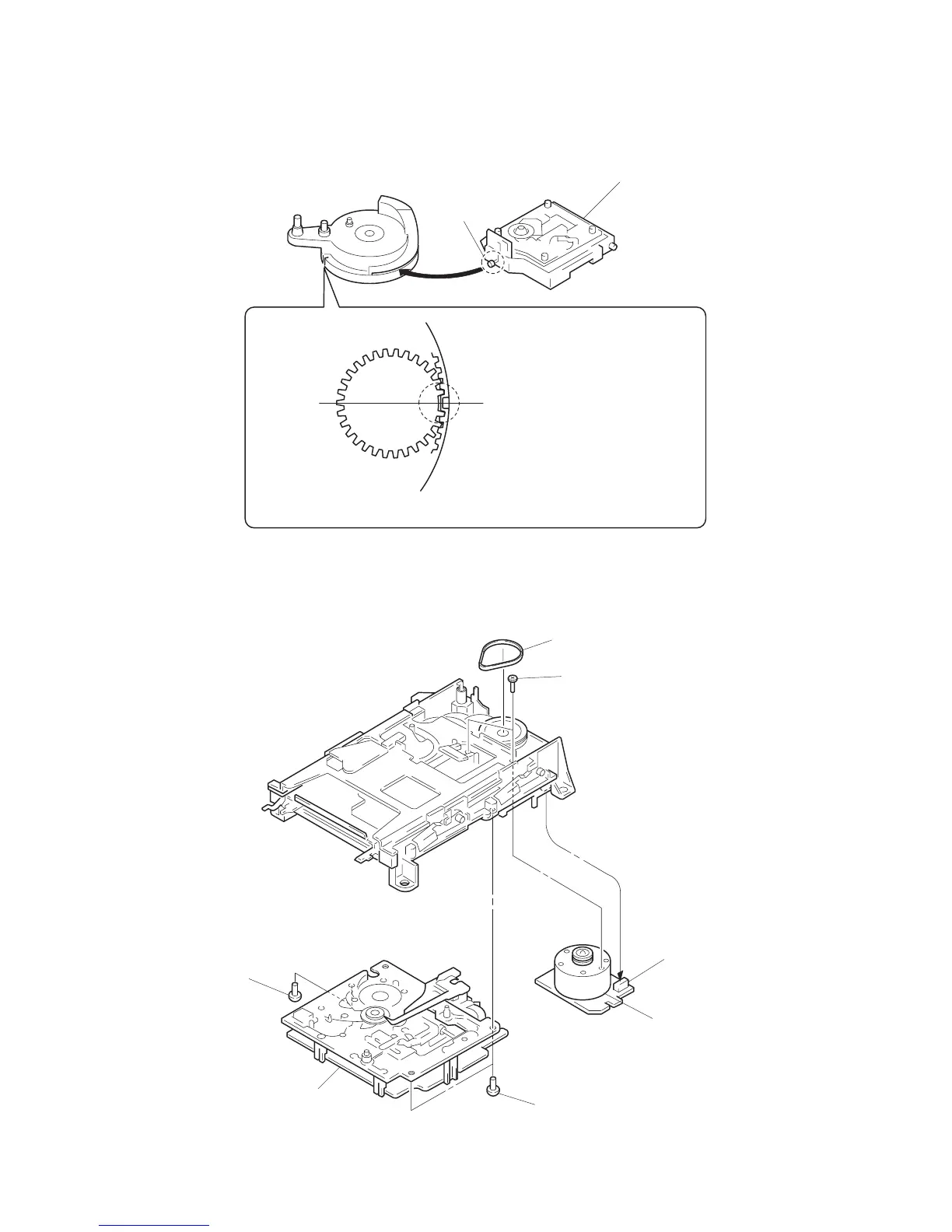

When mounting the base unit, insert the
portion A into a groove in the BU cam.
When mounting the BU cam assembly,
it must be engaged with the rotaly
encorder switch as shown.
portion A
INSTALLATION BU CAM ASS’Y BASE UNIT, ROTALY ENCODER
BASE UNIT, LOADING MOTOR ASS’Y
3 belt
4 two screws
(B2.6
× 5)
5 connector
(CN192)
6 loading motor ass’y
1 screw
(BV3
× 6)
2 base unit
1 screws
(BV3
× 6)
