Sony HCD-MD5 - 2 General; 3 Disassembly

– 7 –
Note: Follow the disassembly procedure in the numerical order given.

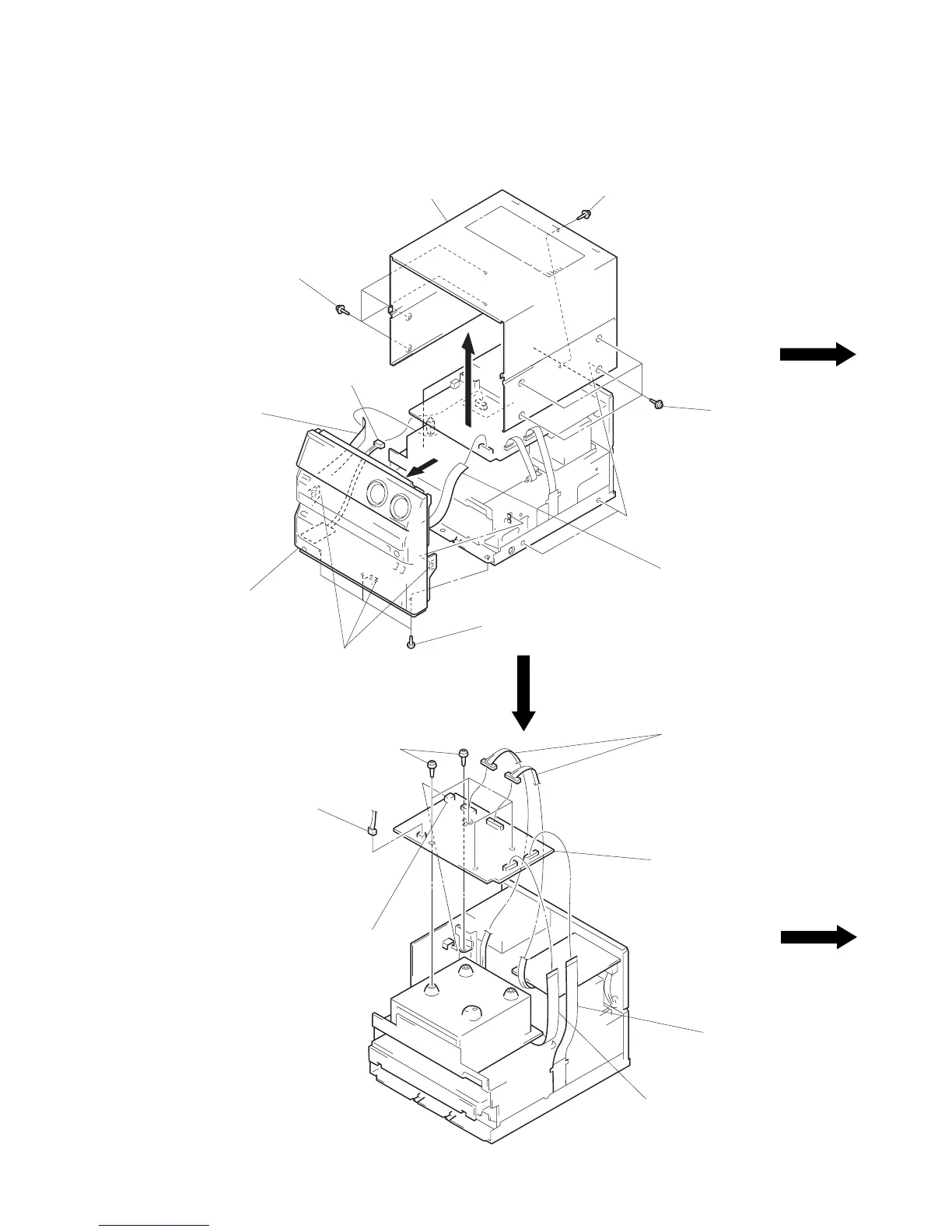

CASE, FRONT PANEL ASS’Y
SECTION 3
DISASSEMBLY
1 connector
(CN881)
3 five screws
(BV3
× 8)
POWER BOARD
1 four screws
(CASE 3 TP2)
1 four screws
(CASE 3 TP2)
3 flat wire (19 core)
(CN805)
6 three claws
7 front panel ass‘y
3 flat wire (22 core)
(CN103)
4 connector
(CN906)
2 case
5 three screws
(BV3
× 8)
1 two connectors
(CN802, 803)
5 POWER board
2 flat wire (21 core)
(CN807)
2 flat wire (23 core)
(CN808)
4 connector
(CN804)
1 four screws
(CASE 3 TP2)
