Sony HCD-MD5 - Page 77

– 131 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 4-951-620-01 SCREW (2.6X8), +BVTP
* 302 A-4673-402-A BD (CD) BOARD, COMPLETE
303 4-951-940-01 INSULATOR (BU)
304 4-917-565-01 SHAFT, SLED
! 305 8-848-367-11 OPTICAL PICK-UP (CD) KSS-213B/K-N
306 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
307 4-917-567-01 GEAR (M)
308 4-917-564-01 GEAR (P), FLATNESS
M101 X-4917-523-4 BASE (OUTSART) ASSY (SPINDLE) (CD)
M102 X-4917-504-1 MOTOR ASSY (SLED) (CD)
The components identified by mark ! or
dotted line with mark ! are critical for
safety.
Replace only with part number specified.

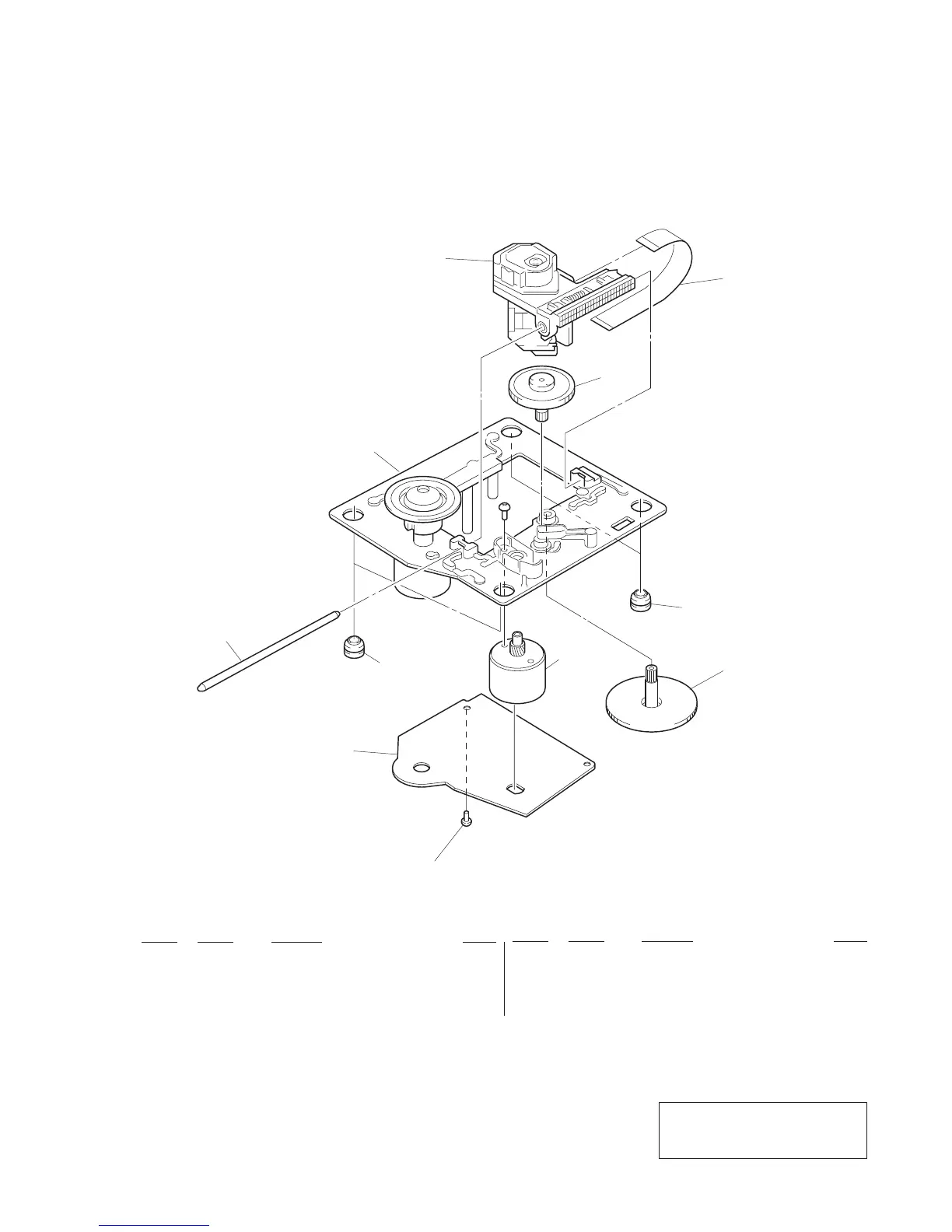

(7) CD BASE UNIT SECTION
(BU-5BD19)
305
306
#10
307
303
308
M102
301
302
303
304
M101
