Sony HCD-MD5 - Page 76

– 130 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 X-4946-296-1 HOLDER (BU) ASSY
252 4-982-447-01 SPRING (BU), COMPRESSION
253 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
* 254 1-662-215-11 CONNECTOR BOARD
255 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
256 4-977-955-01 GEAR (SL-B)
257 4-917-583-21 BRACKET, YOKE
258 4-977-953-01 GEAR (SL-A)
259 4-977-954-01 PULLEY (SL)
260 4-977-942-01 BELT (SL) (1.4)
261 X-4946-491-1 CAM ASSY, BU
* 262 1-452-879-11 MAGNET
* 263 X-4946-498-1 CHASSIS (CDM) ASSY
* 264 1-662-214-11 MOTOR (SLIDE) BOARD
265 4-951-620-41 SCREW (2.6), +BVTP
M1801 A-4660-926-A MOTOR (CDM) ASSY
S851 1-473-335-11 ENCODER, ROTARY

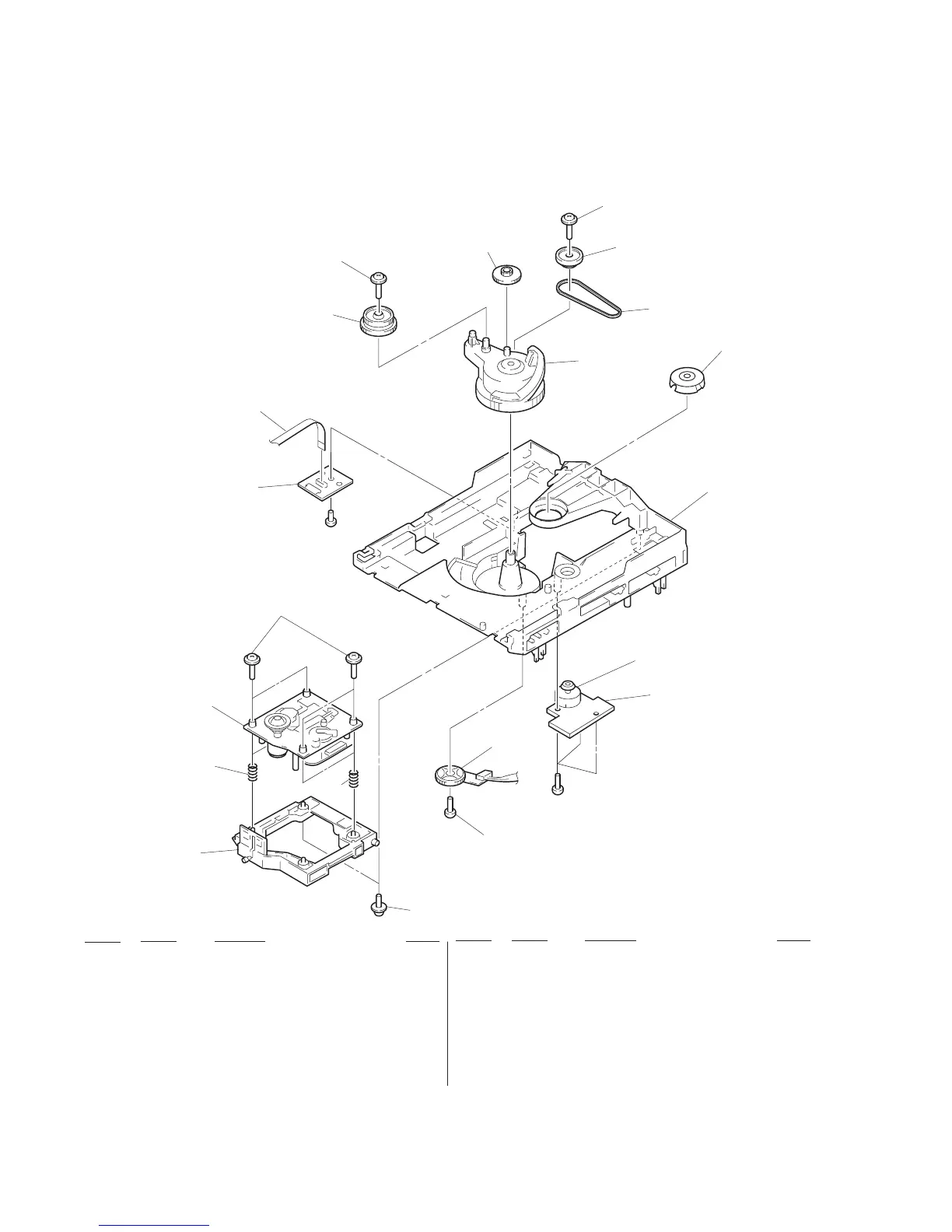

(6) CD MECHANISM SECTION-2
(CDM38A-5BD19)
257
256
258
257
259
260
261
262
263
M1801
264
#1
S851
265
257
251
252
BU-5BD19
253
252
#1
254
255
