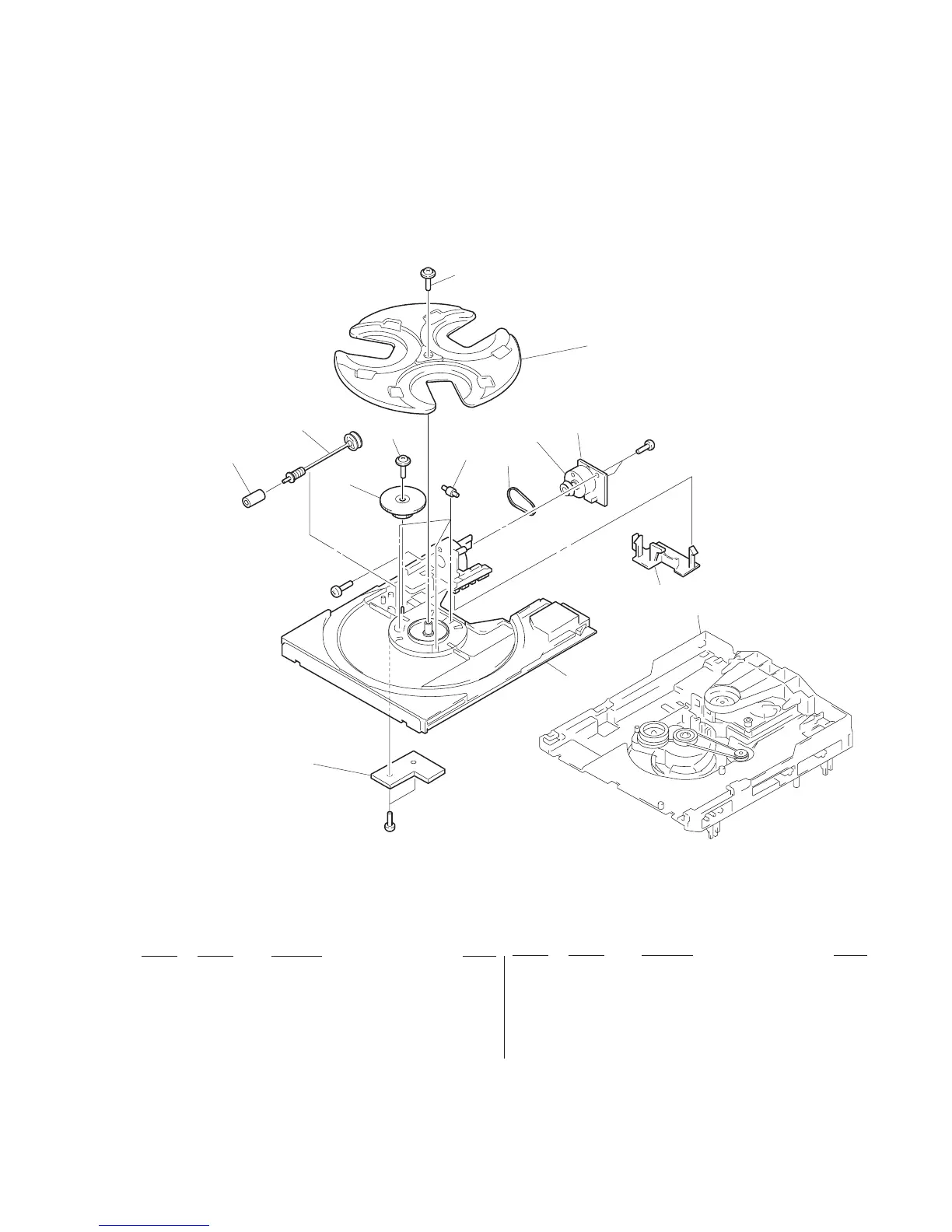

(5) CD MECHANISM SECTION-1
(CDM38A-5BD19)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 201 1-662-213-11 SENSOR BOARD
202 4-981-187-01 COLLAR (WORM)
203 X-4946-295-2 SHAFT ASSY, WORM
204 4-977-956-01 WHEEL, WORM
205 X-4924-457-1 ROLLER ASSY
206 4-977-945-01 TRAY (TURN)
207 4-977-943-01 BELT (TURN) (1.2)
* 208 1-662-212-11 MOTOR (TURN) BOARD
209 4-977-941-01 BEARING (WORM)
210 4-977-944-01 TRAY (SLIDE)
211 4-917-583-21 BRACKET, YOKE
M1701 A-4660-586-A MOTOR ASSY (TURN)
211
206
208
M1701
207
205
211
203
202
204
#9
#1
201
210
209
CD mechanism section-2
#1
