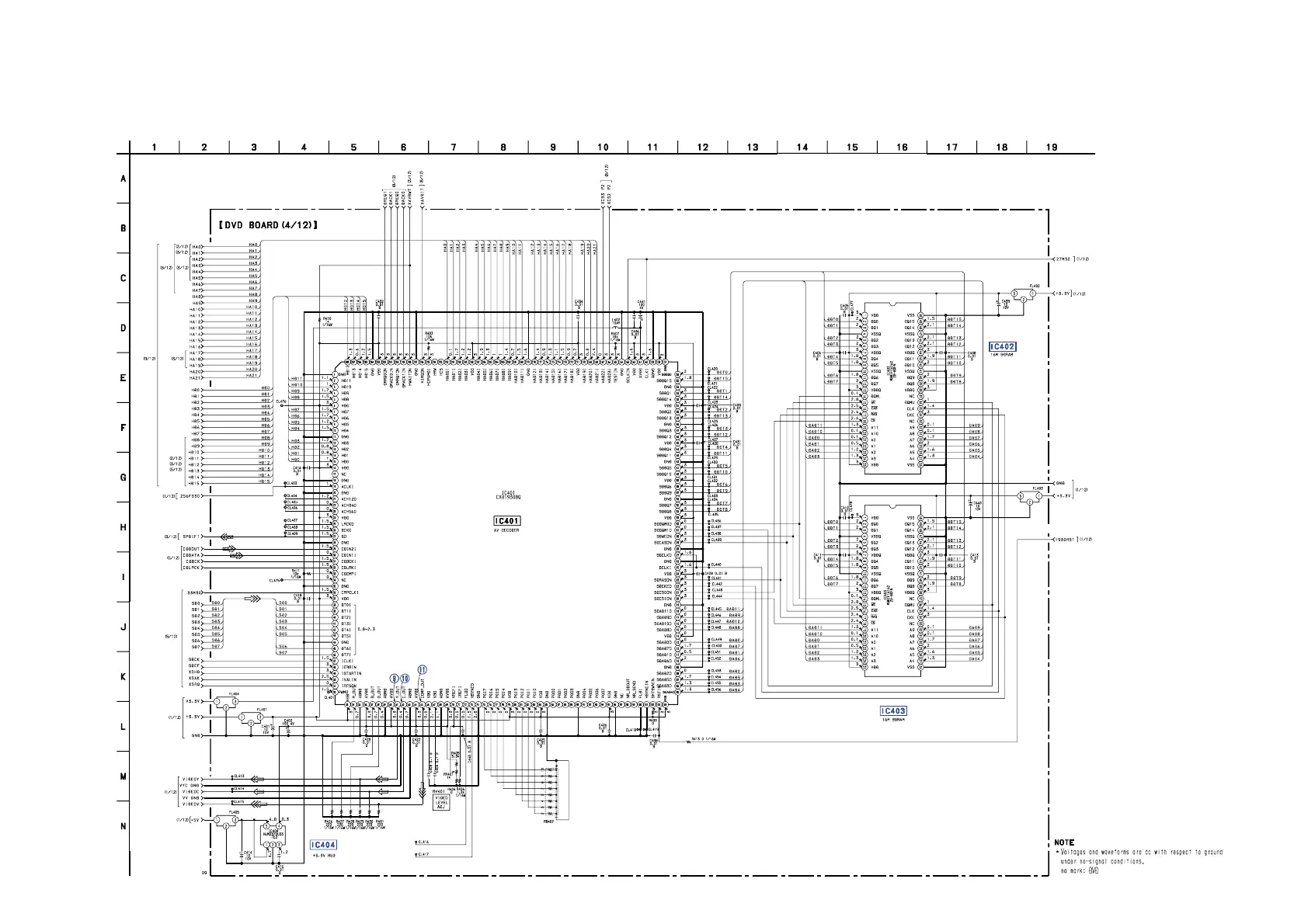

6-9. SCHEMATIC DIAGRAM – DVD (4/12) SECTION –
• See page 20 for Waveforms.
• See page 30 for Printed Wiring Board.
• See page 63, 64 for IC Block Diagrams.
