Sony HCD-S300 - EXPLODED VIEWS AND PARTS LISTS; Exploded Views

71
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

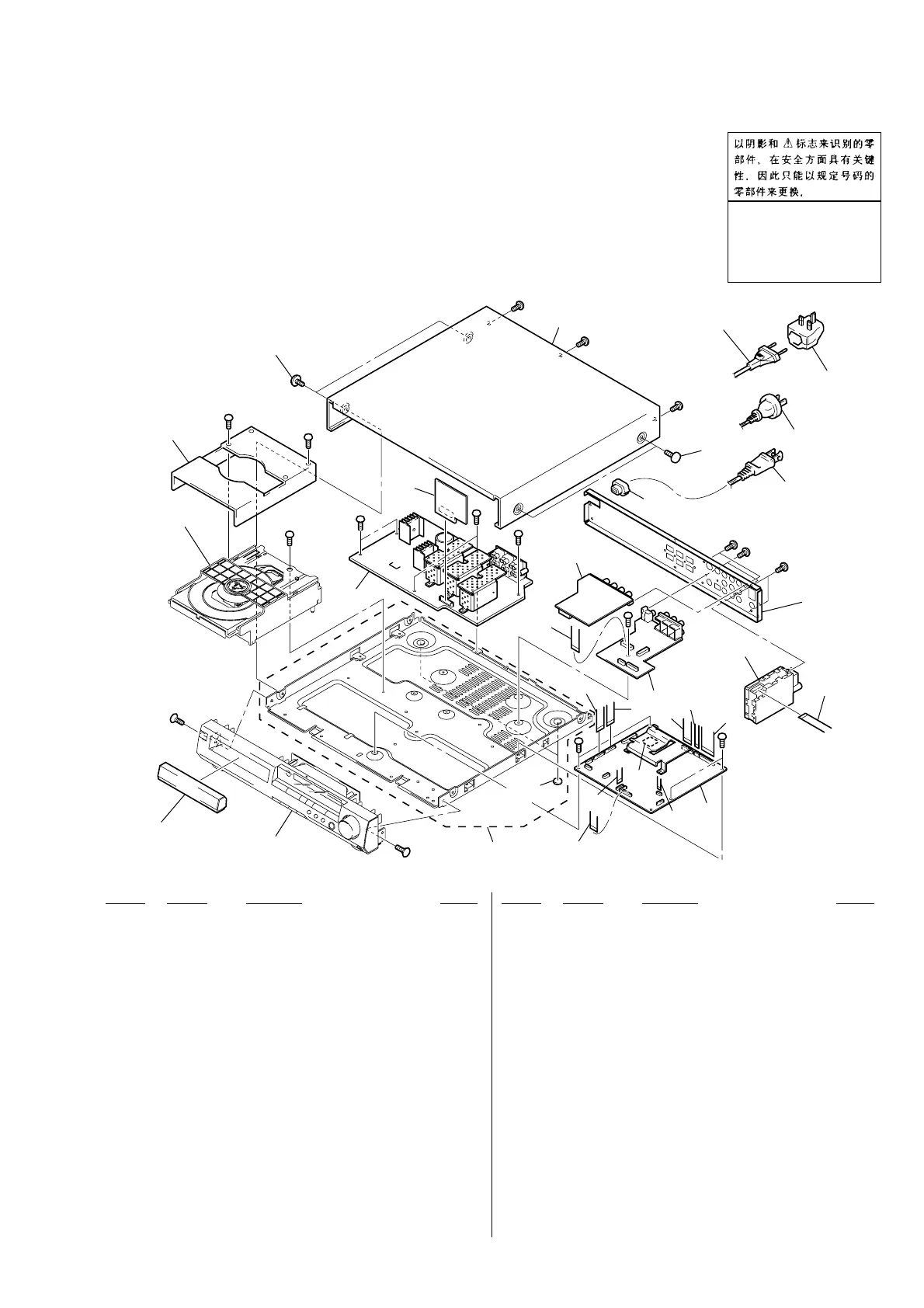

7-1. CASE AND CHASSIS SECTION
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . . (RED)
XX
Parts color Cabinets color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
AUS : Australian model
SP : Singapole model
HK : Hong Kong model
CH : Chinese model
The components identified
by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
#1
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#1
CNP901(US)
CNP901(E,AUS)
CNP901(AEP,UK,SP,HK)
1
3
4
5
6
7
14
8
9
10
24
10
12
13
not supplied
Front panel
CDM55D-DVBU2
11
15
16
17
18
18
22
21
222
19
20
1 X-4952-565-1 PNEL ASSY, LOADING
2 X-4952-947-1 CHASSIS SUB ASSY
3 A-4424-426-A DVD BOARD COMPLETE (US)
3 A-4424-645-A DVD BOARD COMPLETE (AEP,UK)
3 A-4424-649-A DVD BOARD COMPLETE (SP,HK)
3 A-4424-651-A DVD BOARD COMPLETE (E,AUS)
4 A-4424-428-A TUNER BOARD, ASSY (US)
4 A-4424-647-A TUNER BOARD, ASSY (AEP,UK)
4 A-4424-650-A TUNER BOARD, ASSY (E32,AUS,SP,HK)
5 A-4428-331-A AUDIO BOARD, COMPLETE (US)
5 A-4473-125-A AUDIO BOARD, COMPLETE
(AEP,UK,SP,HK,E32,AUS)
6 A-4428-332-A VIDEO BOARD, COMPLETE
7 X-4952-948-1 PANEL, BACK SUB ASSY
8 A-4428-327-A POWER BOARD, COMPLETE (US)
8 A-4473-122-A POWER BOARD, COMPLETE
(AEP,UK,SP,HK,AUS)
8 A-4473-132-A POWER BOARD, COMPLETE (E32)
9 A-4428-329-A PROTECT BOARD, COMPLETE
10 4-221-580-01 SCREW, CASE
11 X-4952-949-01 CASE SUB ASSY
12 4-217-350-01 STOPPER, CORD
13 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)
14 1-792-403-11 CABLE, FLAT
15 1-792-404-11 CABLE, FLAT
16 1-792-405-11 CABLE, FLAT
17 1-792-406-11 CABLE, FLAT
18 1-792-399-11 CABLE, FLAT
19 1-792-400-11 CABLE, FLAT
20 1-792-401-11 CABLE, FLAT
21 1-792-402-11 CABLE, FLAT
22 4-226-340-01 SHEET, RADIATION
24 4-227-964-11 COVER, MD
0CNP901 1-690-608-11 CORD, POWER (E32,AUS)
0CNP901 1-696-169-21 CORD, POWER (AEP,UK,SP,HK)
0CNP901 1-783-531-61 CORD, POWER (US)
