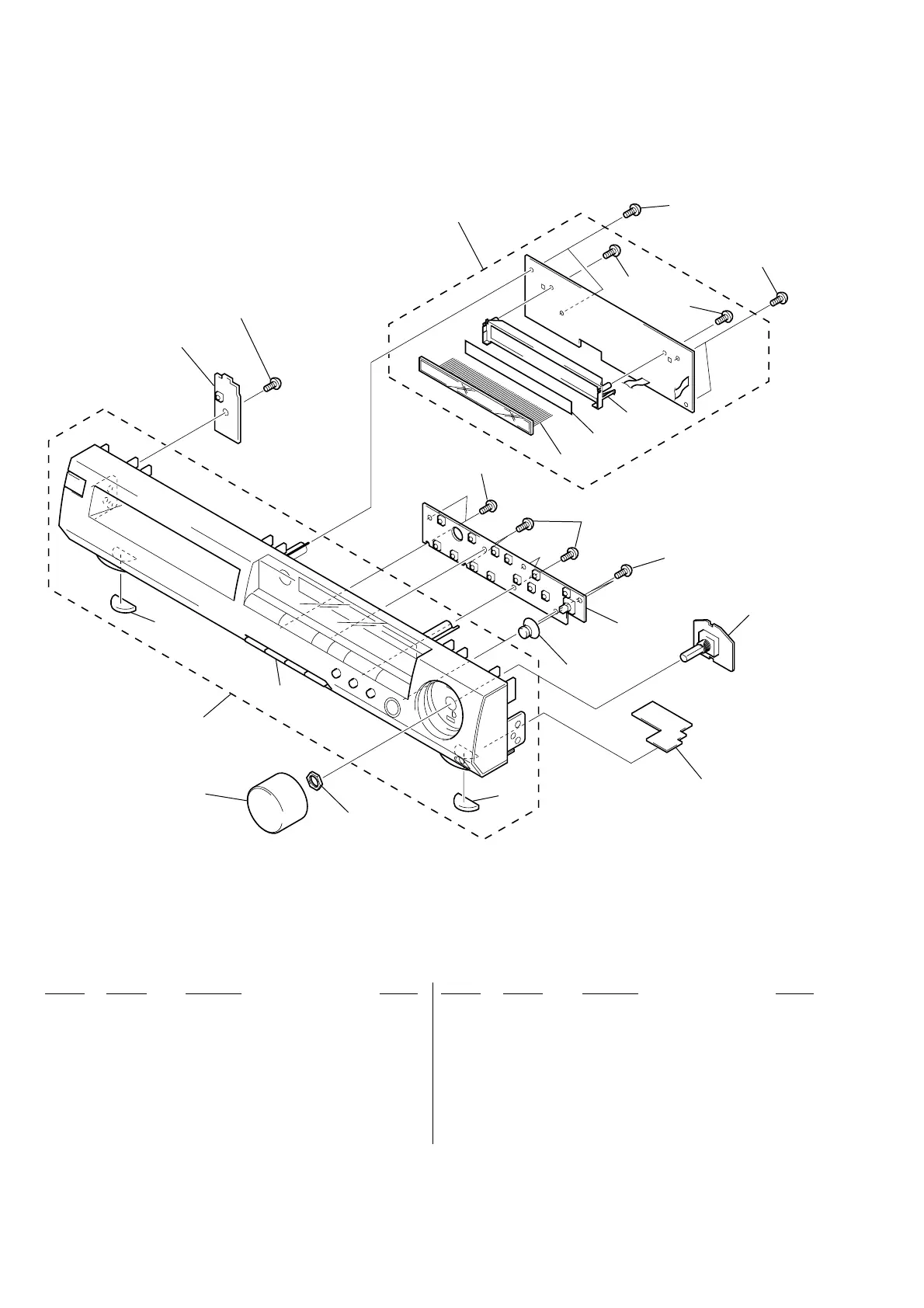

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4952-564-1 KNOB (VOL) ASSY
52 X-4952-562-1 PANEL ASSY, FRONT
53 4-218-204-01 FOOT (FRONT)
54 A-4428-322-A HP-932 BOARD, COMPLETE
55 A-4428-324-A VL-932 BOARD, COMPLETE
56 A-226-334-01 KNOB (CURSOR)
57 A-4428-320-A SW-932 BOARD, COMPLETE
58 4-931-757-31 SCREW (2.6X8) (1T3B), +BVTP
59 A-4428-321-A PW-932 BOARD, COMPLETE
60 A-4428-323-A FP-932 BOARD, COMPLETE
61 4-227-174-01 SHEET, DIFFUSION
62 4-226-339-01 HOLDER (LED)
LCD100 1-803-910-11 DISPLAY PANEL, LIQUID CRYSTAL
51
52
not supplied
LCD100
Supplied with S500
53
54
53
55
56
57
58
58
58
58
58
58
58
58
59
60
61
62
