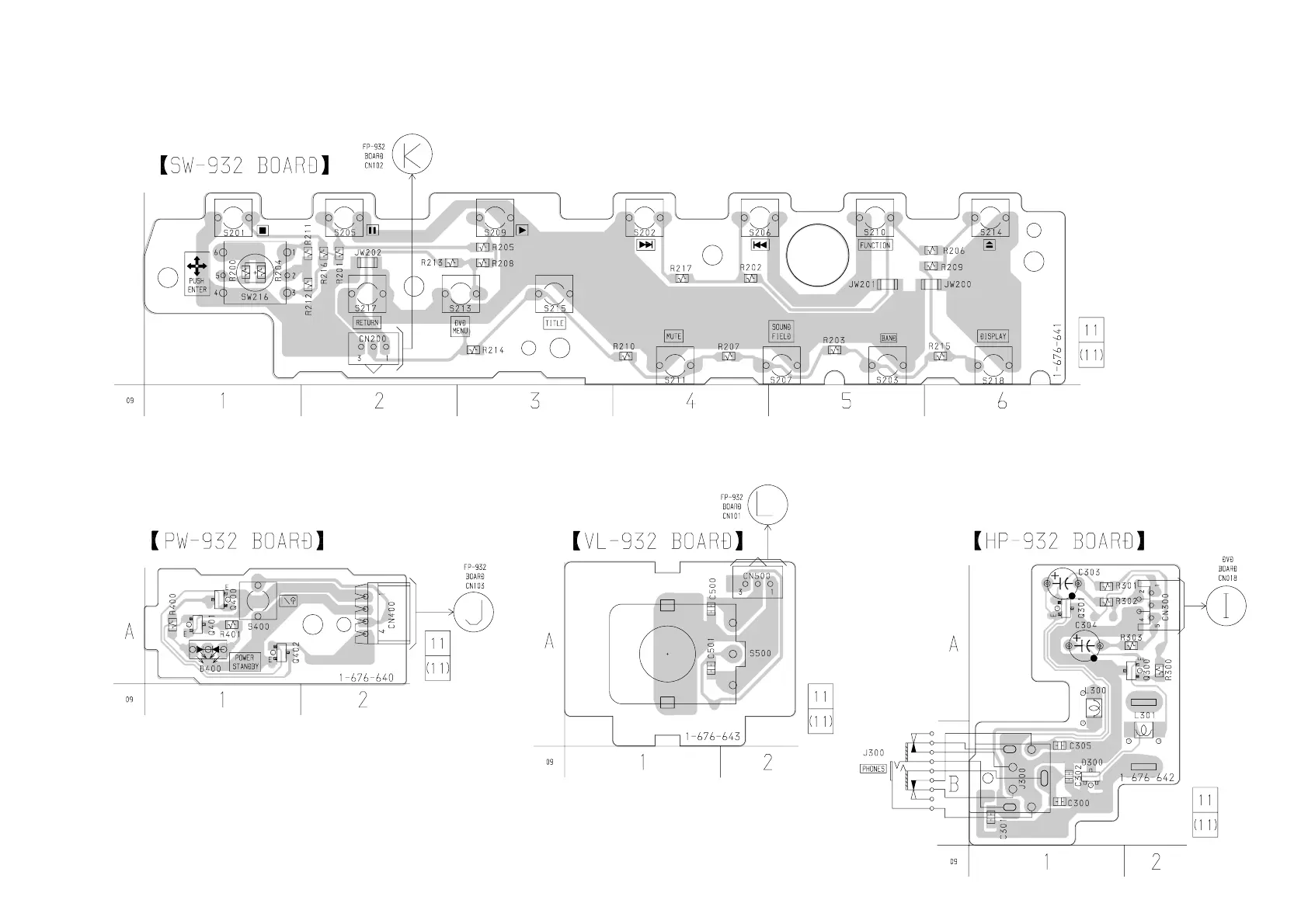

6-21. PRINTED WIRING BOARD – FRONT (2/2) SECTION –
• See page 19 for Circuit Boards Location.
(Page 45)
(Page 30)
(Page 45)
(Page 45)
