Sony HCD-S300 - 6-23.Printed Wiring Board - VIDEO Section

HCD-S300
49 49

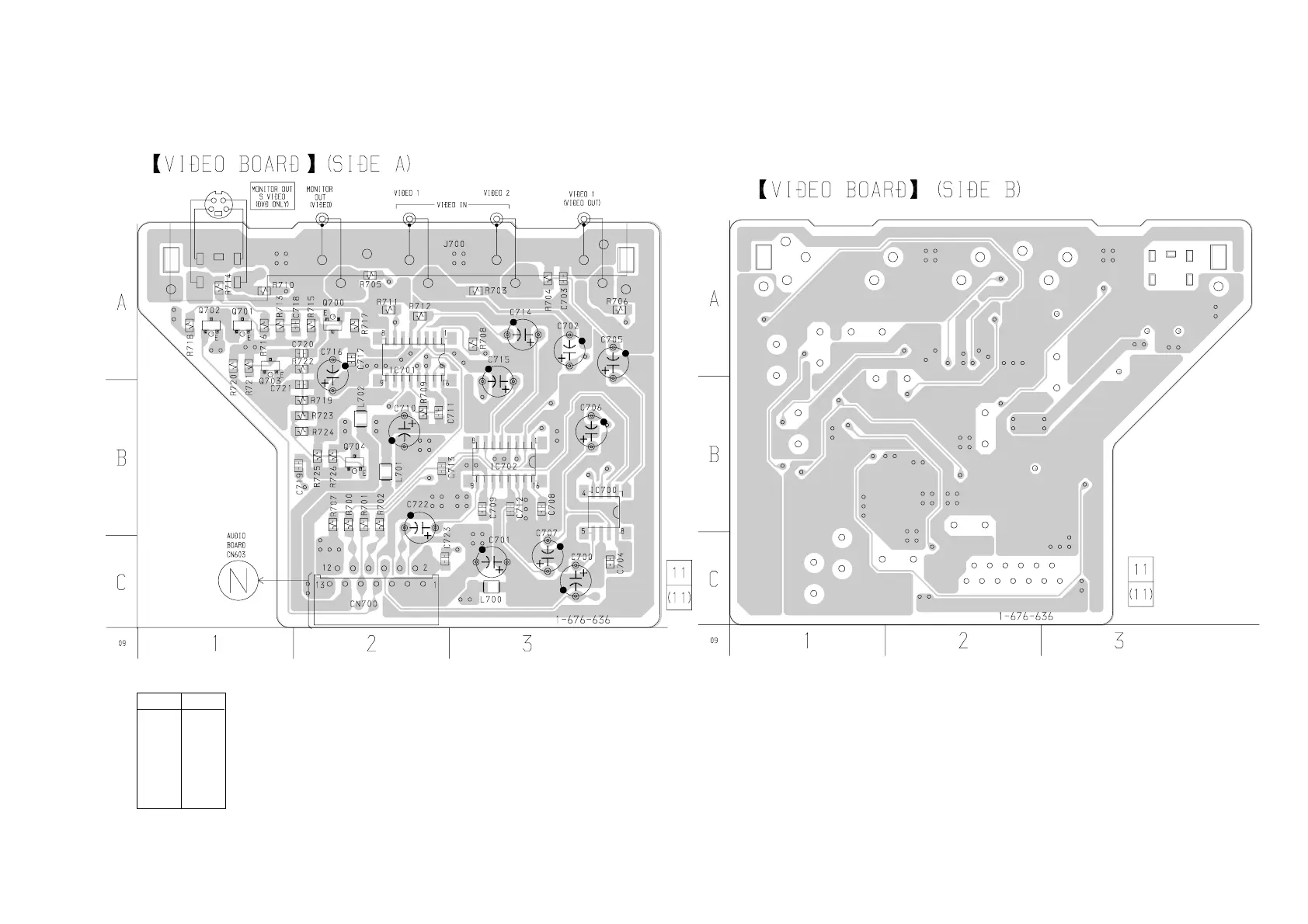

6-23. PRINTED WIRING BOARD – VIDEO SECTION –
• See page 19 for Circuit Boards Location.
Ref. No. Location
IC700 B-3
IC701 A-2
IC702 B-3
Q700 A-2
Q701 A-1
Q702 A-1
Q703 A-1
Q704 B-2
• Semiconductor
Location
(Page 51)
