3-4. DISC TRAY

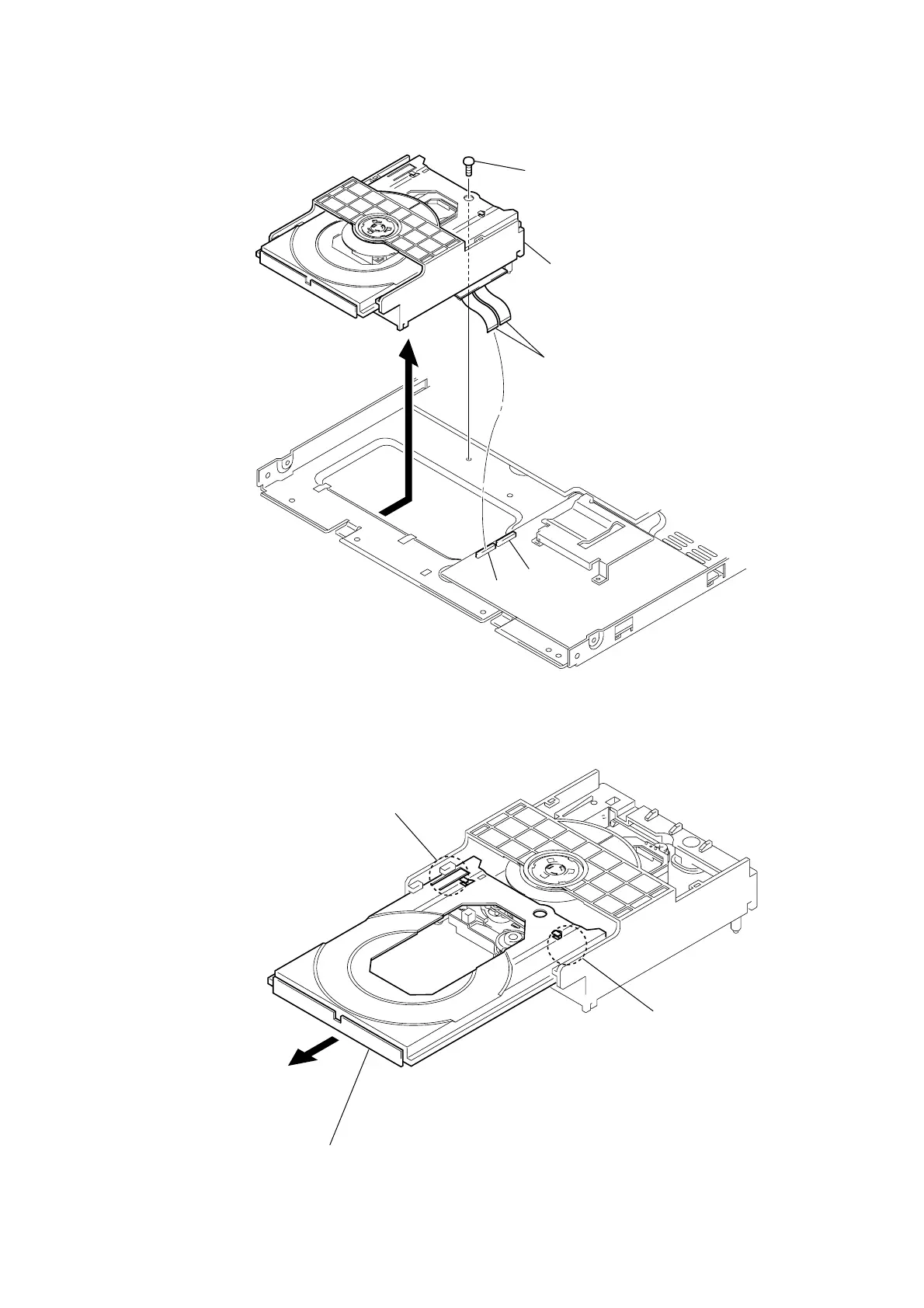

3-3. CD MECHANISM
1Screw (BTP3x8)
2Two flat cable
3Remove the CD mechanism to the direction of arrow.
CN002
CN003
Claw
Claw
1Remove the disc tray(Careful of the claw ).
