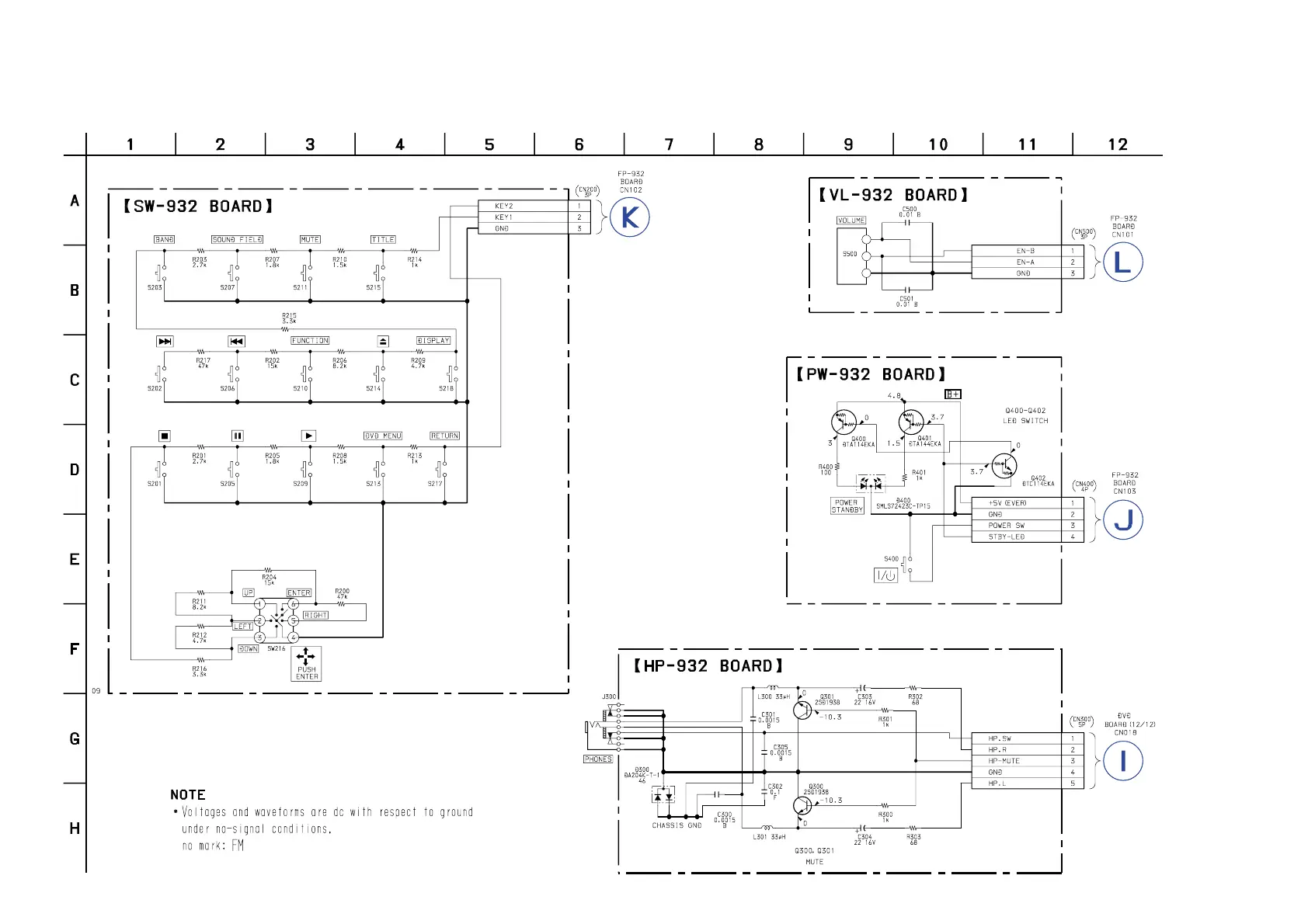

6-20. SCHEMATIC DIAGRAM – FRONT (2/2) SECTION –
• See page 20 for Waveforms.
(Page 44)
(Page 44)
(Page 43)
