Sony HCD-U1BT - MAIN Board; CD Mechanism Deck (CDM80 BT-F4 BD83 S-WOD)

16
HCD-U1BT

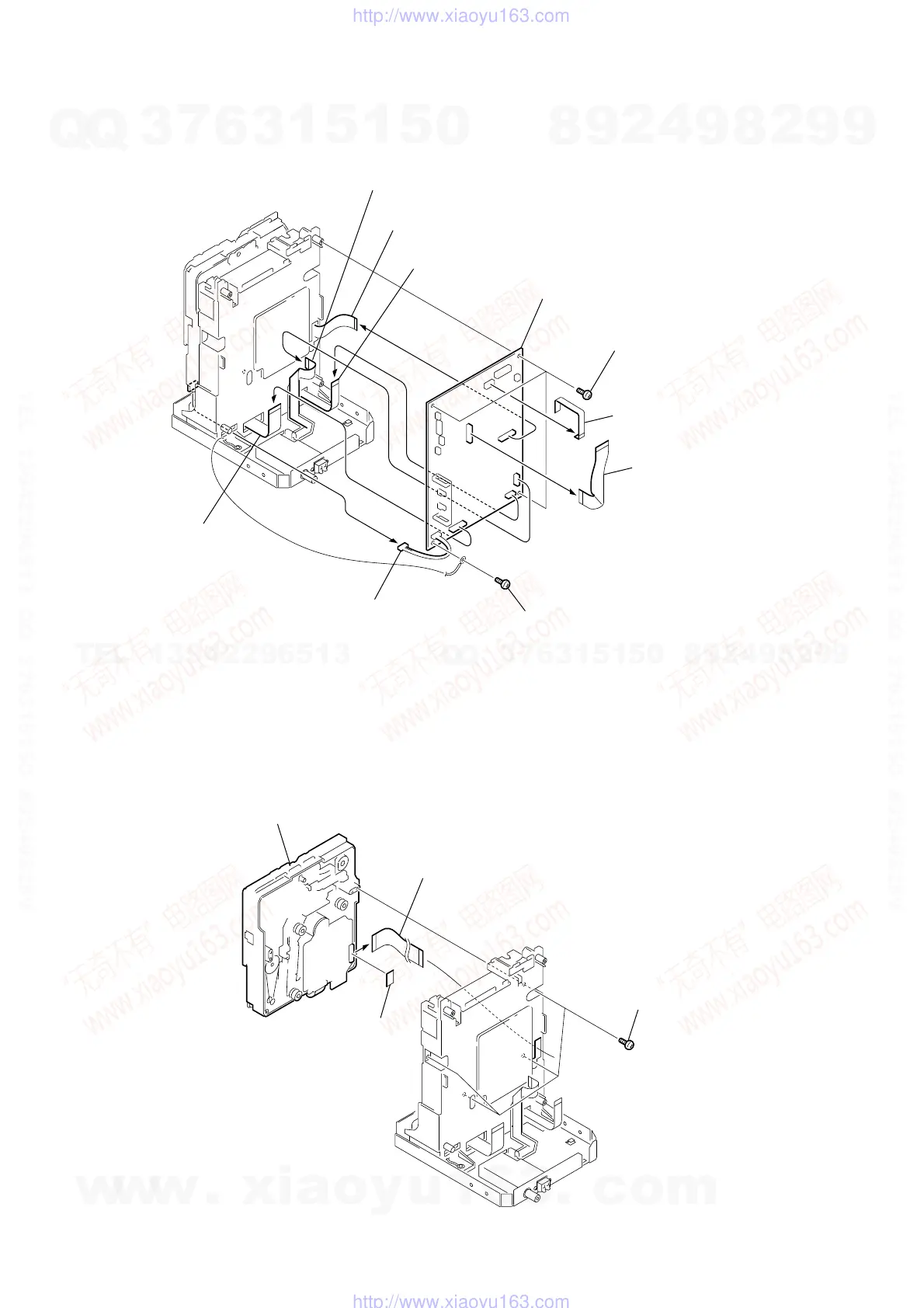

3-12. CD MECHANISM DECK (CDM80BT-F4BD83S-WOD)
3-11. MAIN BOARD
7 flexible flat cable
19core (CN109)
4 flexible flat cable
15core (CN113)
3 flexible flat cable
9core (CN114)
2 flexible flat cable
23core (CN108)
1 flexible flat cable
11core (CN110)
6 flexible flat cable
11core (CN115)
5 connector
7P (CN701)
8 screw
(+BVTP 3 × 8 )
9 three screws
(+BVTP 3 × 8 )
q; MAIN board
3 flexible flat cable
23core (CN102)
2 tape
4 CD MECHANISM DECK
(CDM80BT-F4BD83S-WOD)
1 four screws
(+BVTP 3 × 10
)
Ver. 1.1
