66
HCD-U1BT
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
CND : Canadian model
KR : Korean model

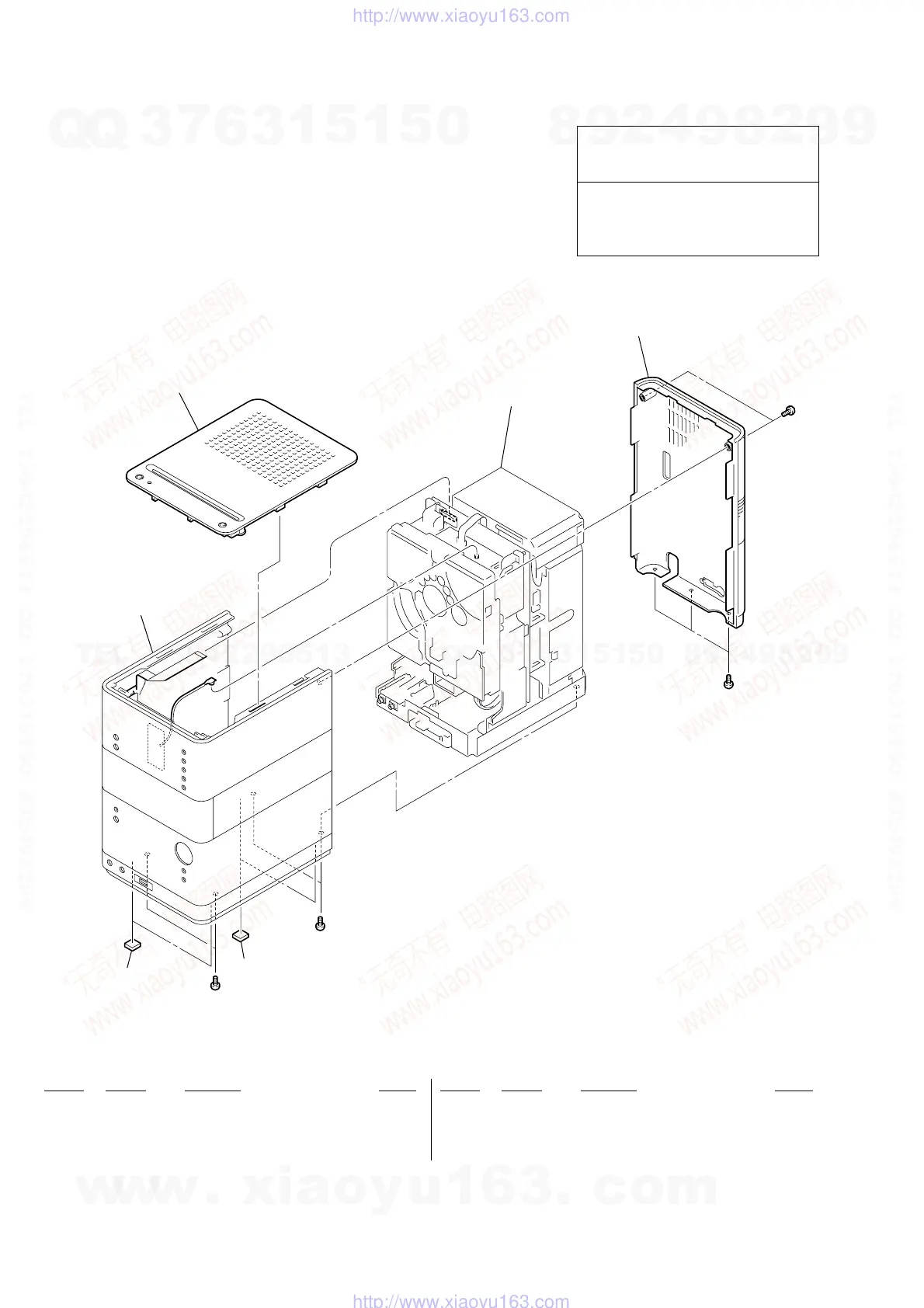

7-1. OVERALL SECTION
#1
#1
#1
#1
front panel section
AMP section
2
1
1
3
1 4-247-752-01 FOOT, RUBBER
2 A-1188-983-A TOP PANEL ASSY (EXCEPT US)
2 A-1188-984-A PANEL ASSY, TOP (US)
3 2-675-742-31 COVER, BACK (EXCEPT US)
Ref. No. Part No. Description Remark
3 2-675-742-41 COVER, BACK (US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Ver. 1.3
