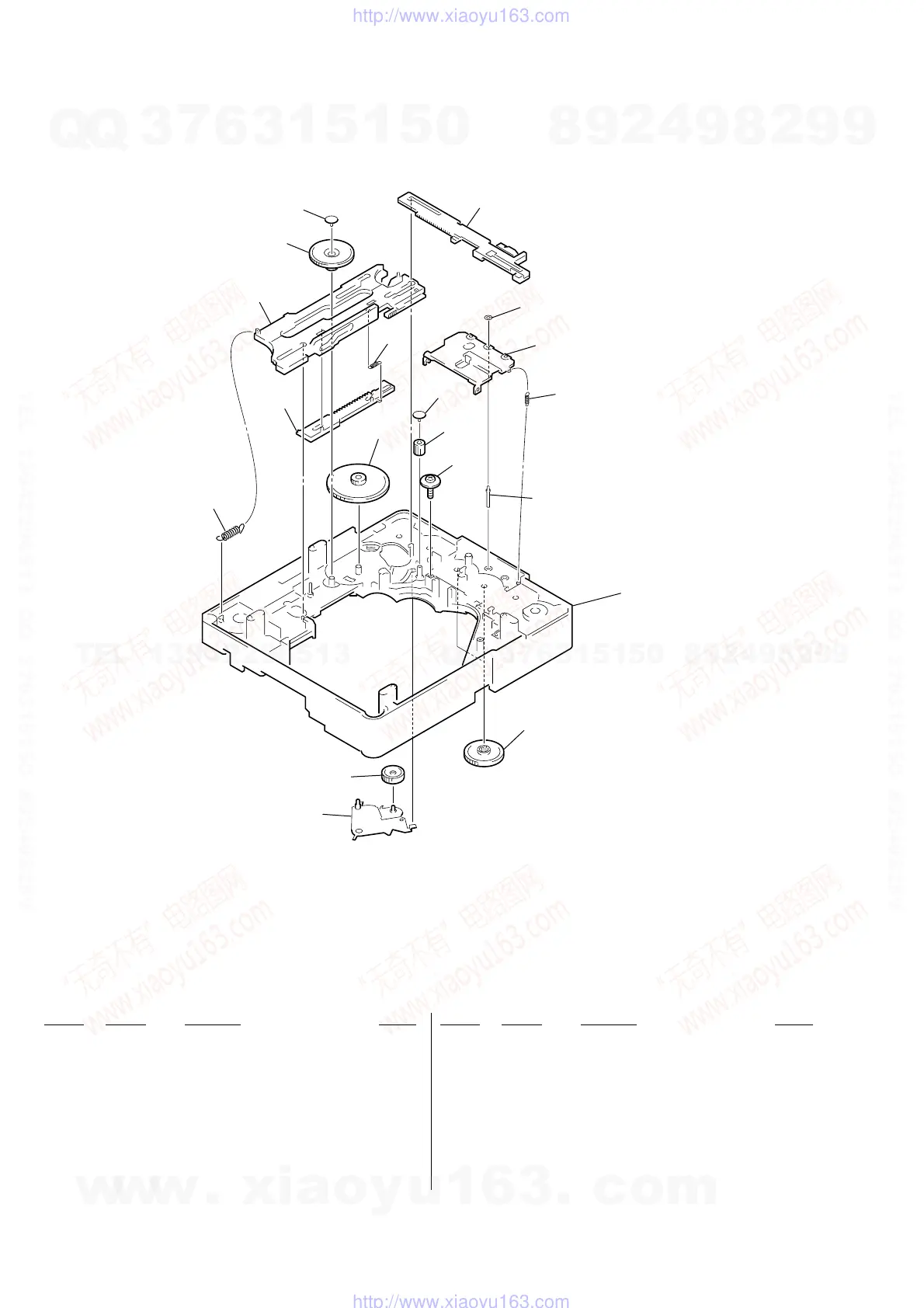

7-7. CD MECHANISM DECK SECTION-3
(CDM80BT-F4BD83S-WOD)
not
supplied
not
supplied
501
514
516
504
502
506
507
508
503
505
510
511
512
513
508
515
509
501 4-245-643-01 GEAR (IDL-C)
502 2-515-536-01 SPRING (DIR), TENSION COIL
503 4-245-642-01 GEAR (IDL-B)
504 4-245-814-01 LEVER (DIR FIRST)
505 2-515-534-01 SPRING (DIR BACK), TENSION COIL
506 4-245-660-11 LEVER (DIR)
507 4-245-641-01 GEAR (IDL-A)
508 4-245-640-01 GEAR (CAP)
509 4-245-628-01 LEVER (BU LOCK)
510 4-248-206-01 WASHER (3-1-0.4)
511 4-245-624-01 LEVER, CLOSE
512 4-245-635-01 SPR-E LEVER CLOSE
513 4-245-629-01 GEAR (BU LOCK)
514 4-245-644-01 GEAR (IDL-D)
515 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
516 X-2102-675-1 CHASSIS (BOTTOM) ASSY
