HCD-U1BT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

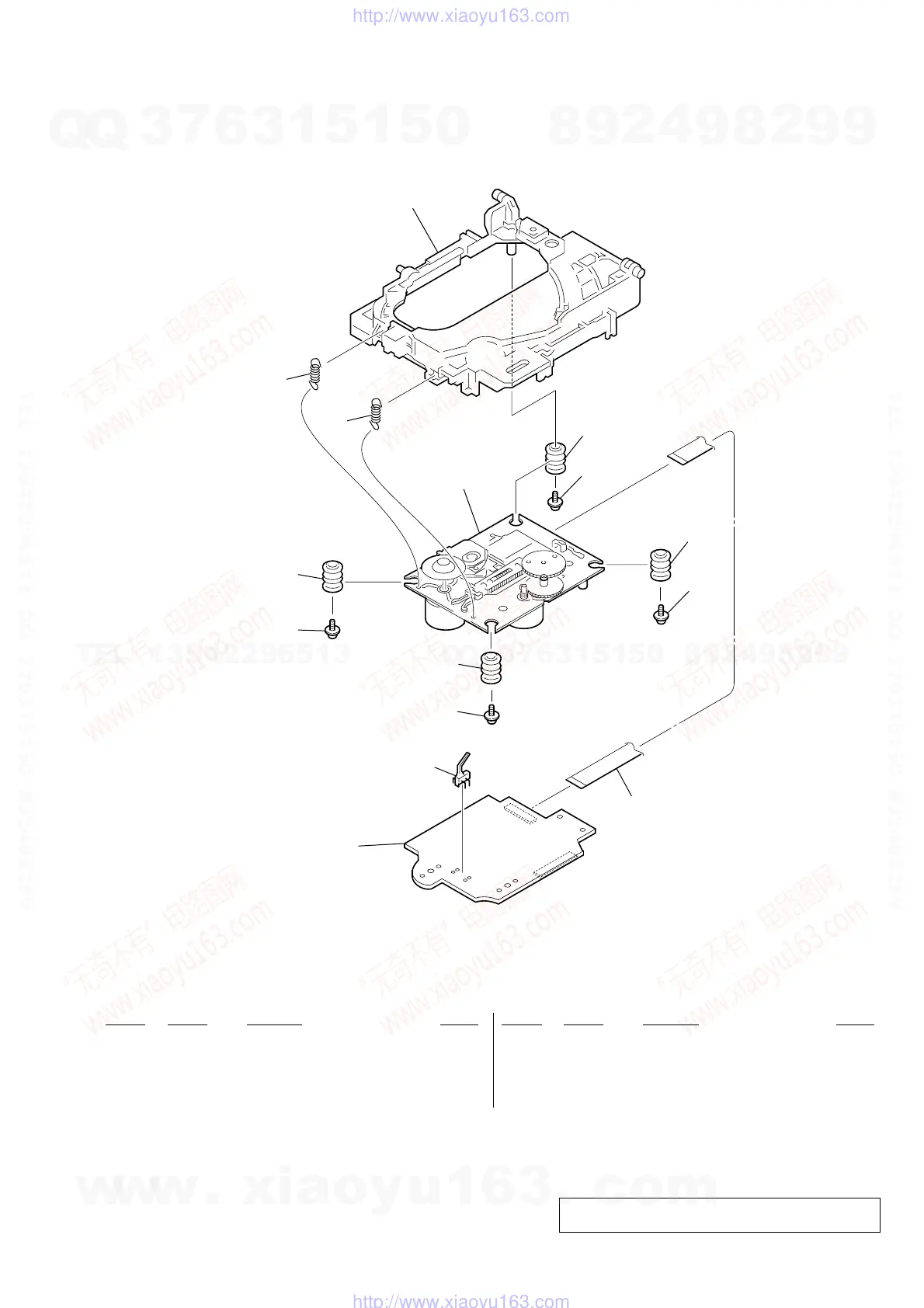

7-8. BASE UNIT SECTION (BU-F4BD83S-WOD)
551
S201
558
556
557
554
553
554
553
554
553
554
555
553
552
551 A-1134-279-A BD83S BOARD, COMPLETE
552 1-827-992-11 WIRE (FLAT TYPE) (16 CORE)
553 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
554 4-992-054-11 RUBBER, VIBRATION PROOF
0 555 8-820-252-01 OPTICAL PICK-UP (KSM-215CFP/C2NP)
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
556 2-059-837-01 SPRING (G-1), TENSION COIL
557 2-059-838-01 SPRING (G-2), TENSION COIL
558 X-2109-089-1 HOLDER (BU215T) ASSY
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
