HCD-U1BT
DIAGRAMS

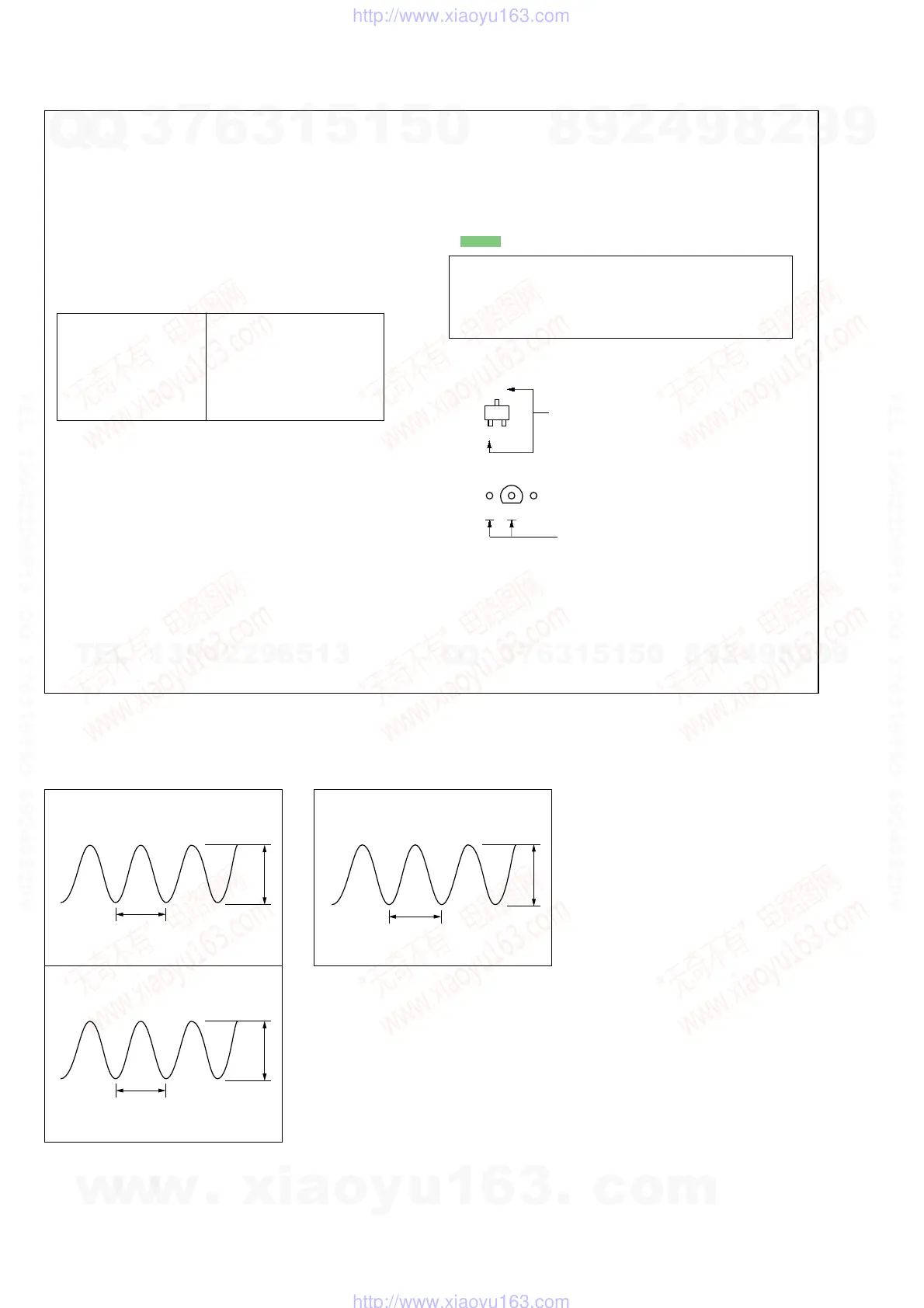

Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• f : internal component.
• 2 : nonflammable resistor.
• C : panel designation.
• A : B+ Line.
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
No mark: CD PLAY
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
J : CD
d : TUNER
f : USB
N : BLUETOOTH
•Abbreviation
CND : Canadian model
KR : Korean model
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• f : internal component.
• : Pattern from the side which enables seeing.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
C
B
These are omitted.
E
Q
• Indication of transistor.
Caution:
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Note:
The components identi-
fied by mark 0 or dot-
ted line with mark 0 are
critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés
par une marque 0 sont cri-
tiques pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
– PANEL Board ––
1
IC302 qg (X IN)
198 ns
2.46 Vp-p
1 V/DIV, 100 ns/DIV
1 IC107 0 (XC IN)
30.6
µ
s
1.5 Vp-p
500 mV/DIV, 10
µ
s/DIV
2 IC107 qg (X IN)
201 ns
2.78 Vp-p
1 V/DIV, 100 ns/DIV
– MAIN Board –
•Waveforms
Ver. 1.3
