Note:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 69 —
SECTION 7
EXPLODED VIEWS

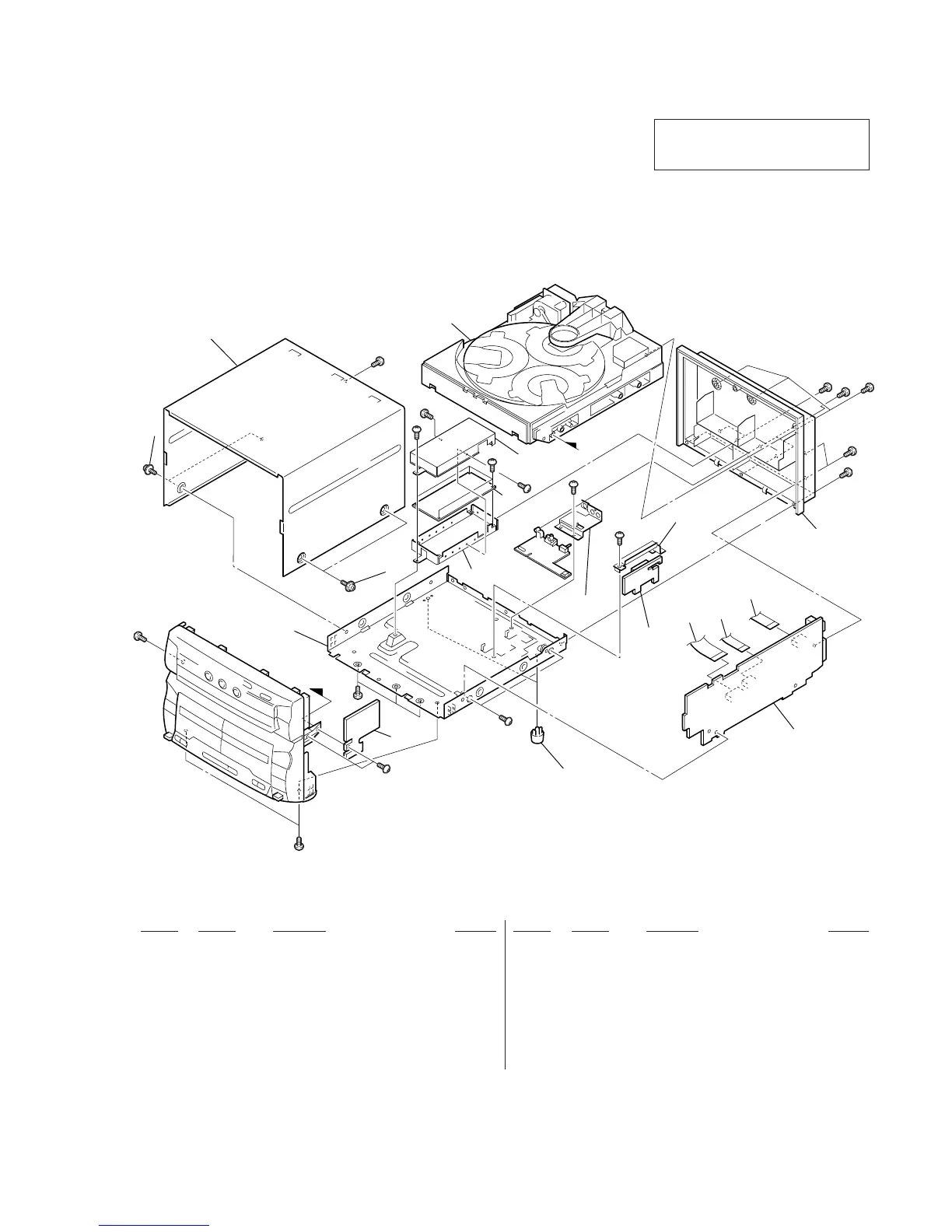

7-1. MAIN SECTION
1
2
1
8
10
9
7
5
6
4
3
#2
CDM38-5BD21
#1
not supplied
#2
#3
#1
#2
#2
not supplied
#1
#1
#1
#1
#1
#2
#1 #2
#1
#2
not supplied
not supplied
not supplied
11
Ref. No.Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-363-099-11SCREW (CASE 3 TP2)
* 2 4-991-364-31CASE
* 3 4-991-349-11PANEL, BACK
4 1-751-086-11WIRE (FLAT TYPE) (13 CORE)
5 1-765-325-11WIRE (FLAT TYPE) (11 CORE)
6 1-773-155-11WIRE (FLAT TYPE) (21 CORE)
* 7 A-4403-279-AMAIN BOARD, COMPLETE (MY,SP,KR,HK,CH)
* 7 A-4403-712-AMAIN BOARD, COMPLETE (TH)
* 7 A-4403-716-AMAIN BOARD, COMPLETE (IA)
* 8 1-666-004-11RESISTOR BOARD
9 4-970-381-11FOOT (REAR)
* 10 1-666-009-11DUMMY BOARD
* 11 A-4398-587-AVIDEO BOARD, COMPLETE (IA,TH)
* 11 A-4398-576-AVIDEO BOARD, COMPLETE (MY,SP,KR,HK,CH)
* 12 1-666-010-11VIDEO IN BOARD
• Abbreviation
MY: Malaysia CH : Chinese
SP : Singapore TH : Thai
HK : Hong Kong IA : Indonesian
KR : Korean
To Next Page
