Sony HCD-V5500 - Tape Mechanism Deck Section-2; (Tcm-220 Wr2 E)

— 75 —

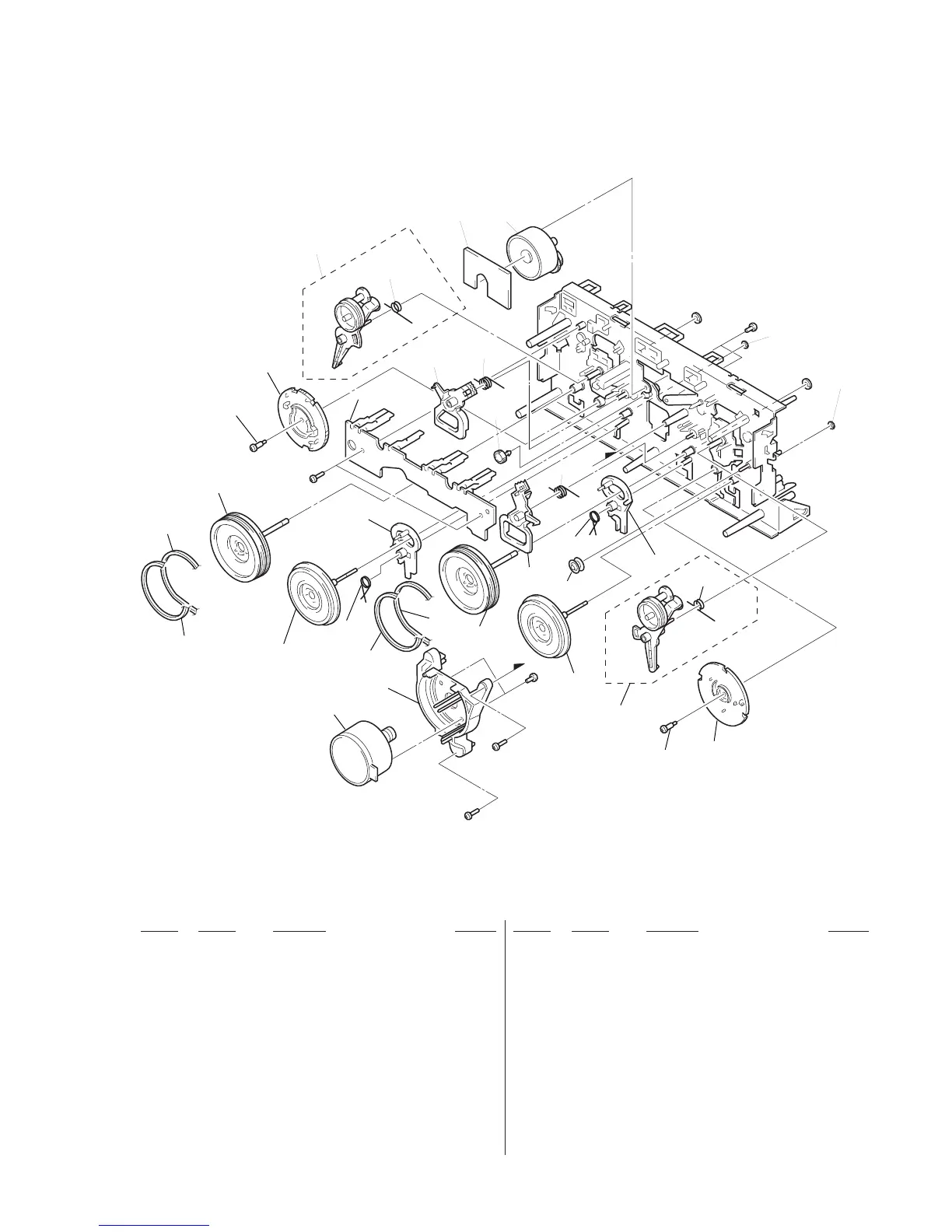

7-7. TAPE MECHANISM DECK SECTION-2
(TCM-220WR2E)
• C: MOTOR board
not supplied
#10
#10
#5
#7
M2
#11
#12
#11
● C
A
A
M1
423
413
409
414
407
413
412
424
404
403
402
401
405
408
407
410
411
420
410
402
417
418
419
416
421
421
419
406
415
Ref. No.Part No. Description Remarks Ref. No. Part No. Description Remarks
401 3-908-597-01CAM (A)
402 3-908-608-11SCREW, STEP
403 X-3372-930-1ARM (A) ASSY, FR
404 X-3370-169-1FLYWHEEL (AR) ASSY
405 3-928-047-01PULLEY, TENSION
406 3-908-599-01LEVER (REV-A)
407 3-908-601-01SPRING (REV LEVER), TORSION
408 3-908-603-01LEVER (TRIGGER A)
409 X-3367-593-1FLYWHEEL (BF) ASSY
410 3-908-605-01SPRING (TRIGGER), TORSION
411 3-908-609-01GEAR, TRIGGER
412 3-913-845-11BELT (A)
413 3-913-846-11BELT (FR)
414 X-3370-171-1FLYWHEEL (BR) ASSY
415 3-908-600-01LEVER (REV-B)
* 416 1-650-669-11LEAF SWITCH BOARD
417 3-908-598-01CAM (B)
418 X-3372-931-1ARM (B) ASSY, FR
419 3-911-114-01SPRING (FR), TORSION
420 3-908-604-01LEVER (TRIGGER B)
421 3-911-115-01W ASHER, STOPPER
423 3-917-176-11BELT (B)
424 X-3370-172-1FLYWHEEL (AF) ASSY
M1 A-2004-409-AMOTOR ASSY, CAPSTAN
M2 A-2004-410-AMOTOR ASSY, DC
