Sony HCD-V5500 - 3 Disassembly; Back Panel, CD Block Removal; Cassette Lid (A);(B) Assy, Mechanism Deck Removal

— 5 —
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
CASE
Unscrew the five case attachment in the screws (case)
(M3 × 8) × 4, (+BV 3 × 8) × 1 and remove the case.

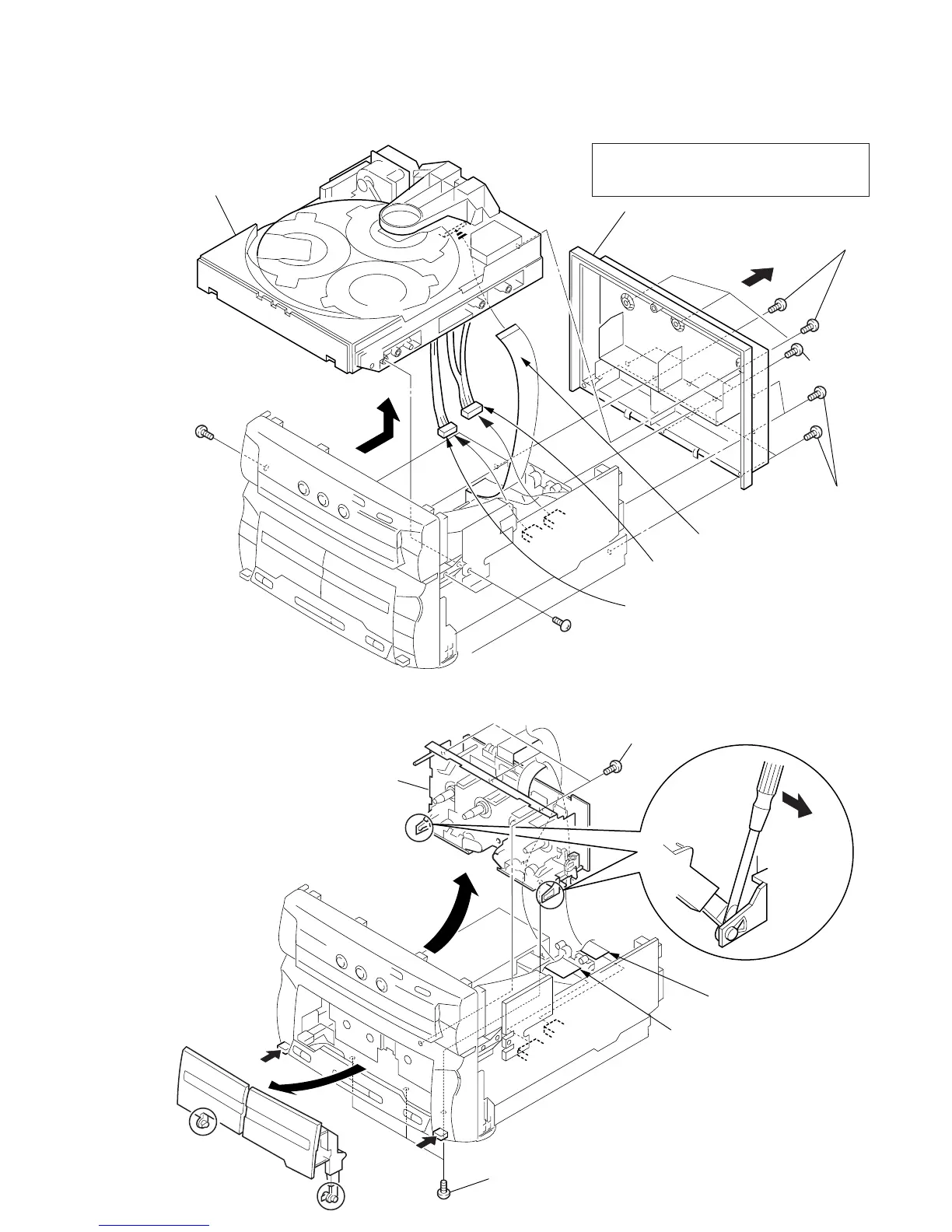

3-1. BACK PANEL, CD BLOCK REMOVAL
8 Screw
+BVTP 3
× 10
1 Screw
+BVTP 3
× 1
0
1 Screw
+BVTP 3
× 10
7 Screw
+BVTP 3
× 10
6 CN111 (8 pin)
5 CN112 (9 pin)
4 Flat wire (19 core)
9 CD block
3 Back panel
2 Screw
+BVTP 3
× 8
3-2. CASSETTE LID (A)/(B) ASSY, MECHANISM DECK REMOVAL
1 Press the EJECT button and open the cassette lid.
6 Screw
+BVTT 3
× 8
7 Screw
+BVTP 2.6
× 8
4 Flat wire (11 core)
5 Flat wire (21 core)
Mechanism Deck (TCM-220WR2E)
2
8
1
1
3
