Sony HCD-V5500 - CD Mechanism Deck Section-2; (Cdm38-5 Bd21)

— 72 —

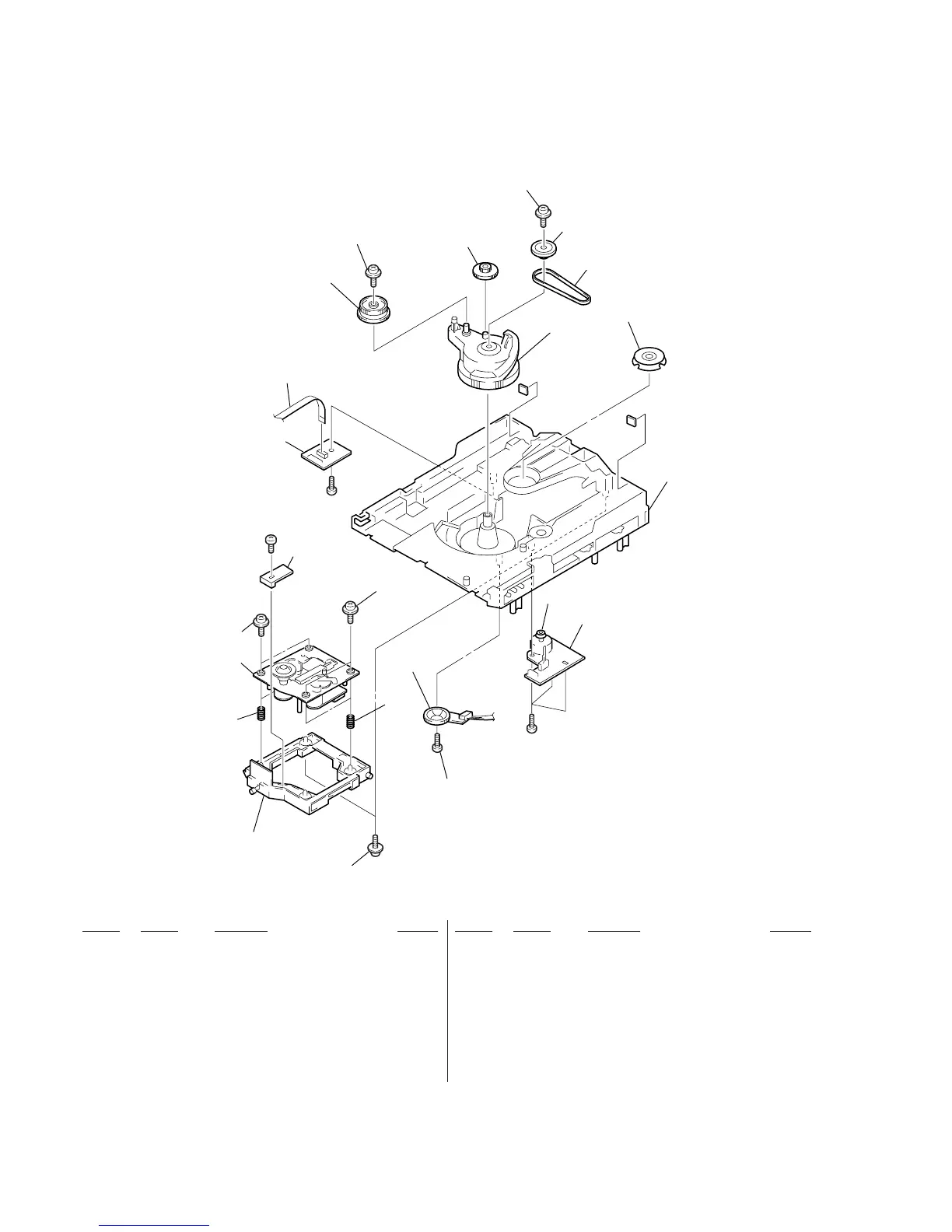

7-4. CD MECHANISM DECK SECTION-2
(CDM38-5BD21)
251
252
253
255
251
254
256
257
258
259
260
261
261
263
263
265
251
264
262
M801
S811
BU-5BD21
#1
#2
#1
not supplied
251 4-917-583-71BRACKET, YOKE (IA,TH)
252 4-977-954-01PULLEY (SL)
253 4-977-953-01GEAR (SL-A)
254 4-977-955-01GEAR (SL-B)
255 4-977-942-01BELT (SL) (1.4)
256 X-4946-667-1CAM ASSY, BU
257 1-452-925-11MAGNET ASSY
258 1-776-042-11WIRE (FLAT TYPE) (8 CORE)
* 259 1-658-575-11CONNECTOR, BOARD
* 260 X-4946-668-1CHASSIS (CDM) ASSY
261 4-985-672-01SCREW (+PTPWHM2.6), FLOATING
* 262 1-658-578-11MOTOR (SLIDE) BOARD
263 4-982-447-01SPRING (BU), COMPRESSION
264 4-951-620-41SCREW (2.6), +BVTP
* 265 X-4946-666-1HOLDER (BU) ASSY
M801 A-4672-004-AMOTOR ASSY (SLED)
S811 1-473-335-11ENCODER, ROTARY (BU, TRAY ADDRESS DET)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
