Sony HCD-V5500 - Tape Mechanism Deck Section-1; (Tcm-220 Wr2 E)

— 74 —

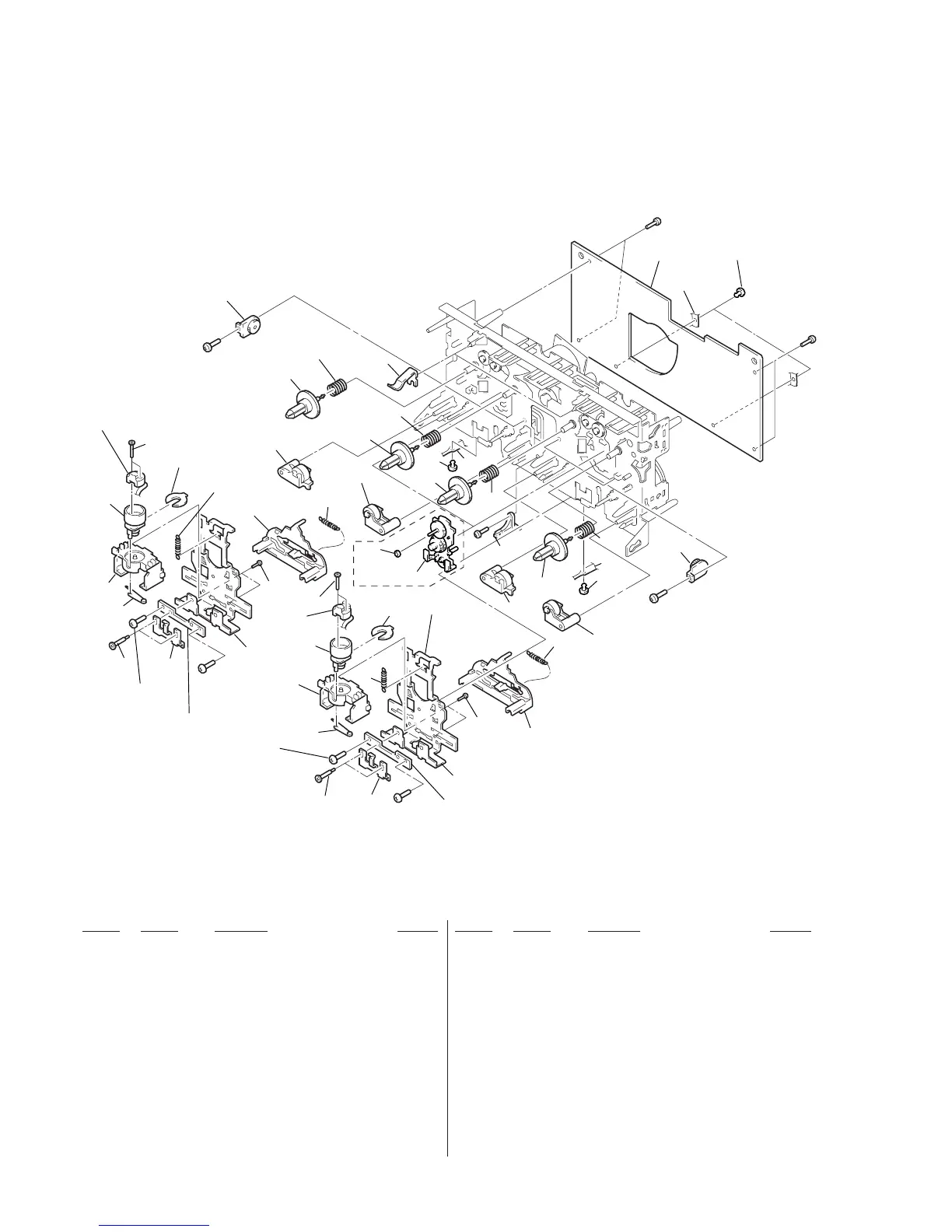

7-6. TAPE MECHANISM DECK SECTION-1
(TCM-220WR2E)
356
355
354
352
351
357
359
358
360
353
356
355
354
352
351
353
359
357
368
360
358
361
363
361
362
364
374
365
373
366
370
363
371
364
367
362
366
371
370
374
365
372
(including ● C)
371
● A
● B
● A
HRPE101
(including
● B)
not supplied
HP101
(including
● A)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#9
#9
#9
#7
#7
● B
#
8
#8
369
351 3-908-560-01SPRING, AZIMUTH ADJUSTMENT
352 3-919-684-01SCREW, AZIMUTH ADJUSTMENT
353 X-3373-113-1SLIDER (HEAD) ASSY
354 3-908-556-01SPRING, HEAD TOGGLE
355 3-908-558-02FITTING BLOCK, HEAD
356 3-908-557-02ROTARY BLOCK, HEAD
* 357 3-908-559-01STOPPER, AZIMUTH
358 3-908-555-01SLIDER (REV SLIDER)
359 3-917-143-11SPRING, TENSION
360 3-388-848-01SCREW (P2X6) (B TIGHT)
361 3-939-371-01SPRING (1), TENSION
362 X-3369-909-1PINCH LEVER (REV) ASSY
363 X-3369-908-1PINCH LEVER (FWD) ASSY
364 3-908-613-01GEAR (S), REEL
365 3-917-141-01SPRING, COMPRESSION
366 X-3371-305-1REEL (T) ASSY
367 3-669-465-01W ASHER (1.5), STOPPER
368 X-3370-173-1TU ASSY
* 369 4-980-439-01FULCRUM, HOLDER
370 3-917-142-01SPRING, COMPRESSION
371 3-939-862-01CLIP
* 372 A-2007-435-AAUDIO BOARD, COMPLETE
373 3-930-972-01DETENT, HALF
374 3-354-963-01DAMPER
HP101 1-500-093-11HEAD, MAGNETIC (PLAYBACK)(DECK A)
HRPE1011-500-094-11HEAD, MAGNETIC (REC/PB/ERASE)(DECK B)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
