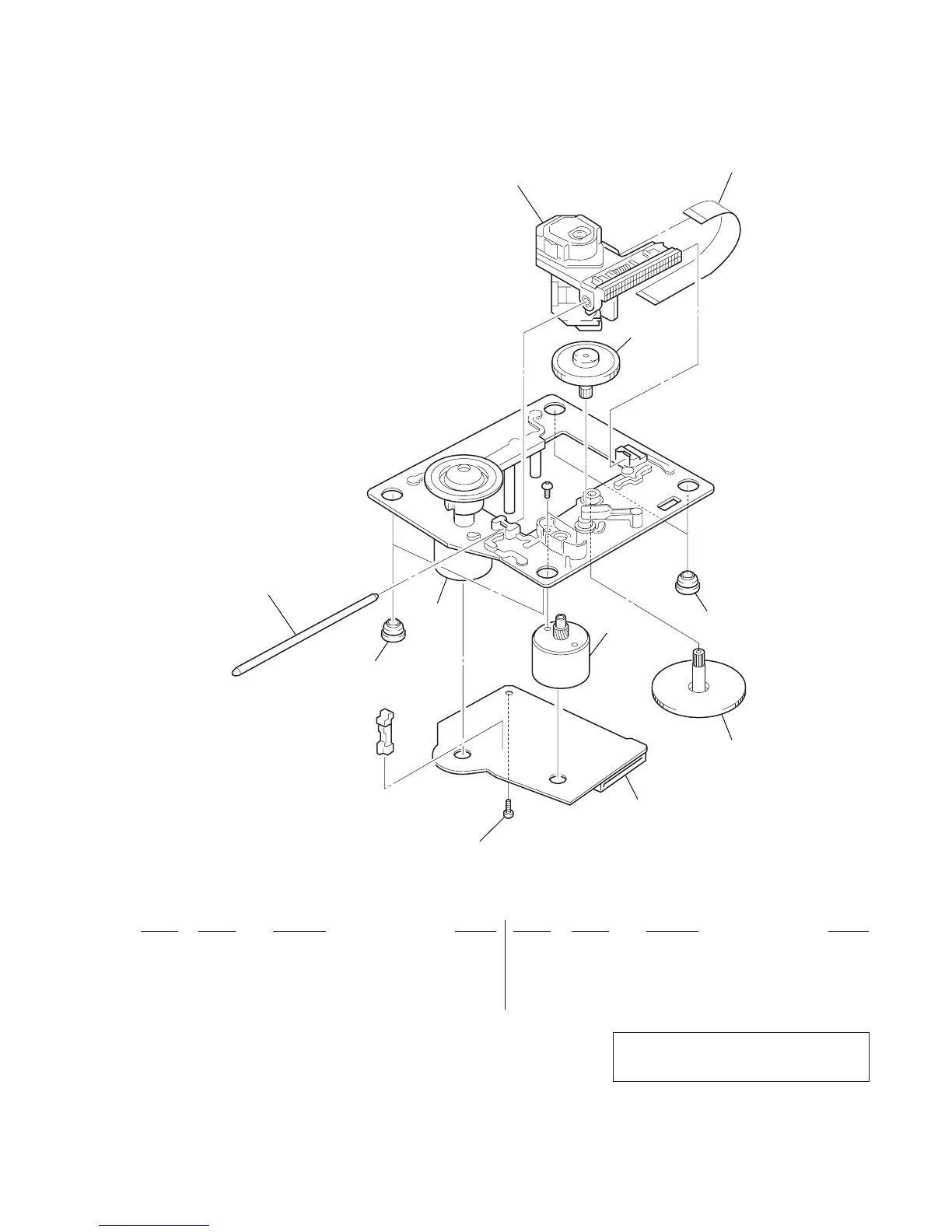

7-5. BASE UNIT SECTION
(BU-5BD21)
M101
M102
#6
305
304
308
307
306
304
303
301
302
Ref. No.Part No. Description Remarks Ref. No. Part No. Description Remarks
! 301 8-848-379-31OPTICAL PICK-UP KSS-213B/S-N
302 1-769-069-11WIRE (FLAT TYPE) (16 CORE)
303 4-917-567-01GEAR (M)
304 4-951-940-01INSULATOR (BU)
305 4-917-565-01SHAFT, SLED
306 4-917-564-01GEAR (P), FLATNESS
307 A-4673-557-ABD (A) BOARD, COMPLETE
308 4-951-620-01SCREW (2.6X8), +BVTP
M101 X-4917-523-3MOTOR ASSY (SPRING)
M102 X-4917-504-1MOTOR ASSY (SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
