Sony HCD-V5500 - Main Board, Resistor Board, Video Board, Video in Board, Front Panel Assy Removal

— 6 —

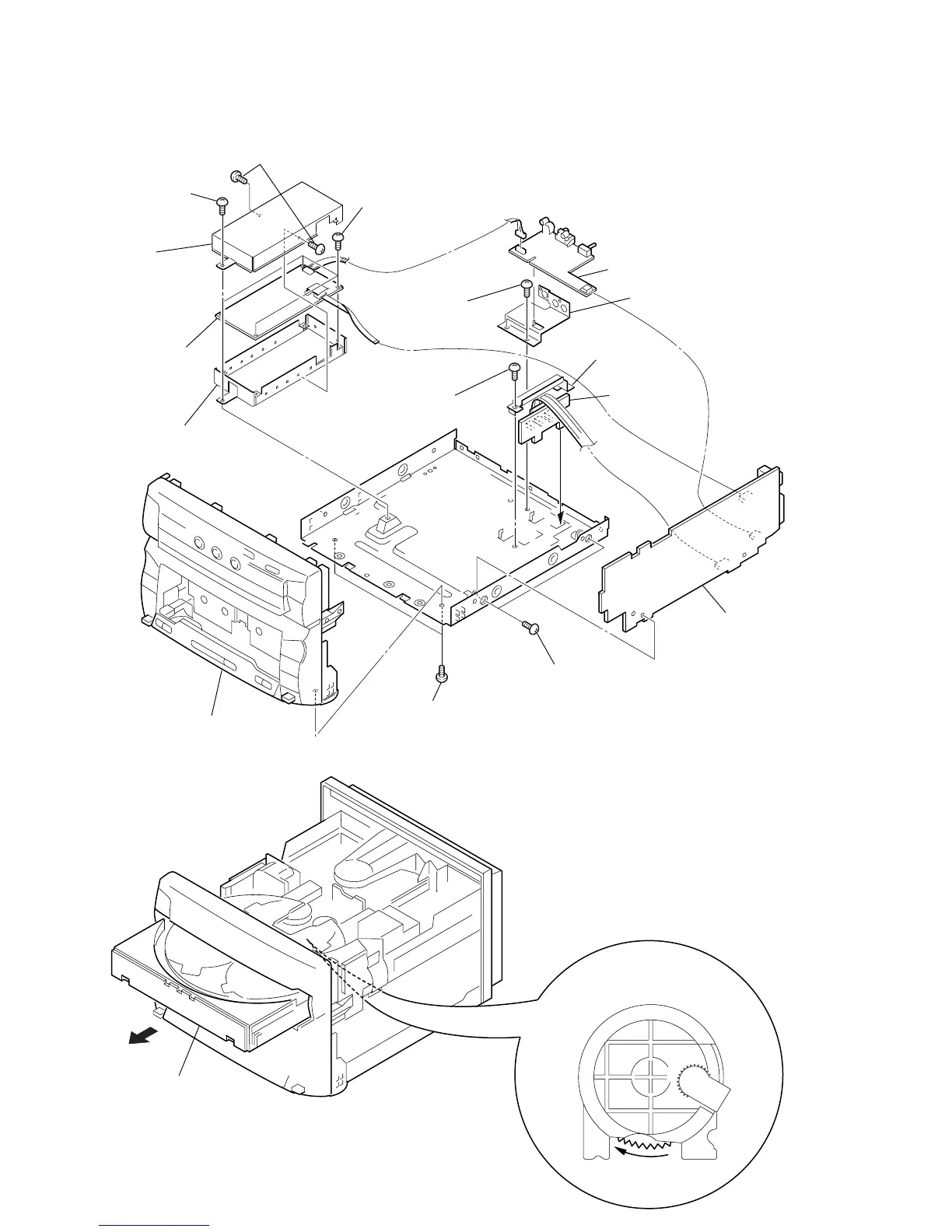

3-3. MAIN BOARD, RESISTOR BOARD, VIDEO BOARD, VIDEO IN BOARD,
FRONT PANEL ASSY REMOVAL
!£ Screw
+BVTP 3
× 8
2 Front panel assy
!§ Screw
+BVTP 3
× 8
1 Screw
+BVTP 3
× 8
!¢ Bracket (H/S)
!∞ Resistor board
!¶ Main boar
d
6 Screw
+BVTP 3
× 10
3 Screw
+BVTP 3
× 10
7 Bracket V (T)
9 VIDEO board
8 Screw
+BVTP 3
× 8
5
!º Screw
+BVTP 3
× 8
4
!¡ VIDEO IN board
!™ Bracket (BP)
7 Bracket V (B)
• Tray (Slide) getting out procedure on the power supply is OFF
Rotate the BU CAM assembly in the direction of the arrow and pull out the slide.
Tray (Slide)
1
BU CAM assy
