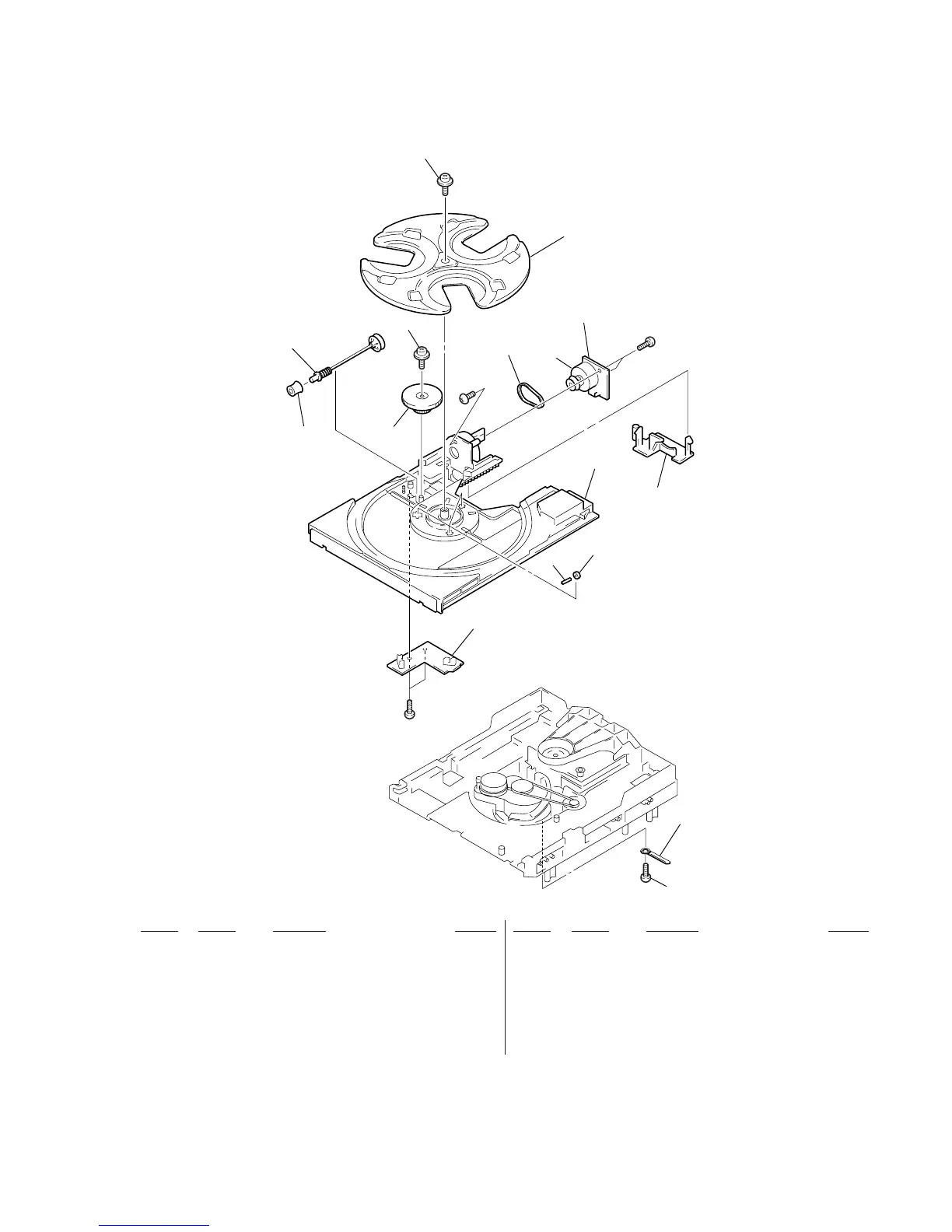

7-3. CD MECHANISM DECK SECTION-1
(CDM38-5BD21)
201
202
203
201
211
205
204
206
208
212
210
207
209
#2
#1
#4
M701
213
not supplie
d
201 4-917-583-71BRACKET, YOKE
202 4-977-945-01TRAY (TURN)
203 X-4946-665-1SHAFT ASSY, WORM
204 4-977-943-01BELT (TURN) (1.2)
205 4-977-956-01WHEEL, WORM
* 206 1-658-577-11MOTOR (TURN) BOARD
207 X-4924-457-1ROLLER ASSY
208 4-977-941-01BEARING (WORM)
* 209 1-658-576-11SENSOR BOARD
210 4-934-376-01SHAFT (ROLLER)
211 4-981-187-01COLLAR (WORM)
212 4-977-944-01TRAY (SLIDE)
213 4-951-620-01SCREW (2.6X8), +BVTP
M701 A-4672-004-AMOTOR ASSY (TURN)
