Sony HCD-VP1 - General Information; Location of Controls

3
SECTION 1
GENERAL

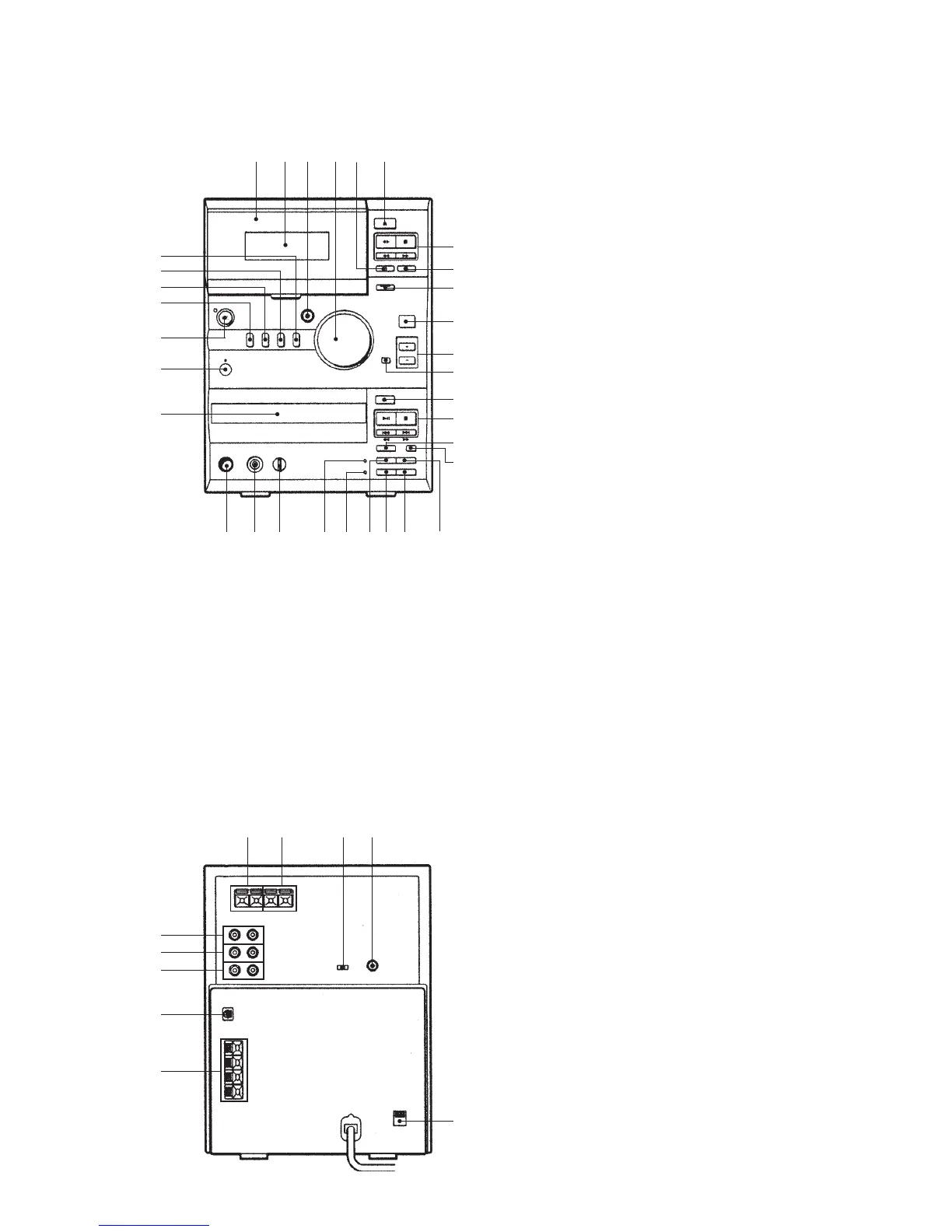

LOCATION OF CONTROLS
• Front View
1 Tape deck
2 Liquid crystal display
3 DSG button and indicator
4 VOLUME knob
5 TAPE P button
6 TAPE 6 button
7 TAPE œ, p, 0, ) buttons
8 TAPE REC r button
9 CD SYNC button and indicator
0 TUNER/BAND button
!¡ TUNING +/– buttons
!™ TUNING MODE button
!£ CD EJECT 6 button
!¢ CD ^, p, =/0, +/) buttons
!∞ CD PLAY MODE button
!§ CD REPEAT button
!¶ TUNER button and indicator
!• CD button and indicator
!ª TAPE button and indicator
@º MD/VIDEO button and indicator
@¡ 1/u button and indicator
@™ Remote sensor
@£ CD disc tray
@¢ PHONES jack
@∞ MIC IN jack
@§ MIC VOL knob
@¶ VCD ON indicator
@• PBC indicator
@ª SELECT button
#º PREV button
#¡ RETURN button
#™ NEXT button
1
2 3
4 5
6
8
7
9
!º
!¡
!™
!¶
!§
!∞
!£
!¢
!ª
@º
@¡
@™
@£
@¢
@∞
@§
@¶
@• @ª
#¡
!•
#º
2
1
5
6
7
8
9
0
• Rear View
#™
4
3
1 AM ANTENNA terminals
2 FM ANTENNA terminals
3 SYSTEM SELECT switch
4 VIDEO OUT jack
5 POWER SELECT switch
6 LINE OUT jacks
7 MD IN jacks
8 VIDEO IN jacks
9 OPTICAL DIGITAL OUT (CD)
0 SPEAKER terminals
