Sony HCD-VP1 - Printed Wiring Board - POWER Board; Schematic Diagram - POWER Board

30
HCD-VP1
30

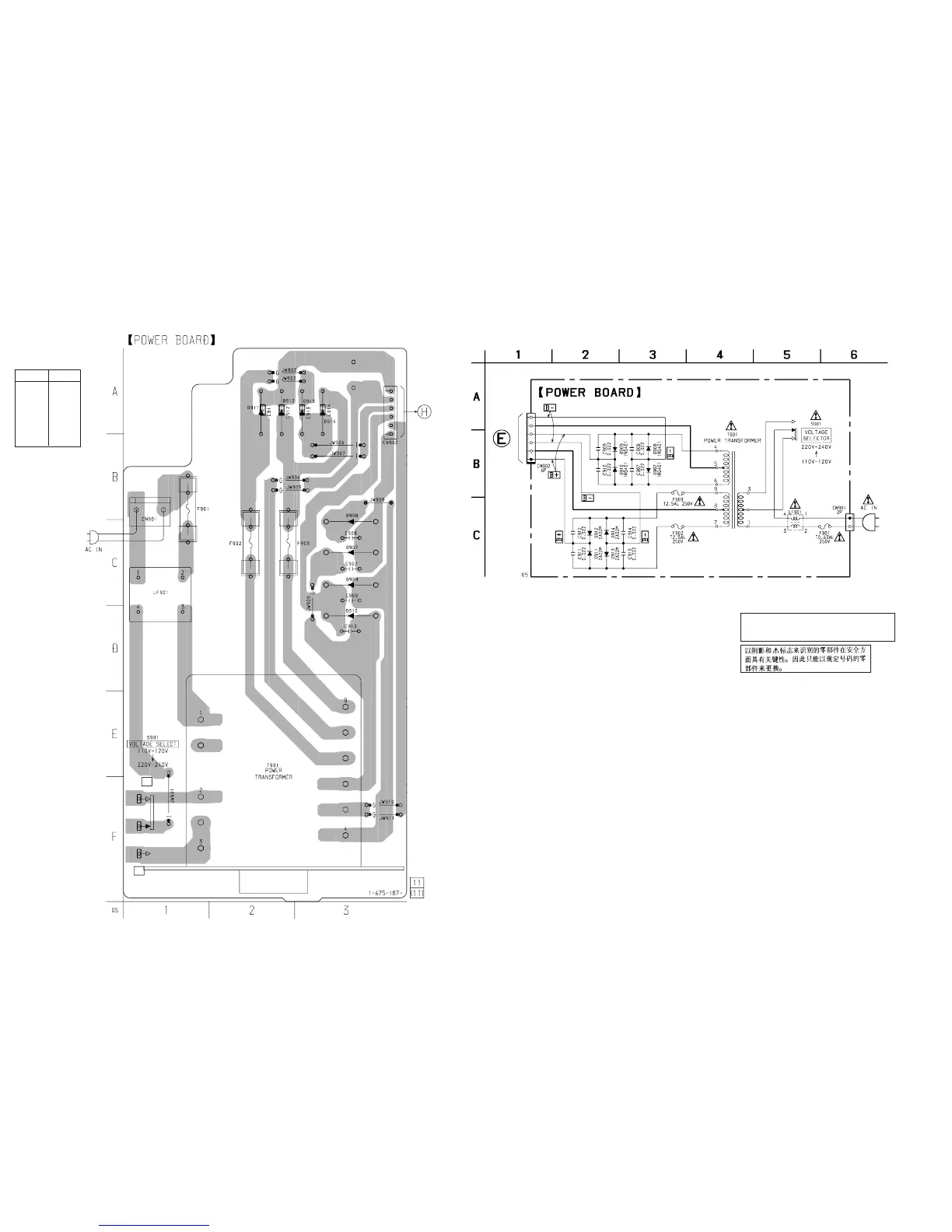

5-16. PRINTED WIRING BOARD – POWER Board – • See page 19 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D907 C-3
D908 C-3
D909 C-3
D910 D-3
D911 A-2
D912 A-2
D913 A-3
D914 A-3
5-17. SCHEMATIC DIAGRAM – POWER Board –
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(Page 26)
(Page 23)
