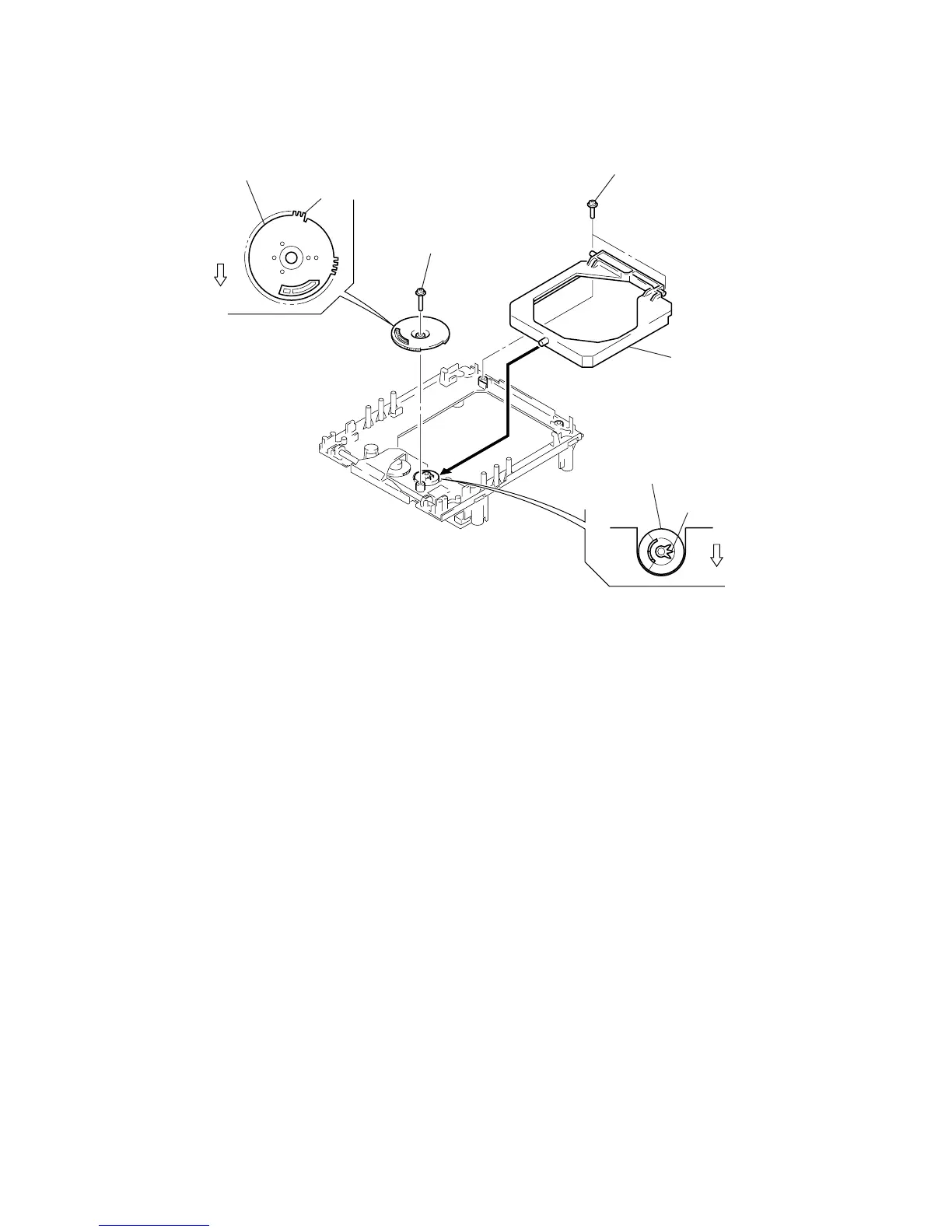

2 Install the drive gear with gear
position as shown in figure.
gear
front side
1 Install the control cam
with gear position as shown
in figure.
gear
front side
3 screw
(PTPWH2.6 × 16)
5 two screws
(PTPWH2.6 × 7)
4 sub chassis
• SUB CHASSIS INSTALLATION
Note: Follow the assembly procedure in the numerical order given.
