HCD-VX333

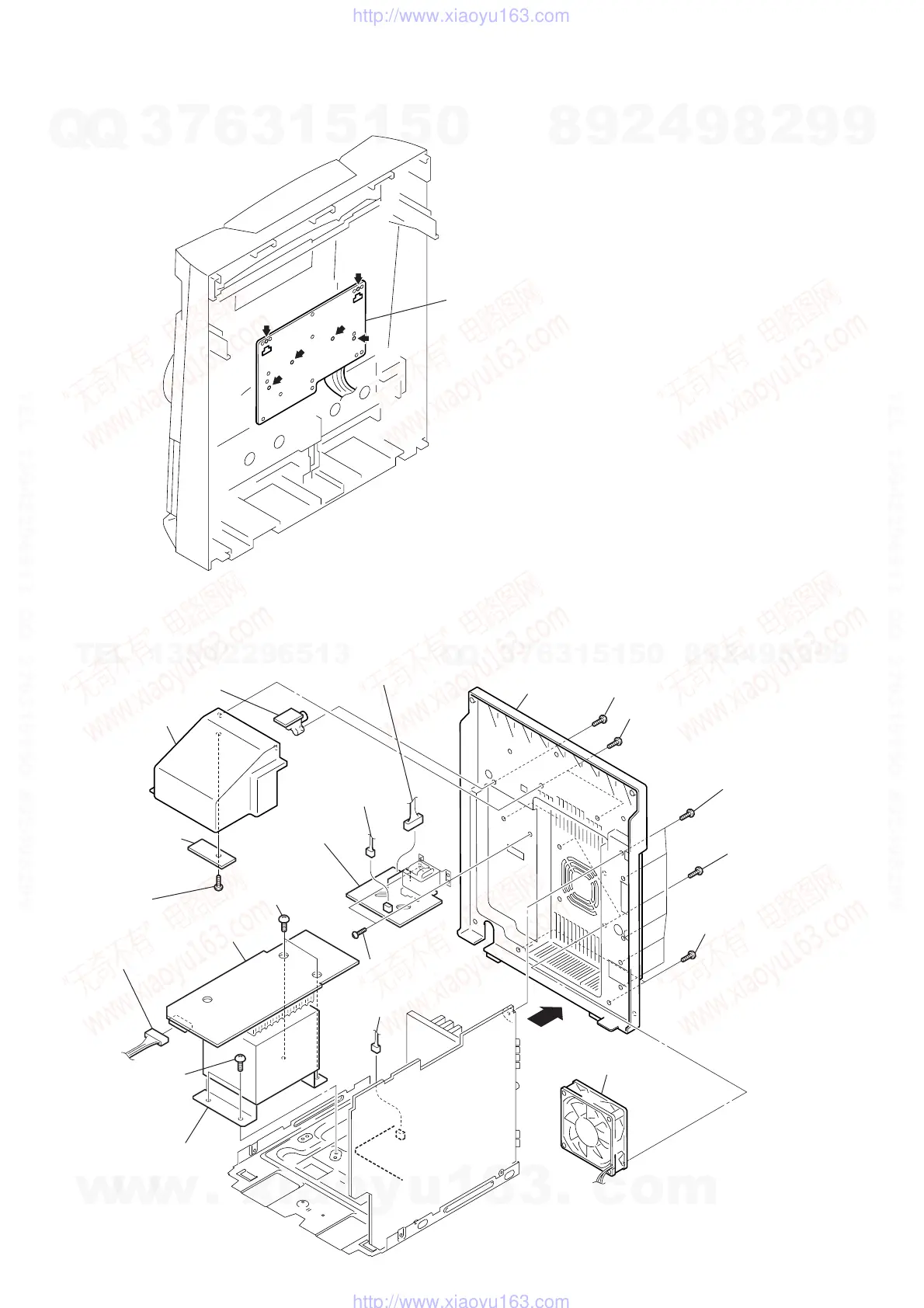

3-6. KEY BOARD
3-7. SUB TRANS BOARD, TRANS BOARD, SENSOR BOARD AND VIDEO OUT BOARD
Note: When attching the Key board,
refer to "Service Note" on page 4.
2
KEY board
1
Cut the six melted-connection points with a cutting plier.
6
Two screws
(+BVTT 4
×
6 (S))
qf
Five screws
(+BVTP 3
×
8 TYPE2 N-S)
qg
Two screws
(+BVTT 3
×
6 (S))
qh
qj
Two screws
(+BVTP 3
×
8 TYPE2 N-S
q;
Two screws
(+BVTP 3
×
8 TYPE2 N-S)
ql
Screw (+BVTP 3
×
8 TYPE2 N-S)
Back panel
7
Two screws
(+BVTT 4
×
6 (S))
8
Power
transformer
(T911)
5
Connector 13P (CN915)
1
Connector 4p (CN2)(EXCEPT THAI)
Connector 2p (CN2)(THAI)
2
Connector 3p
(CN903)
9
Connector 2p
(CN504)
qd
SENSOR board
qs
Cover (Duct)
w;
VIDEO OUT board
qa
Screw
(+BVTP 3
×
8 TYPE2 N-S)
4
SUB TRANS
board
qk
Fan, DC (M961)
TRANS board
3
Two
screws
(+BVTP 3
×
8 TYPE2 N-S)
