Sony HCD-VX333 - Tape Mechanism Deck Disassembly; Panel Board Disassembly

9
HCD-VX333

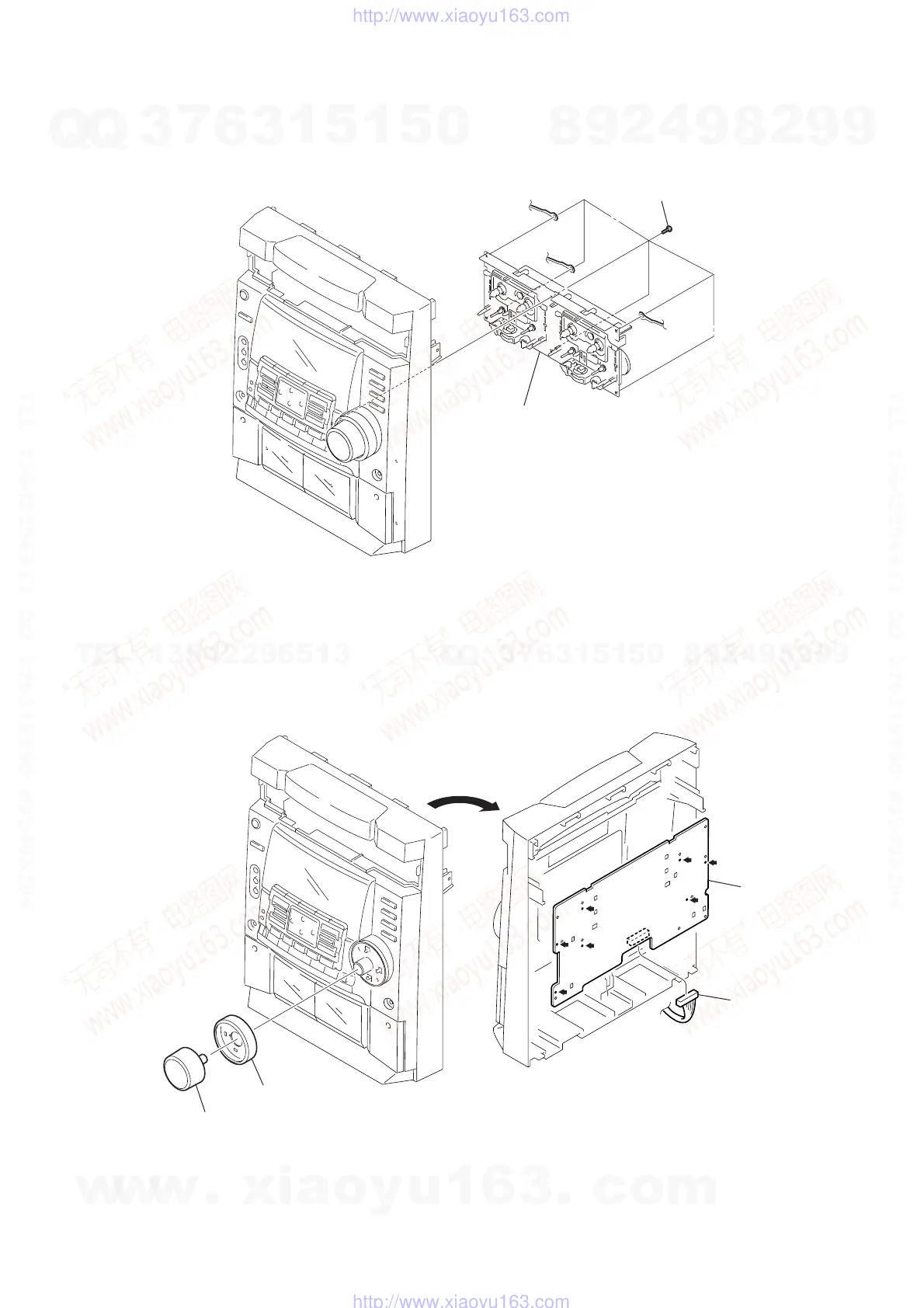

3-4. TAPE MECHANISM DECK
3-5. PANEL BOARD
1 Six screws
(+BVTP 2.6
× 8
)
2 Deck, Mecha
1 Volume knob
2 Vol knob ring
4 Connector
13p (CN712)
Note: When attching the panel board,
refer to "Service Note" on page 4.
6 PANEL boar
d
3
5 Cut the seven melted-connection points with a cutting plier.
