Sony HR TRINITRON PVM-8045Q User Manual

2-2
S MIC Chassis

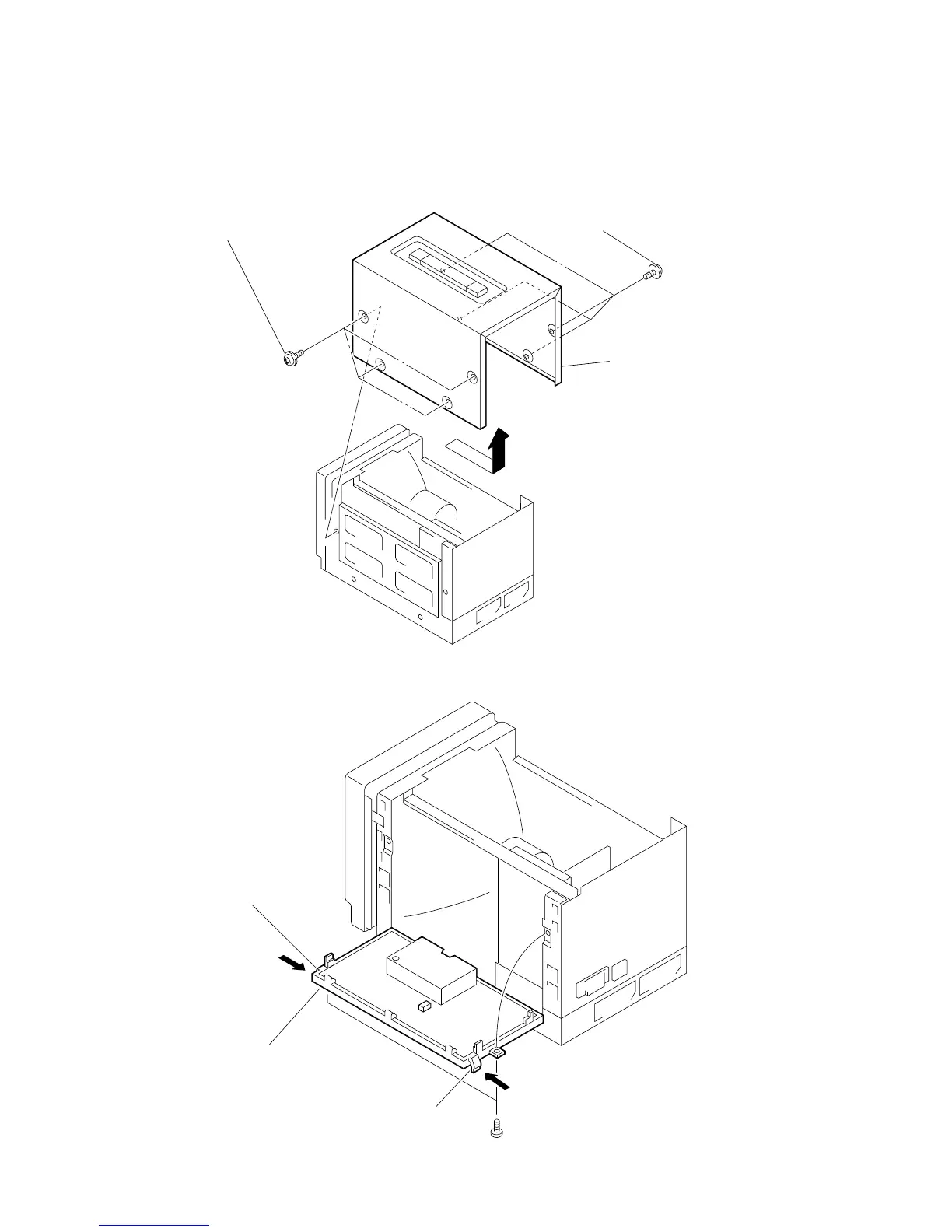

2-2. DISASSEMBLY
2-2-1. Cabinet Removal
2-2-2. B Board Removal
Remove the four case fixing
screws (4 x 6).
3 Remove the cabinet.

1
Remove the four case fixing
screws (4 x 6).
2
4 Open the B board.
2 Unhook the claw.
3 Unhook the claw.
1 Remove the two screws (BVTP3 x 8).
