7-1
S MIC Chassis

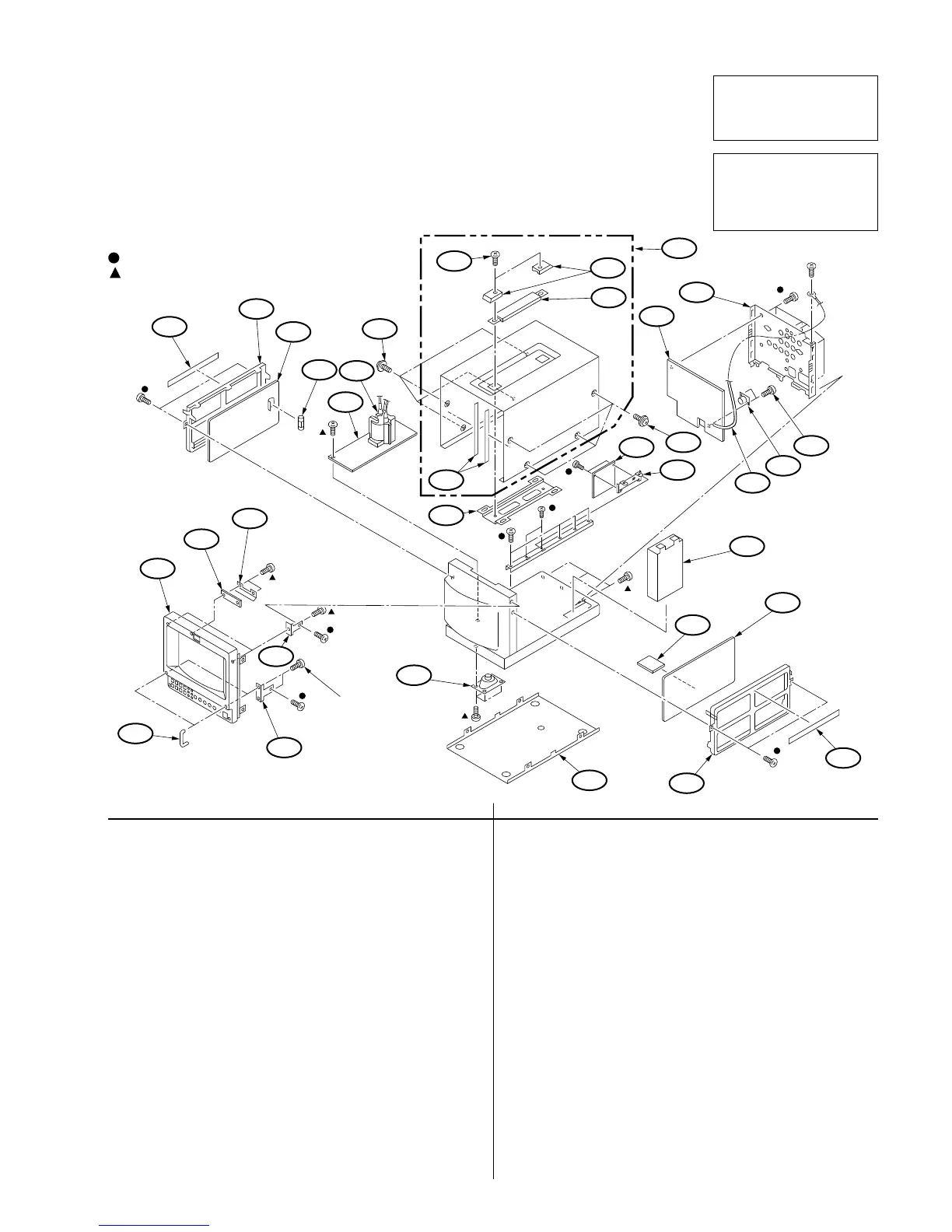

7-1. CHASSIS
: 7-685-646-79 +BVTP3 x 8
: 7-685-648-79 +BVTP3 x 12
SECTION 7
EXPLODED VIEWS
NOTE:
. Items with no part number and no
description are not stocked because they
are seldom required for routine service.
. The construction parts of an assembled
part are indicated with a collation number
in the remark column.
. Items marked “*” are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
Les composants identifies par
une marque
! sont critiques
pour la securite. Ne les
remplacer que par une piece
portant le numero specifie.
The components identified by
mark
! are critical for safety.
Replace only with part number
specified.
1 X-4036-091-1 BEZEL ASSY
(PVM-8045Q, 9045QM, 9045PM)
1 X-4036-092-1 BEZEL ASSY (PVM-8042Q, 9042QM)
2 4-037-569-01 HANDLE, PROTECTOR
3 * 4-034-845-01 BRACKET (L), BEZEL
4 * 4-034-846-01 BRACKET (U), BEZEL
5 * 4-035-388-01 PLATE, LIGHT INTERCEPTION
6 * 1-641-724-12 X BOARD
7 1-505-375-11 SPEAKER (4X7CM)
8 * A-1135-964-A B BOARD, COMPLETE
(PVM-8042Q, 8045Q)
8 * A-1135-977-A B BOARD, COMPLETE
(PVM-9042QM, 9045QM)
8 * A-1135-981-A B BOARD, COMPLETE (PVM-9045PM)
9 * A-1394-917-A S BOARD, COMPLETE
10 ! 1-413-720-21 SWITCHING REGULATOR
(SOPS-1021 (A))
11 * A-1346-787-A D BOARD, COMPLETE
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
11 * A-1346-806-A D BOARD, COMPLETE (PVM-9045PM)
12 ! 1-532-747-11 FUSE, GLASS TUBE (5.0A/125V)
(PVM-8042Q, 8045Q, 9045PM)
12 ! 1-576-232-11 FUSE (H.B.C) (5.0A/250V)
(PVM-9042QM, 9045QM)
13 * A-1195-146-A P BOARD, COMPLETE
14 ! 1-439-526-11 TRANSFORMER ASSY, FLYBACK
15 4-034-847-01 HANDLE (BASE)
16 3-419-372-31 HANDLE
17 X-4030-165-7 CABINET ASSY 15, 16, 19
18 * X-4030-273-1 REINFORCEMENT ASSY, HANDLE
19 4-035-452-01 SCREW (M4X10)
20 4-034-834-01 SCREW (CLAW) (4X6), CASE
21 * A-1275-162-A QA BOARD, COMPLETE
22 * 4-034-864-81 CHASSIS, R
23 1-555-724-00 WIRE, GROUND
(PVM-8042Q, 8045Q, 9045PM)
23 1-941-913-02 CORE, ASSY, FERRITE
(PVM-9042QM, 9045PM, 9045QM)
24 * 4-034-870-02 CABINET, BOTTOM
25 * 4-035-691-01 CLOTH, VIBRATION PROOF
26 4-035-802-01 SCREW (M2.6X6)
27 1-900-157-02 CONNECTOR ASSY, MICRO 5P
28 * A-1190-333-A PA MOUNT
29 * X-4030-274-1 FRAME ASSY, PWB
30 * 4-067-394-01 HOLDER, PA PWB
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
P4 x 25
7-682-567-09
BVTT4 x 8
7-685-881-09
7
4
3
2
1
5
29
12
14
19
15
16
17
21
22
23
26
27
10
8
9
24
25
29
20
28
18
25
30
13
11
20
6
25
