7-2
S MIC Chassis
PICTURE TUBE

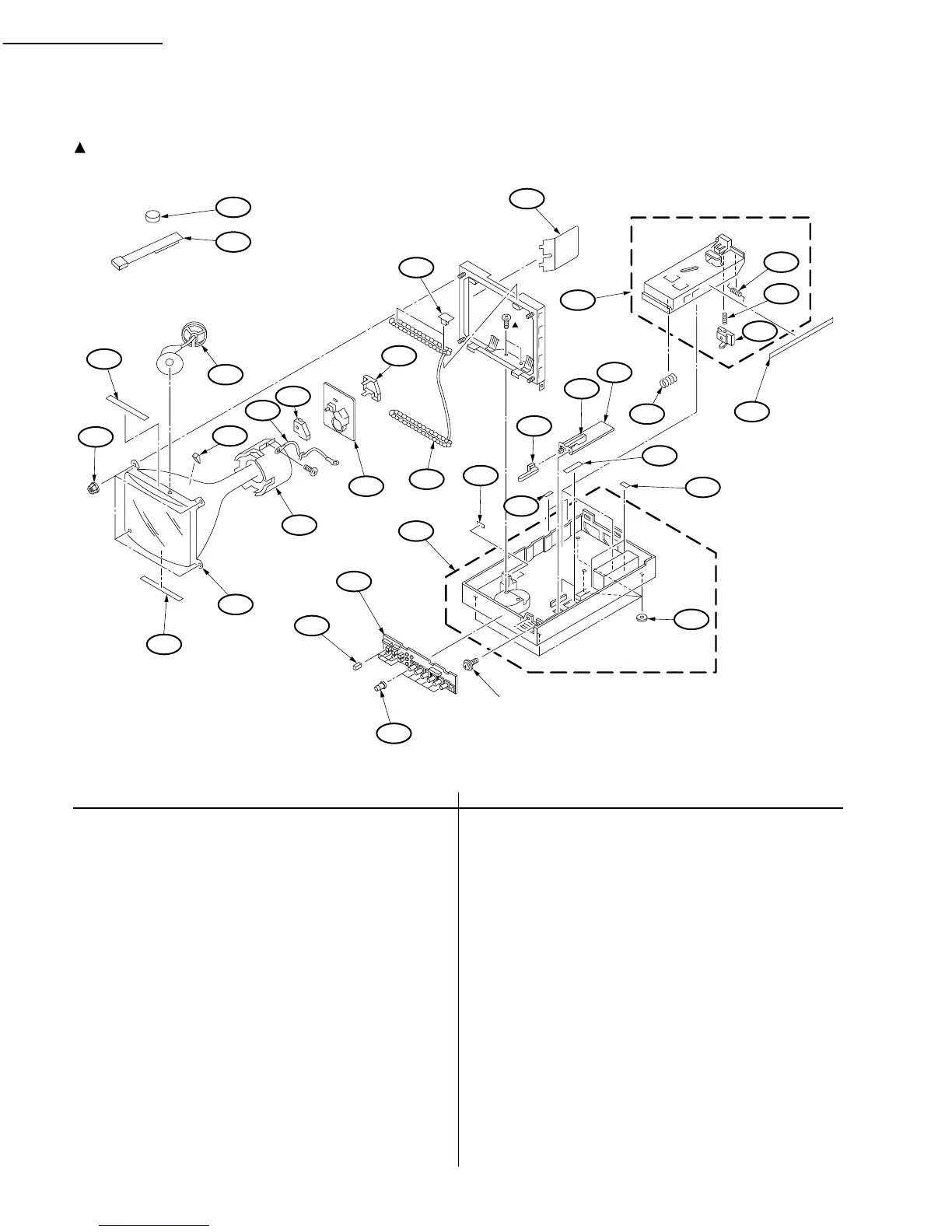

7-2. PICTURE TUBE
: 7-685-648-79 +BVTP3 x 12
51 4-304-511-00 NUT (M5), FLANGE
52 ! 8-737-154-05 PICTURE TUBE SD-167
(PVM-8042Q, 9042Q)
52 ! 8-737-651-05 PICTURE TUBE 09FX
(PVM-8045Q, 9045PM)
53 4-035-332-01 CLOTH, PROTECTION
54 * 4-034-856-01 HOLDER, HV CABLE
55 4-309-369-00 SPACER, DEFLECTION YOKE
56 ! 1-451-319-22 DEFLECTION YOKE (Y9FXC)
57 * A-1331-183-B CA BOARD, COMPLETE
58 * 4-376-133-11 COVER (MAIN), CV VOL
59 * 4-376-132-11 COVER (REAR LID), CV VOL
60 ! 1-416-882-11 COIL, DEMAGNETIC
61 4-380-534-01 CAP, DGC
62 * 4-034-850-01 INSULATOR
63 * A-1372-542-A HA BOARD, COMPLETE
64 4-034-849-01 SWITCH (SMALL), PUSH
65 4-043-802-02 KNOB, CONTROL
66 * A-1241-055-A MOUNTED PWB, FA
(PVM-8042Q, 8045Q, 9045PM)
66 * A-1241-070-A MOUNTED PWB, FA
(PVM-9042QM, 9045QM)
67 ! 1-692-049-11 SWITCH, PUSH (AC POWER) (1 KEY)
(3A/250V) (PVM-8042Q, 8045Q, 9045PM)
67 ! 1-692-050-11 SWITCH, PUSH (AC POWER) 5A/250V
(PVM-8042QM, 9045QM)
68 4-034-841-11 BUTTON, POWER SWITCH
69 * X-4036-112-2 CHASSIS ASSY, BOTTOM
70 4-034-840-01 RUBBER, FOOT
71 * X-4030-163-1 GUIDE ASSY, BATTERY
72 4-034-861-01 KNOB, BATTERY
73 4-876-347-01 SPRING, COMPRESSION
74 3-669-594-00 SPRING, COMPRESSION
75 * 1-452-884-11 MAGNET
76 * 3-669-592-00 SPRING (A), TORSION
77 1-923-511-84 WIRE UL1007 AWG18 110MM BLK
78 * 4-036-047-02 RUBBER, VIBRATION PROOF
79 3-839-640-00 CUSHION
80 3-831-441-11 CUSHION (F)
81 * 4-035-691-01 CLOTH, VIBRATION PROOF
82 4-051-735-22 PIECE A (75), CONV. CORRECT
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
75
53
54
55
58
59
61
62
71
73
72
81
74
80
79
70
57
60
69
78
68
67
66
63
64
65
51
53
52
56
PSW3 x 10
7-682-949-09
82
77
76
79
To Next Page
