2-4
S MIC Chassis

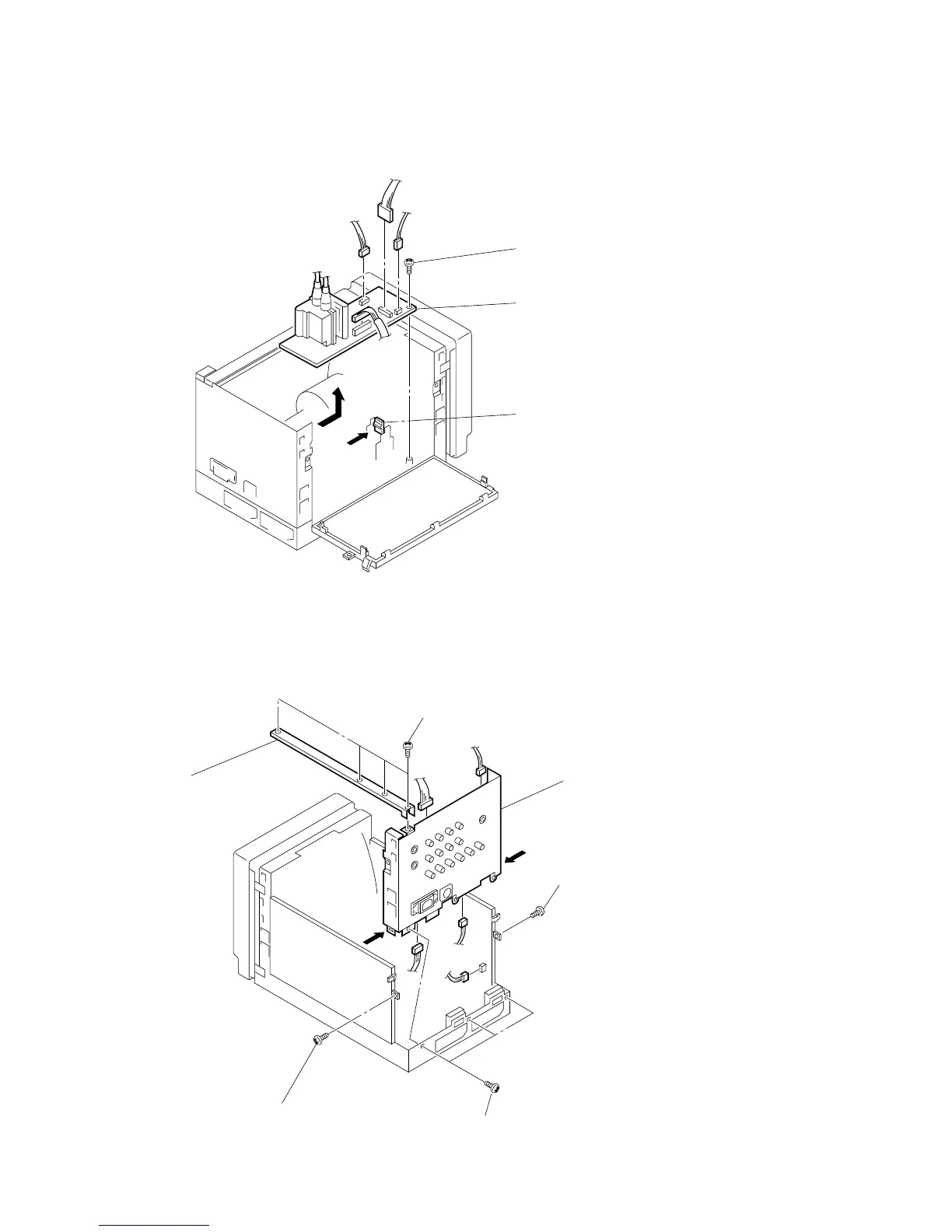

2-2-5. P Board Removal
2-2-6. Rear Assembly Removal
3 Remove the P board.
1 Remove the screw (BVTP3 x 12).
2 Unhook the claw.
CN805
CN802
CN801
CN803
1 Remove the four screws (BVTP3 x 8).
3 Remove the screw (BVTP3 x 8).
5 Remove the three screws (BVTP3 x 12).
4 Remove the screw (BVTP3 x 8).
6 Remove the rear assembly.
2 Remove the center frame.
CN402
CN401
CN404
CN508
CN403
Push.
Push.
