Sony HT-NT3 Service Manual

HT-NT3
7
MODEL IDENTIFICATION
Distinguish by Part No. on the rear side of a main unit.
– Rear view –
Part No.
Model Part No.
US, CND
4-558-893-1[]
AEP
4-558-893-3[]
UK
4-558-893-4[]
RU
4-558-893-5[]
E3
4-558-893-6[]
EA
4-558-893-7[]
SP
4-558-893-8[]
AUS
4-558-894-0[]
TW
4-558-894-2[]
LA9
4-558-894-6[]

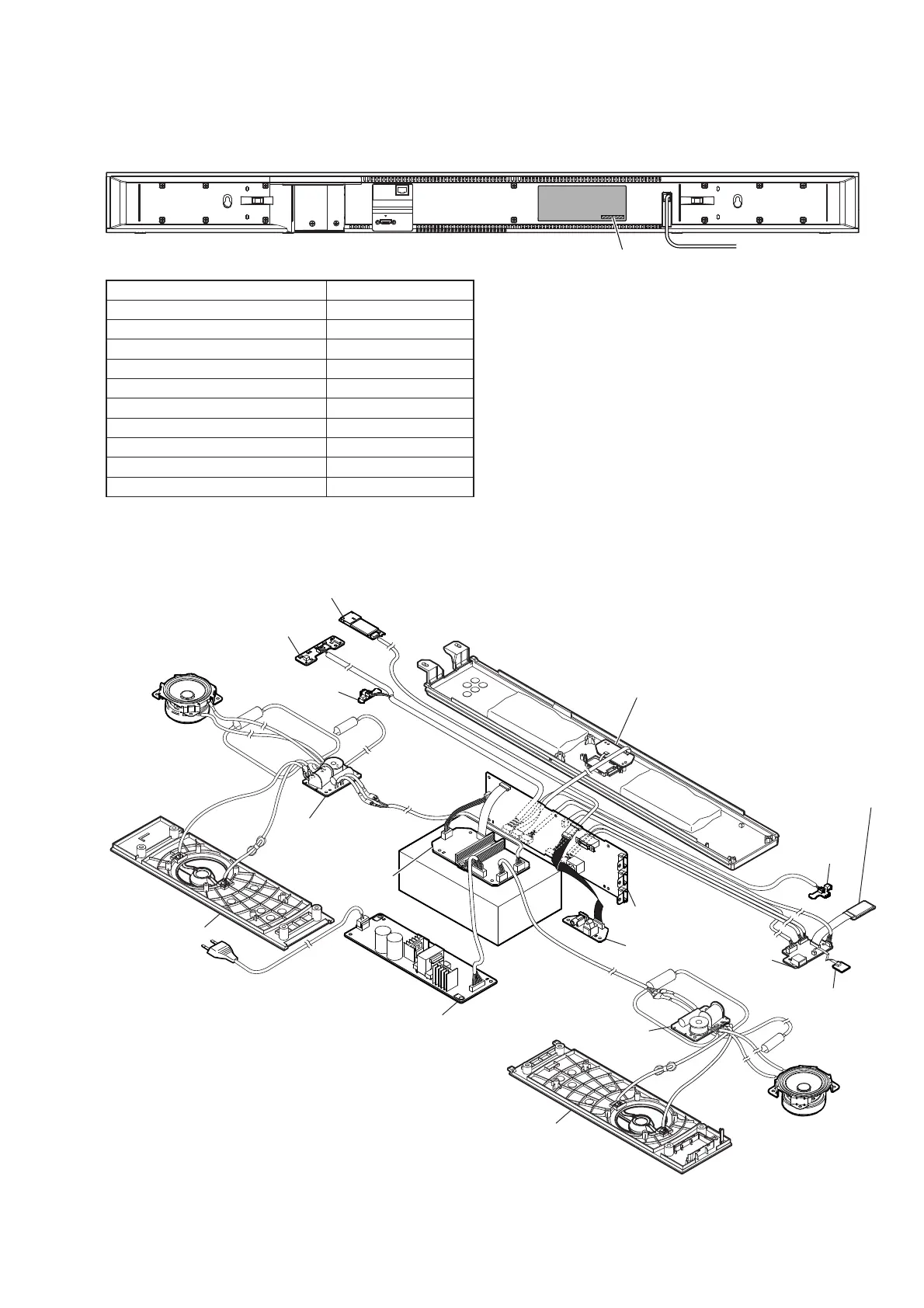

SERVICE POSITION
panel, front (right)
panel, front (left)
REGULATOR, SWITCHING (3L405W)
MOUNTED PWB (left)
IR TXL board
IR TXR board
RC-S730 (WW)
RF MODULATOR
(WS001)
KEY board
CARD WLAN/BT COMBO
OLED CHUKEI board
MOUNTED PWB (right)
AMP board
AUDIO IO board
WS CHUKEI board
MB-1407 board
Ver. 1.1
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240V AC area in E model
EA : Saudi Arabia model
LA9 : Latin-American model
RU : Russian model
SP : Singapore model
TW : Taiwan model

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
