Sony HT-NT3 Service Manual

HT-NT3
6

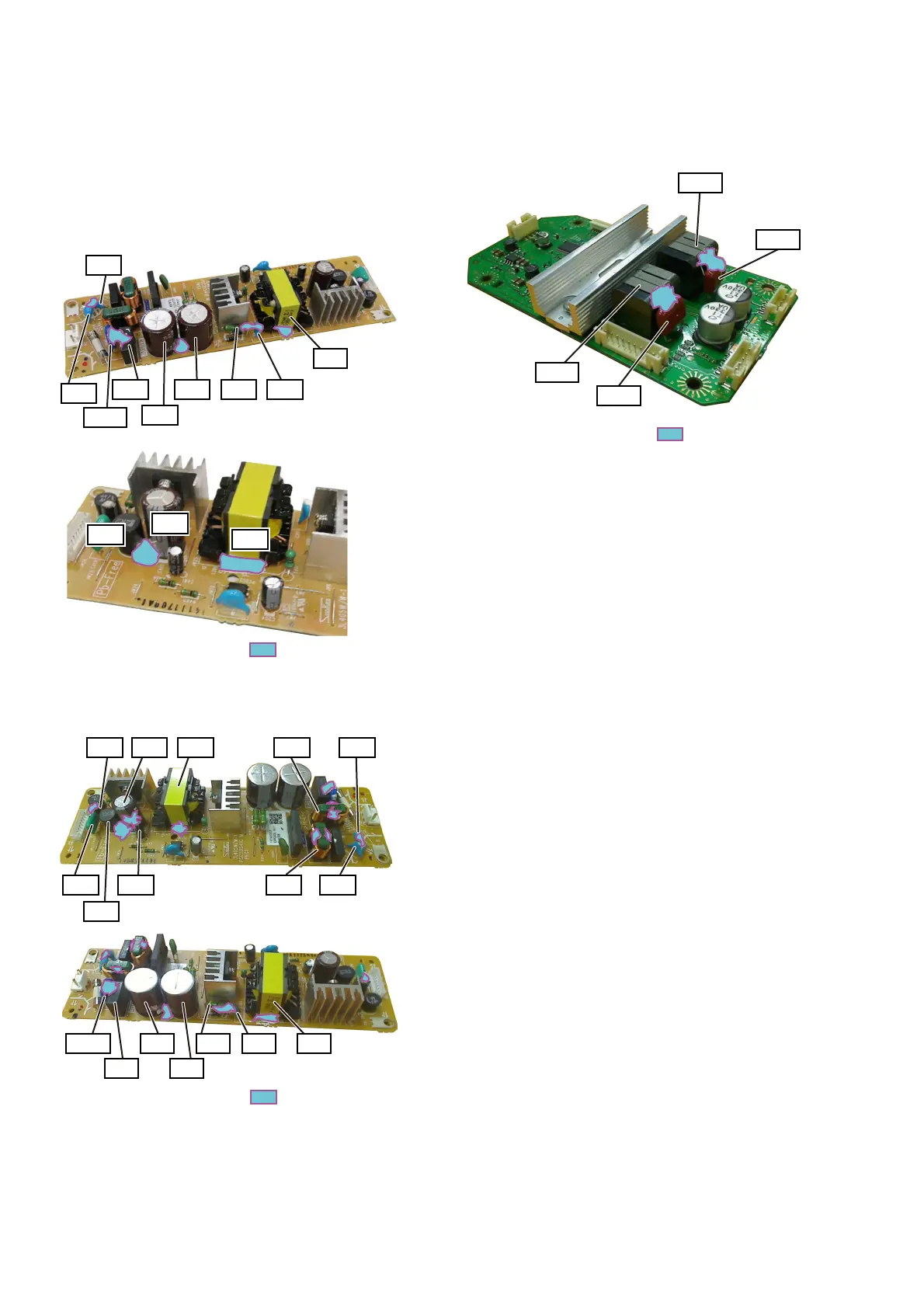

• Parts position
1. SWITCHING REGULATOR (3L405W) board (page 6)
2. AMP board (page 6)
1. SWITCHING REGULATOR (3L405W) board
– SWITCHING REGULATOR (3L405W) Board
(EXCEPT AEP, UK, RU, AUS) (Component Side) –
*
The portion which applies bond:
L401
C402
T201
T201
C211C207
C201
C101
C102
C103
NR101
R208
– SWITCHING REGULATOR (3L405W) Board
(AEP, UK, RU, AUS) (Component Side) –
*
The portion which applies bond:
T201C211R208
C207C101
C201NR101
L401
C408 C461 L102 C103
C465 C402 T201 L101 C102
2. AMP board
– AMP Board (Component Side) –
*
The portion which applies bond:
L6007
L6008
C6078
C6079
Ver. 1.1

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
