The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
— 67 —
1
17
2
3
4
5
6
7
16
13
8
9
10
11
14
15
11
12
#2
#2
#2
#2
#2
#2
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not
supplied
CDM38-5BD24AL
FRONT PANEL

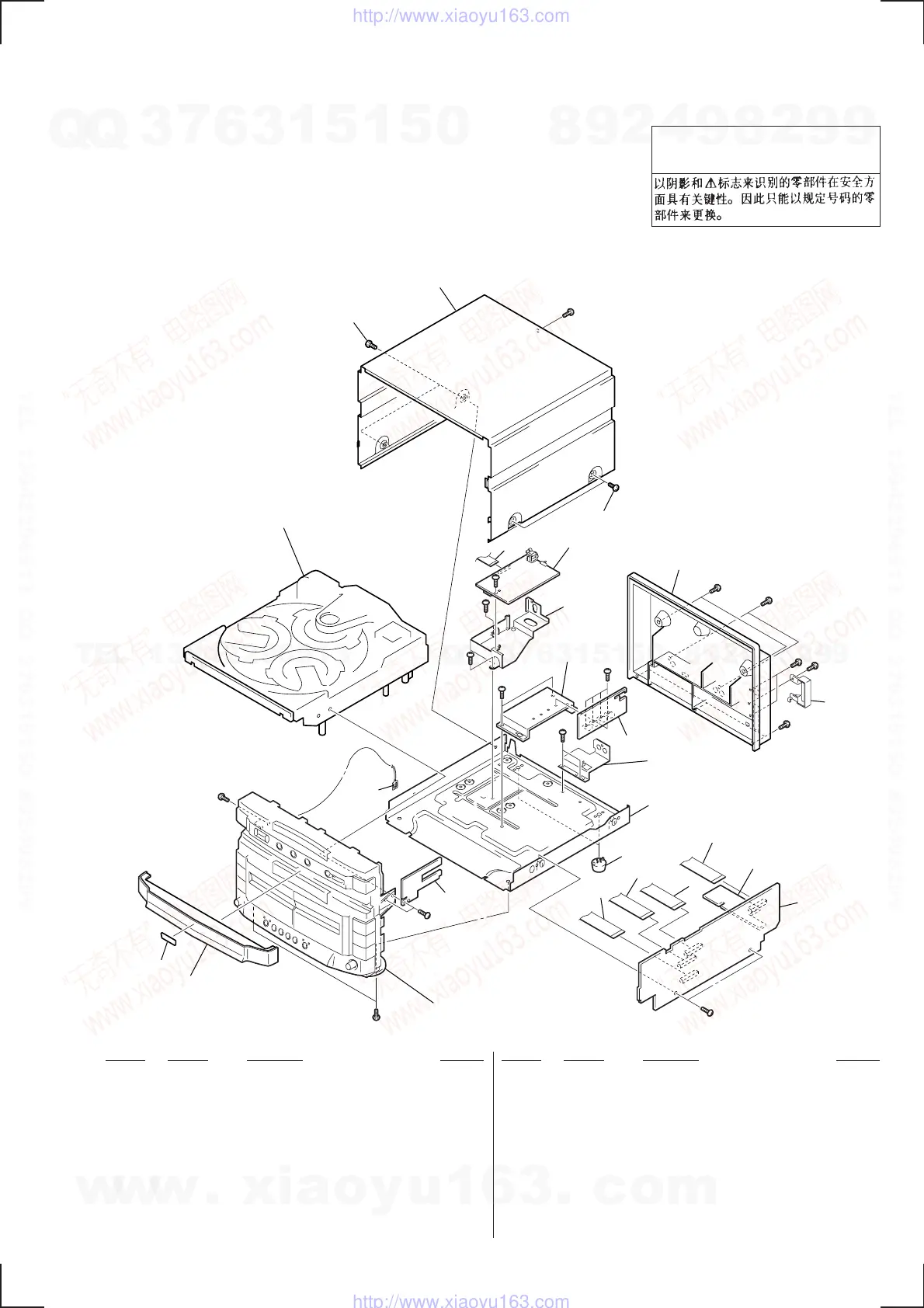

7-1. CASE AND BACK PANEL SECTION
1 4-900-871-11 LOADING PANEL
2 1-782-152-11 CORD (WITH CONNECTOR)
3 1-773-012-11 WIRE (FLAT TYPE) (15 CORE)
4 1-775-173-11 WIRE (FLAT TYPE) (17 CORE)
5 1-783-864-11 WIRE (FLAT TYPE) (13 CORE)
* 6 A-4414-710-A MAIN BOARD, COMPLETE
7 4-970-381-11 FOOT (REAR)
* 8 1-669-418-11 REGULATOR BOARD
9 4-995-189-01 COVER (SC)
* 10 4-991-349-31 PANEL, BACK
11 3-363-099-01 SCREW (CASE 3 TP2)
* 12 4-900-858-21 CASE
13 1-773-052-11 WIRE (FLAT TYPE) (17 CORE)
* 14 A-4414-827-A VIDEO BOARD, COMPLETE (IA)
* 14 A-4414-828-A VIDEO BOARD, COMPLETE (HK, MY, SP)
* 14 A-4414-829-A VIDEO BOARD, COMPLETE (TH)
* 14 A-4417-067-A VIDEO BOARD, COMPLETE (CH)
15 1-775-215-11 WIRE (FLAT TYPE) (23 CORE)
* 16 1-666-010-11 VIDEO IN/OUT BOARD
17 4-991-781-01 EMBLEM (VCD)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
• Abbreviation
HK : Hong Kong
SP : Singapore
MY : Malaysia
CH : Chinese
TH : Thai
IA : Indonesia
