Sony HTC-V5550 - Front Panel and TC Mechanism Disassembly

— 9 —

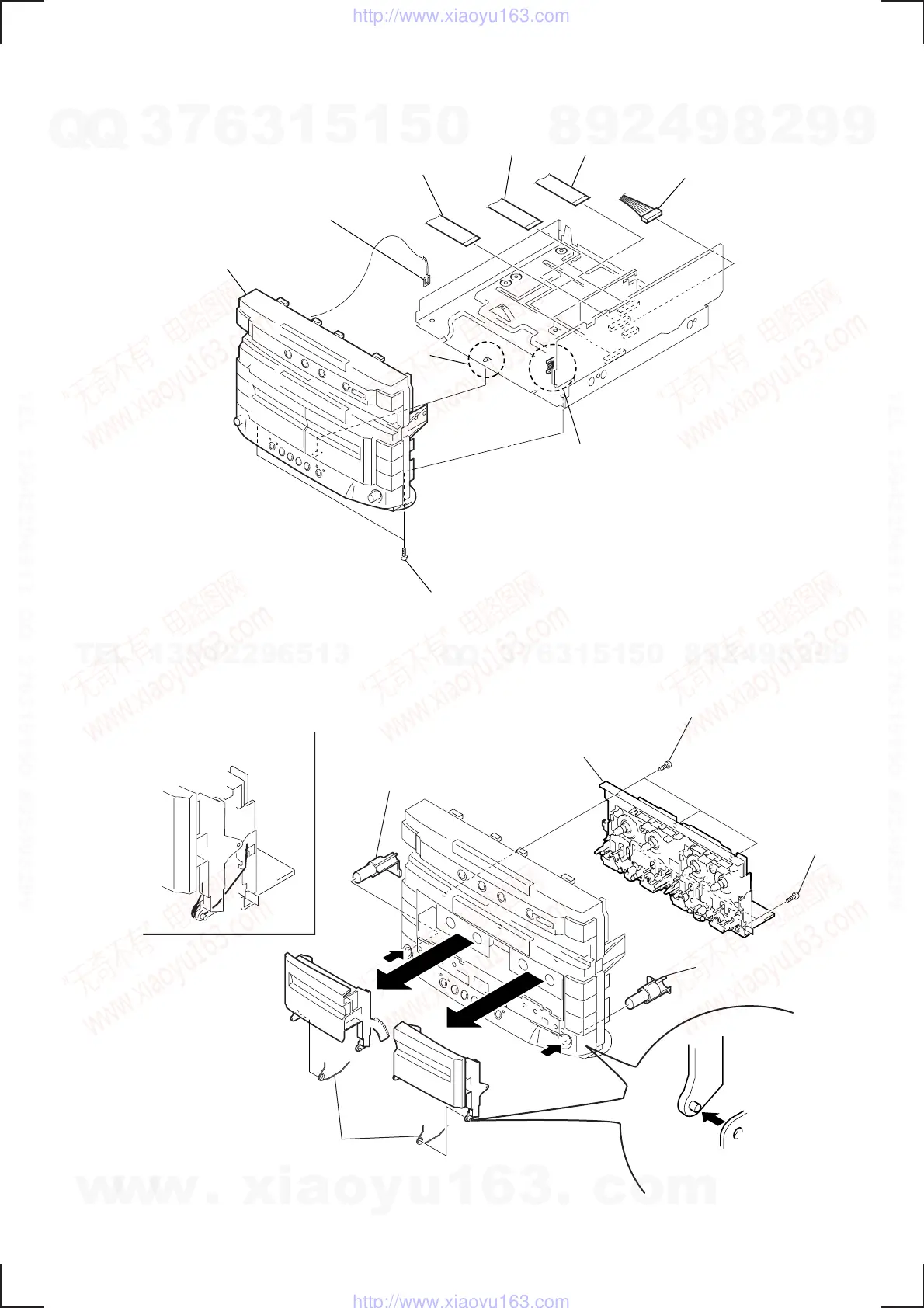

3-3. FRONT PANEL
3-4. TC MECHANISM DECK AND CASSETTE HOLDER
1 Flat type wire
(17core, CNS102)
4 Connecto
r
(CN113)
2 Flat type wire
(17core, CNS104)
5 Two screws
(BVTP3x10)
6 Lead (with connector)
7 Connector (CNP105)
Catcher
8 Front panel
(Remove the catcher)
3 Flat type wire
(15core, CNS101)
A
1
Three screws
(BVTP2.6
× 8)
2 Two screws
(BVTP2.6
× 8)
3 TC mechanism deck
4 Two springs
C
D
D
C
5
Remove the Cassette holder A
and Cassette holder B.
(Remove
C first, and remove D .)
6 Eject button A
7 Eject button B
Note for installation
Set the Spring to be at the position
in the figure.
B
(Push out in the direction
of the arrow
A .)
(Push out in the direction
of the arrow
B .)
