— 68 —
51 4-900-890-01 SPRING (L)
52 X-4950-014-1 CASSETTE HOLDER (A) ASSY
53 4-900-891-01 SPRING (R)
54 X-4950-015-1 CASSETTE HOLDER (B) ASSY
55 X-4950-222-1 FRONT PANEL ASSY
56 X-4950-013-1 ESCUTCHEON (TC) ASSY
57 X-4950-223-1 ESCUTCHEON (CD) ASSY
58 4-962-708-11 EMBLEM (4-A), SONY
59 4-900-881-01 BUTTON (EJECT A)
60 4-900-882-01 BUTTON (EJECT B)
61 4-951-620-01 SCREW (2.6 × 8), +BVTP
51
53
52
54
55
56
67
57
58
59
60
61
62
63
64
65
65
66
61
61
61
61
61
61
68
68
71
69
70
TCM-230AWR2/230PWR

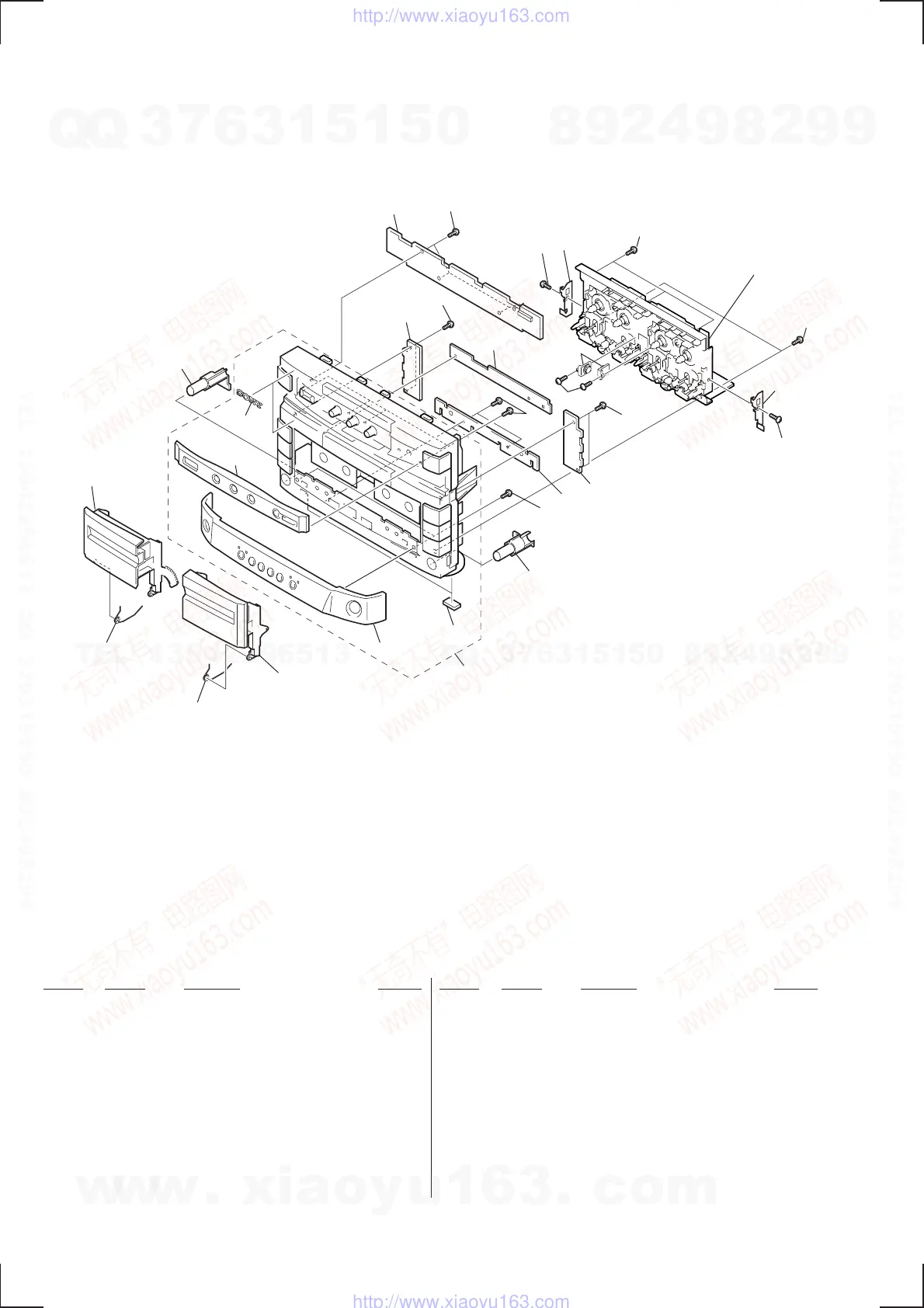

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 62 1-669-421-11 TC (P) BOARD
* 63 1-669-423-11 TC (B) BOARD
* 64 1-669-419-11 TC LED BOARD
* 65 1-669-422-11 TC (A) BOARD
66 4-210-045-01 DAMPER
67 4-977-358-11 CUSHION
68 3-019-456-01 SCREW, STEP
69 4-900-888-01 EJECT (LEVER-L)
70 4-900-889-01 EJECT (LEVER-R)
* 71 1-669-420-11 CD (P) BOARD
