Sony KDF-46E2000 - Lamp Driver Fan Removal

KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
20
Lamp duct cover
Note position of wires
Note: Watch for
fan grommets
NOTE:
Reinsert the
fan grommets
when replacing
the fan
2
3
4
5
6
1
1

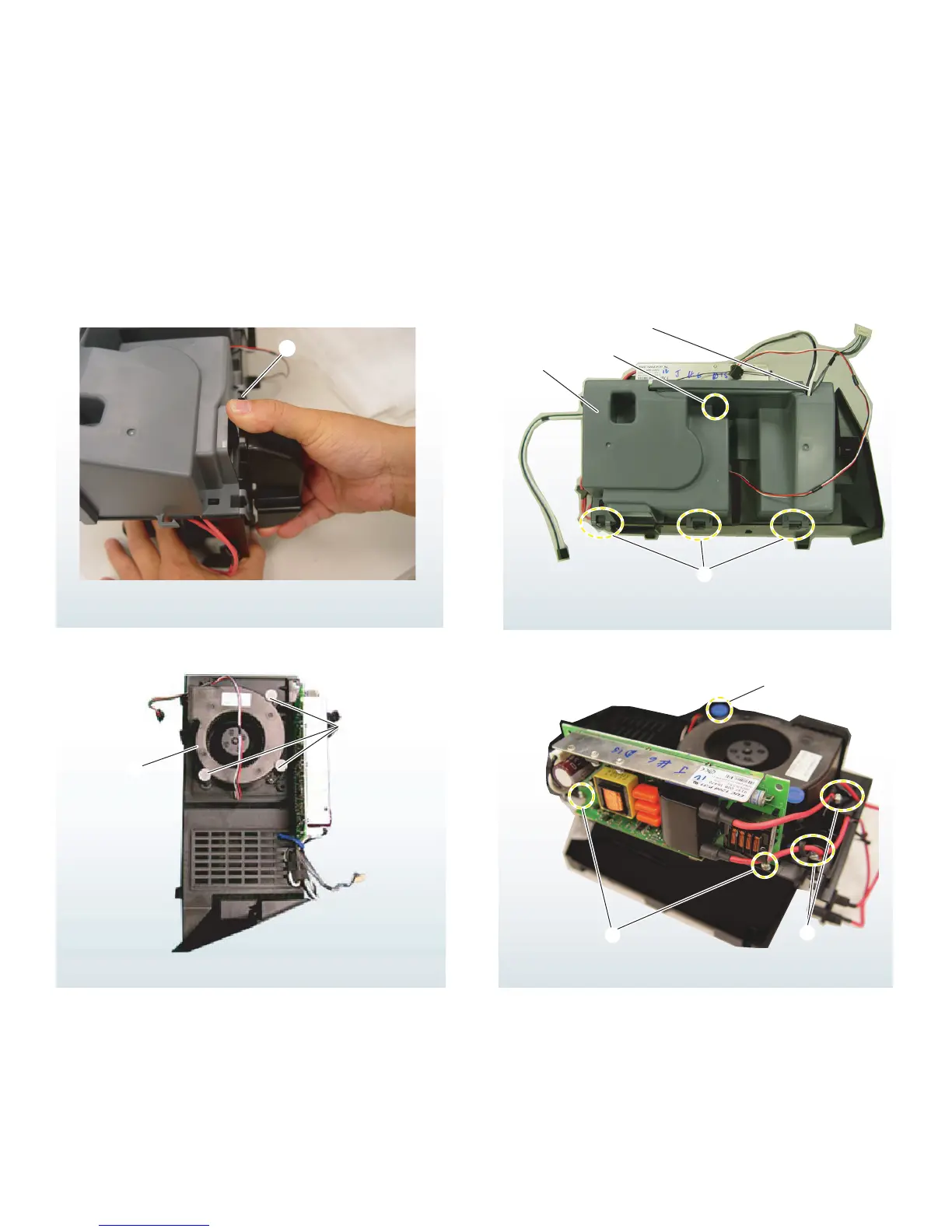

From the inside of the assembly, release the 3 claws
securing the fan duct, then remove the fan duct by grasping
as shown.
2
Remove 1 screw.
3
Release 3 clips to detach cover.
4
Remove Fan.
5
Release wire from wire holders.
6
Remove 2 screws.
1-6-2. LAMP DRIVER FAN REMOVAL
